1" Low Lead Bronze Full Port Press Ball Valve

Roll over image to zoom in Click on image to zoom

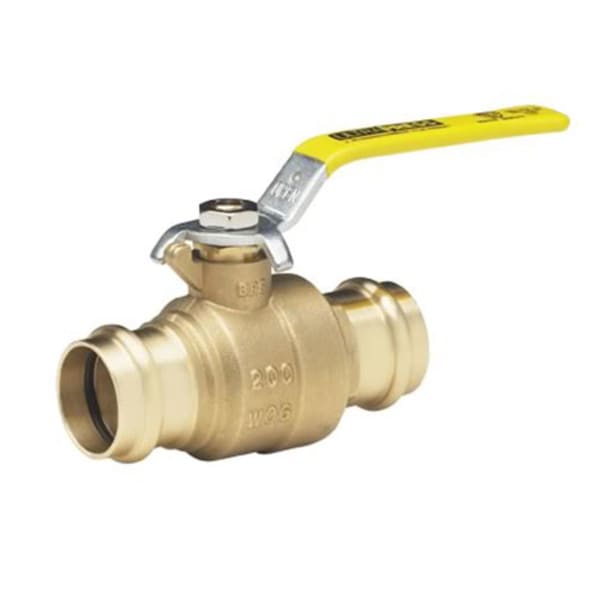

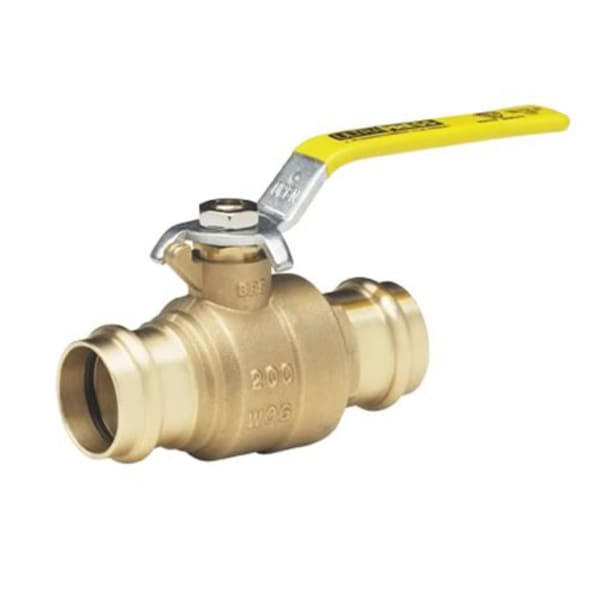

Milwaukee Valve UPBA-480B-100 1" Low Lead Bronze Full Port Press Ball Valve

Name: Milwaukee Valve UPBA-480B-100 1" Low Lead Bronze Full Port Press Ball Valve
Brand: Milwaukee Valve
SKU: MLWV-UPBA-480B-100
Price: 65.75 USD
Availability: InStock

Milwaukee ValveSKU: MLWV-UPBA-480B-100

Price:

$65.75

Stock:

In stock (302 units), ready to be shipped

Quantity:

Usually ships in 1–2 business days.

Questions? Call (404) 678-9908 or chat with us.

Need 10+ or a project quote? Request a quote · Pros: open a trade account

Ships from Seattle, WA · 30-day returns · Manufacturer warranty

Shipping details

Shipping weight: 1.4 lb

⚠ WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Product Size	1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3", 4"
End Connection	Press X Press
ANSI/Pressure Rating	200 psig, 250 psig, 250 psig @ 250 Degrees F
Material	Lead Free Brass
Body Style	Two – Piece
Port	Full
Ball	Chrome Plated
Seat Material	PTFE
Operator	Lever Handle

Milwaukee Valve UPBA-480B-100 is a 1" full port low lead press ball valve.

Ball valves give fast quarter-turn shutoff with a tight seal, making them a common choice for water, hydronic and general service isolation. Press ends install with a compatible press tool and jaws, with no soldering or open flame.

When selecting this valve, match the 1" nominal size and confirm the seat and trim materials suit the fluid and temperature. Low lead construction is intended for potable water applications. It is part of the Milwaukee Valve line for plumbing and HVAC.
