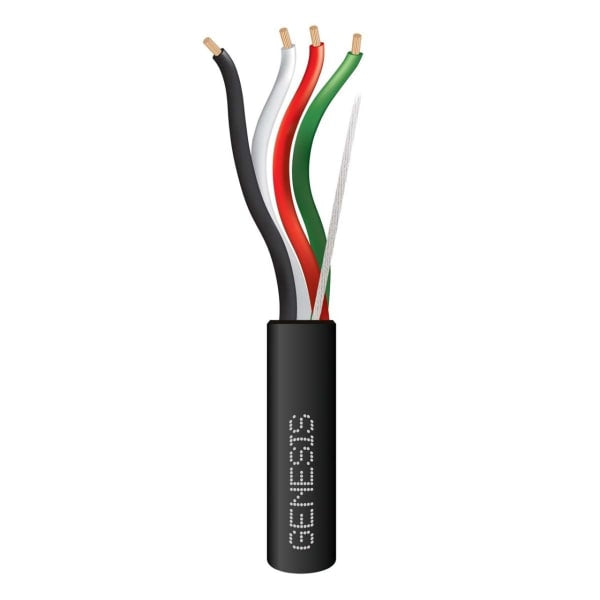

The Southwire 10700108 is Genesis® Mini Split Cable, Tray: a 14 AWG, 4-conductor stranded copper cable with THHN insulated conductors and a black PVC jacket, Type TC-ER-JP, rated 600V. It is the power and communication cable run between the outdoor and indoor units of a ductless mini-split system.
Key features
- Four 14 AWG, 7-strand bare copper conductors color coded black, red, white and green
- Can be installed in-wall without conduit in one- and two-family dwellings (2017 NEC and later)
- Direct burial rated, with or without conduit
- Sunlight resistant
Specifications
-
Brand: Southwire (Genesis®)
-
Manufacturer part number: 10700108
-
Construction: 14 AWG, 4 conductors, stranded, unshielded
-
Insulation: THHN
-
Jacket: PVC, black
-
Cable type: TC-ER-JP
-
Voltage rating: 600V
-
Temperature rating: -20°C to 90°C dry, 75°C wet
-
Standard: UL 1277 (Electrical Power and Control Tray Cables); REACH/RoHS compliant
-
Length: 250 ft
-
Nominal weight: 95 lb per 1,000 ft
Check the mini-split manufacturer's wiring diagram for the conductor count and gauge it calls for, and install to the NEC and local code.
