| Size | 14 in. diameter |
| Voltage | 24V |
| Shape | Round |
| Application | Zone Damper |
| Damper Type | Single-blade, round |
| Motor or Actuator Mounting | Side or Top |
| Motor | Power closed, spring open |
| Motor Timing | 30 seconds power open/10 seconds spring return |
| Wires to Motor | Terminals: M1-Power; M6 Common; M4 (optional)-LED indication |
| Other Motor Information | Simplified range stops |
Description

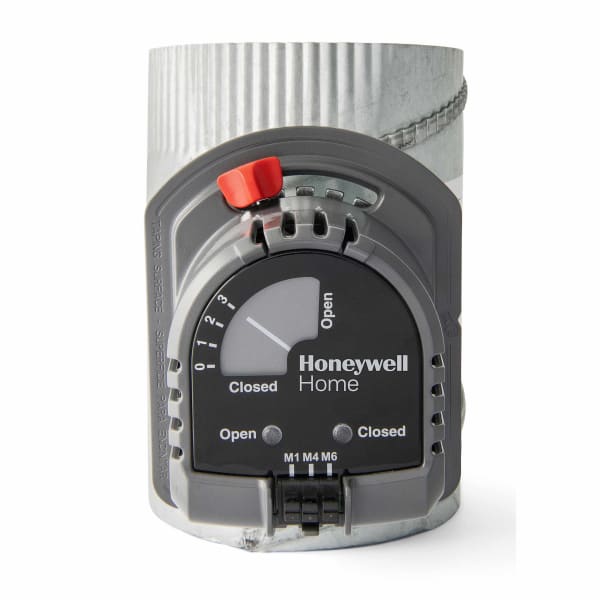

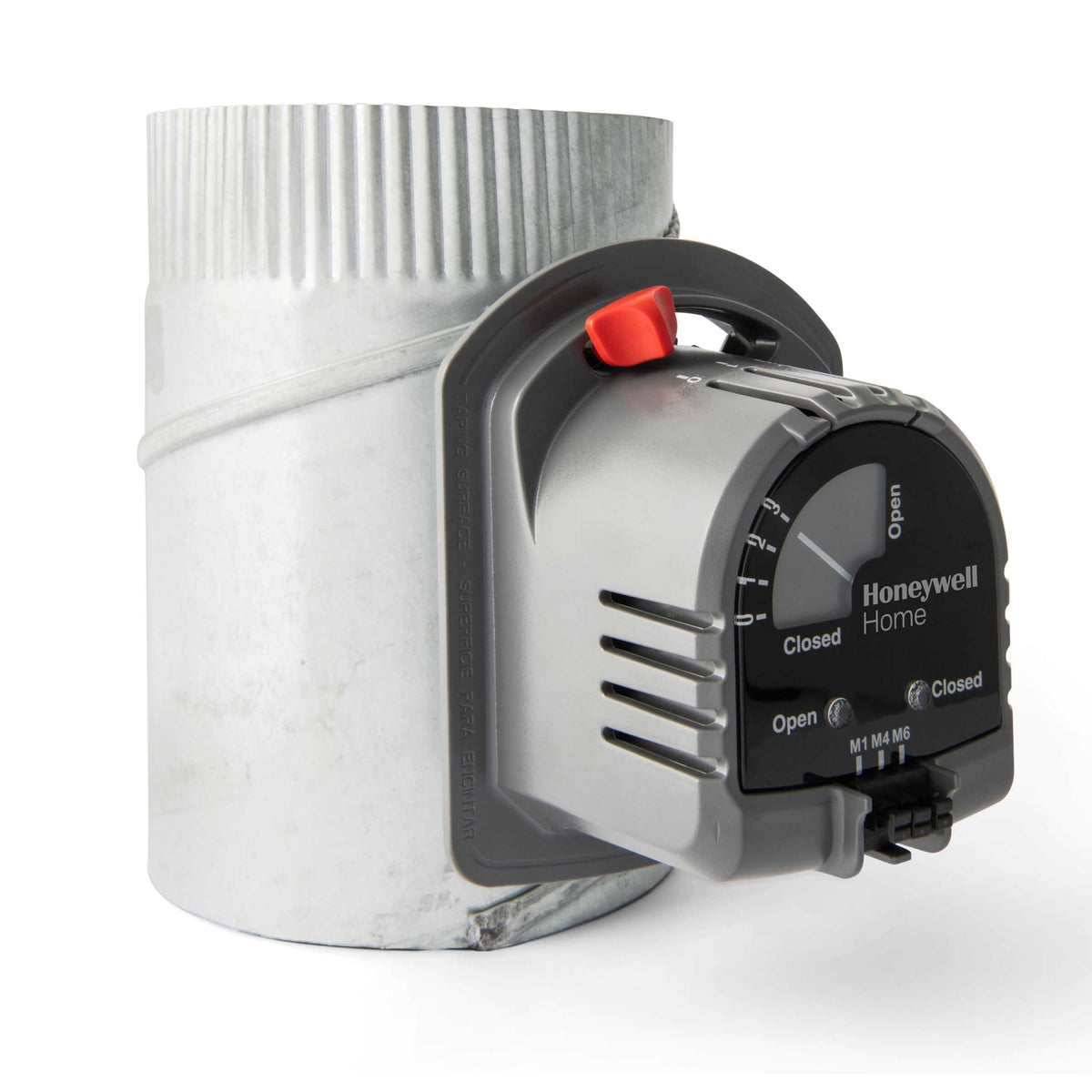

The ARD14TZ is an automatic round zone damper from Resideo (Honeywell Home), 14 in diameter, 24 V.
In a forced-air zoning system the damper is the moving part. The zone panel opens the dampers for the zones that are calling, keeps the rest shut, and runs the equipment — so one furnace serves an upstairs that wants cooling and a basement that wants nothing without either room getting the other one’s air.
Power closed, spring open. The actuator drives the blade shut and a spring returns it open, so a damper that loses power or loses its actuator fails open. The zone may lose control, but the blower never ends up pushing against a duct that is sealed off — which is the failure that breaks things.
Size it by duct diameter, and count the total 24 V load before adding dampers to an existing panel. Every actuator draws while it drives, and a transformer that was adequate for three zones is not automatically adequate for five.
The actuator mounts side or top, which is what makes it installable in a joist bay where the pipe can only be reached from one side.
- Brand: Resideo (Honeywell Home)
- Manufacturer Part #: ARD14TZ/U
- Type: Automatic round zone damper
- Size: 14 in diameter
- Shape: Round
- Voltage: 24 V
- Damper type: Single-blade, round
- Actuator mounting: Side or Top
- Motor: Power closed, spring open
- Terminals: M1-Power; M6 Common; M4 (optional)-LED indication
- UPC: 085267502573
- Category: Zone Dampers
