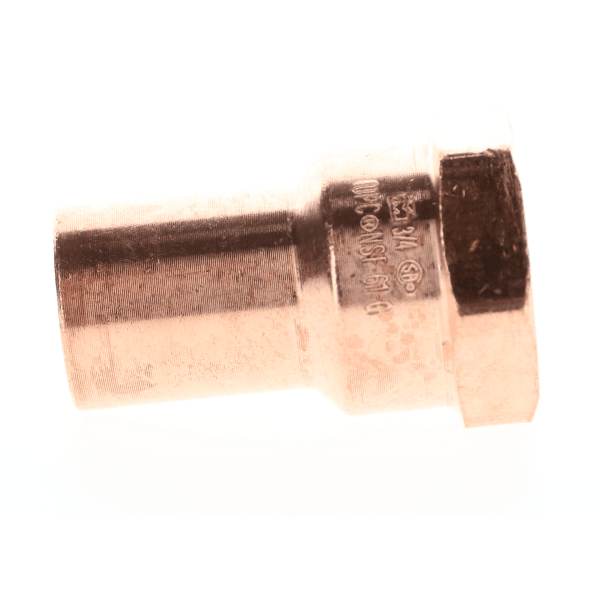

Mueller Streamline PF 01546 3/4" Copper Press Fittings - Fitting Female Adapter Ftg x FPT

Mueller Streamline PF 01546 is a 3/4" fitting female adapter for copper tube, FTG x FPT (FTG = fitting-size end (slides into another fitting's socket), FPT = female pipe thread).

An adapter changes the connection type to a female pipe thread.

Streamline PRS copper press fittings make a permanent joint with a press tool and the matching copper jaw, with no flame and no solder. They are listed to ASME B16.51 and certified to NSF/ANSI 61 and 372 for drinking water, and are used on potable water, hydronic heating with glycol, chilled water and compressed air. The tube has to be cut square, deburred and fully inserted to the depth mark before pressing.

Specifications

• Brand: Mueller Streamline
• Manufacturer Part #: PF 01546
• Size: 3/4"
• Type: Fitting Female Adapter
• Connections: FTG x FPT
• Material: Copper, EPDM sealing element
• Standards: ASME B16.51, IAPMO PS-117, NSF/ANSI 61 and 372
• Temperature: -20°F to 250°F
• Tube: ASTM B88 Type K, L or M copper
• UPC: 685768399087
• Shipping Weight: 0.15 lb
• Category: Press Fittings - Copper (CTS)
