3/4 in DN20 Pex Connection Pressure Regulating Valve

Roll over image to zoom in Click on image to zoom

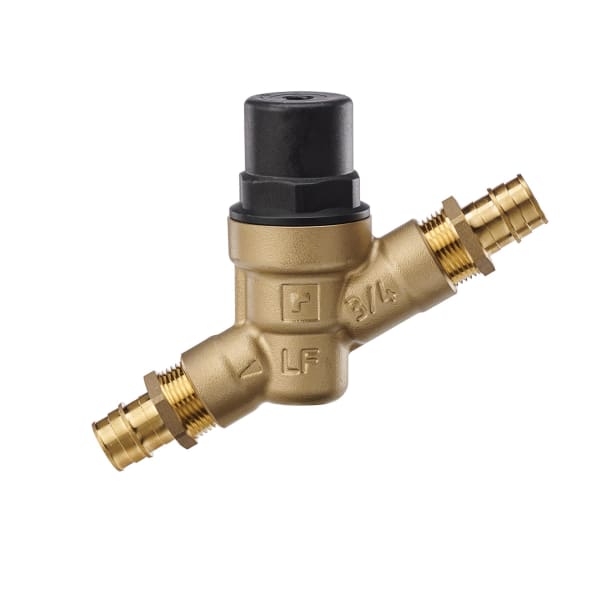

Resideo DS05-101-PEX-LF/U 3/4 in DN20 Pex Connection Pressure Regulating Valve

Name: Resideo DS05-101-PEX-LF/U 3/4 in DN20 Pex Connection Pressure Regulating Valve
Brand: Resideo
SKU: HONE-DS05-101-PEX-LF/U
Price: 63.97 USD
Availability: InStock

ResideoSKU: HONE-DS05-101-PEX-LF/U

Price:

$63.97

Stock:

In stock (24 units), ready to be shipped

Quantity:

Usually ships in 1–2 business days.

Questions? Call (404) 678-9908 or chat with us.

Need 10+ or a project quote? Request a quote · Pros: open a trade account

Ships from Seattle, WA · 30-day returns · Manufacturer warranty

⚠ WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Pipe Size	3/4 in.
Connection Type	Pex Connesctions Threaded
Valve Type	Pressure Regulating Valve
Operating Temperature	140 F Maximum
Controlled Fluid	Potable water
Materials (Body)	Lead-free ECO BRASS®
Dimensions	6.2x4.2
CSA	Certified (B356-10)
Approvals, Others	NSF/ANSI; IAPMO
Materials (Regulator)	Fabric Reinforced Diaphragm
Materials (Interior parts)	Stainless Steel and Engineered Thermoplastics
Outlet Pressure Adjustment Range (psi)	15-80 psi
Max. Inlet Pressure Rating (psi)	250 psi
Calibrated Adjustment Dial	No
Reducing Ratio	10:1 Maximum
Union Fittings	Pex Connection
Approvals, ASSE	Certified 1003-2022
Approvals, IAPMO	Listed

The DS05-101-PEX-LF is a lead-free pressure reducing valve from Resideo (Honeywell Home), 3/4 inch, PEX connection.

A pressure reducing valve sits where the water service enters the building and holds house pressure at a set value regardless of what the street is doing. Municipal mains commonly run well above what residential fixtures are rated for, and street pressure is not constant — it climbs at night when demand drops.

Uncontrolled pressure is what shortens the life of everything downstream. Fill valves, supply lines, washing machine hoses and water heaters all fail earlier on high pressure, and most plumbing codes cap what may be delivered to fixtures. The PRV is the single component that decides whether the rest of the system lives at its rated pressure.

The PEX connection lands directly on PEX tubing without an adapter.

Lead free construction, as required for potable water in the United States.

Size the valve to the service line, not to the fixture count. An oversized PRV hunts at low flow; an undersized one starves the building at peak draw.

Brand: Resideo (Honeywell Home)
Manufacturer Part #: DS05-101-PEX-LF/U
Type: Pressure reducing valve
Size: 3/4 in
Connection: PEX
Lead free: Yes
UPC: 194159007451
Category: Pressure Reducing Valves

Full Specifications

Ambient Operating Temperature (Min)	33°F, 1 °C
Ambient Operating Temperature (Max)	140°F, 60 °C
Approvals and Standards	Lead Free Plumbing Code Compliance: The wettable surfaces contain less than 0.08% of lead by weighted average, ASSE 1003-2020 Listed, CSA B356 Listed, IAPMO Listed, NSF/ANSI 61 Compliant, NSF/ANSI 372 Compliant
Color	Bronze, Black
Connection Size	3/4 in
Connection Type	PEX Connection
Differential Pressure (Min)	14.5 psi, 100 kPa
Inlet Pressure (Max)	250 psi, 1724 kPa
Lead Free	Yes
Media Temperature (Min)	33°F, 1 °C
Media Temperature (Max)	140°F, 60 °C
Number of Connections	2
Pressure Reducing Ratio	10:1 Maximum
Product Height	4.2 in, 107 mm
Product Length	6.2 in, 157 mm
Product Weight	1.6 lb, 730 g
Product Width	2 in, 50 mm
Valve Body Material	Lead-free ECO BRASS®
Valve Body Pattern	Straight Through
Application	Indoor Potable Water, Outdoor Potable Water, Indoor Irrigation, Outdoor Irrigation
Valve Type	Pressure Regulating Valve
DN Size	DN20
Controlled Media	Water
Product Features	Screw Adjustment (1 turn) ± 7 psi (48.3 kPa)
Valve Diaphragm Material	Fabric-reinforced diaphragm
Outside Use	Yes
Number of Gauge Taps	None
