3/4" PVC SCH40 90° Elbow - Socket x MPT
Charlotte Pipe

Charlotte Pipe PVC-02306-0800 3/4" PVC SCH40 90° Elbow - Socket x MPT

Item #
PVCF-075-90MA-P
Mfr. part #
PVC-02306-0800
UPC
611942038817

Key specifications
  • TypeElbow - 90° - Socket x MPT
  • Size3/4"
  • ConnectionSocket x MPT
  • MaterialPVC SCH40
View all specifications
$2.11
Each
In stock
Estimated delivery: –

Usually ships in 1–2 business days.

  • Ships from Seattle, WA
  • 30-day returns on unused items. Details
  • Secure checkout

Shipping details

  • Shipping weight: 0.29 lb
Need help with this part?
(404) 678-9908 Chat with a product specialist Request a quote
BrandCharlotte Pipe
Manufacturer part #PVC-02306-0800
Connection TypeSocket x MPT
MaterialPVC SCH40
Size3/4"
TypeElbow - 90° - Socket x MPT
UPC611942038817

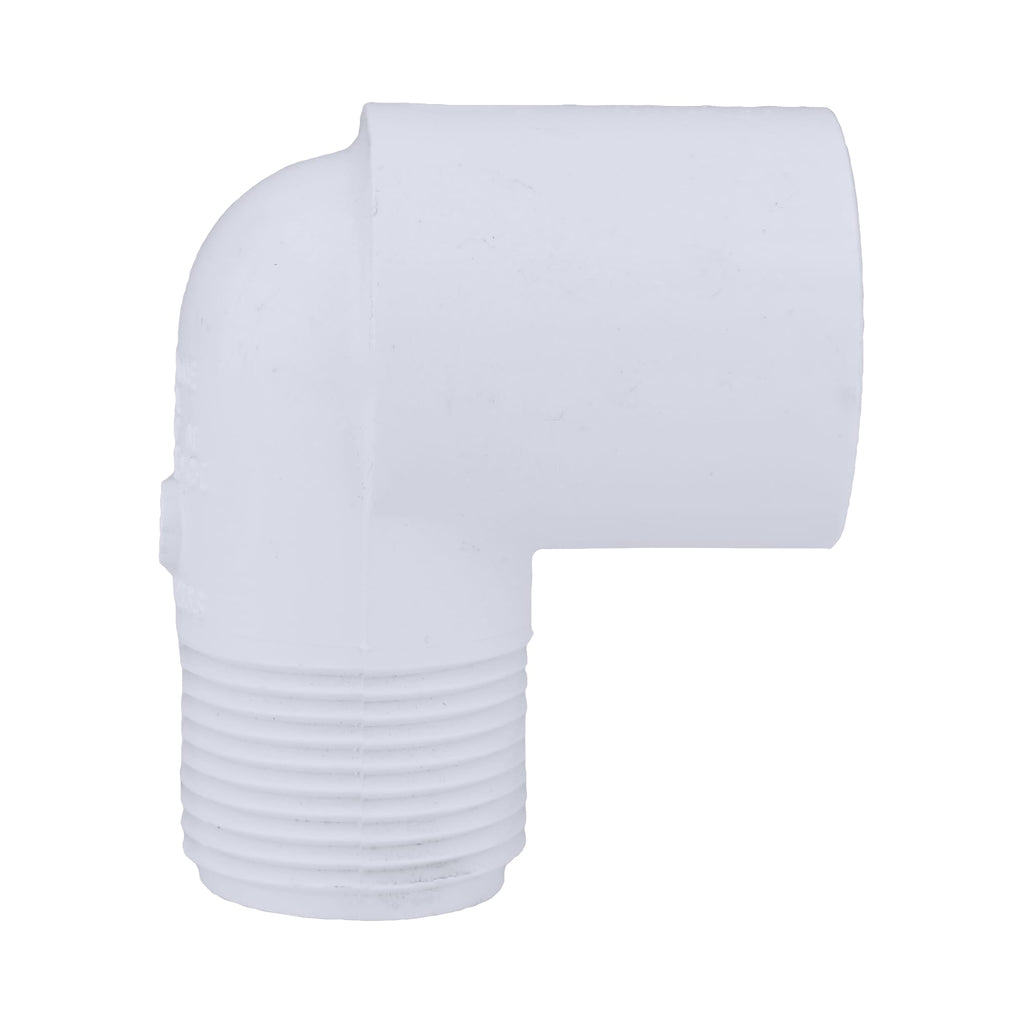

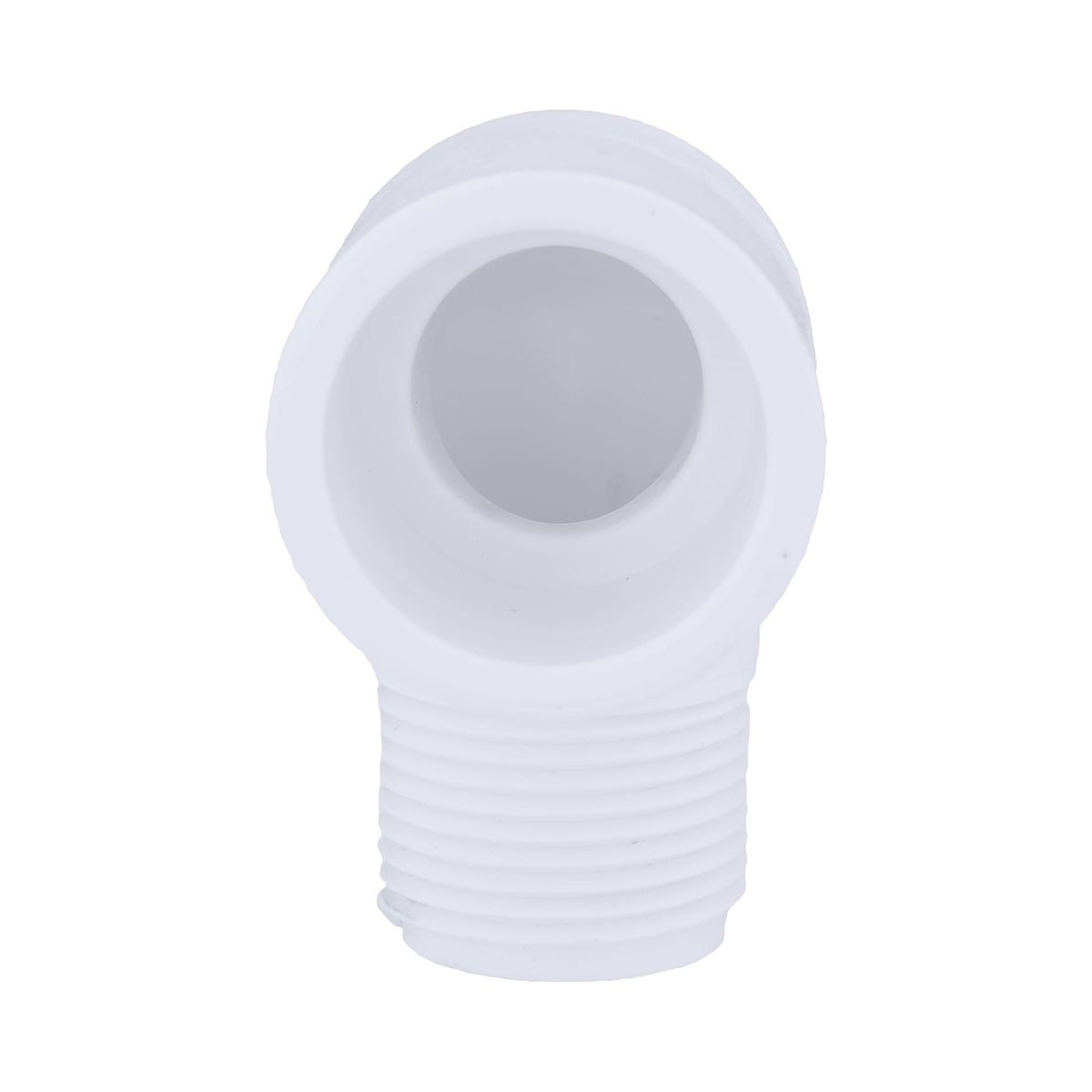

Charlotte Pipe PVC-02306-0800 is a 3/4" PVC Schedule 40 90° elbow, Socket x MPT (Socket = socket (takes the pipe); MPT = male pipe thread).

A 90° elbow turns the line a quarter turn.

Charlotte Schedule 40 pressure fittings are made to ASTM D2466 and certified to NSF 61, for pressure piping where the fluid stays at or below 140°F: water service, irrigation, pools and process water. They join Schedule 40 or Schedule 80 PVC pipe (same outside diameter) with primer and PVC solvent cement. PVC loses pressure capacity as temperature rises, so size the system to the working temperature.

Specifications

  • Brand: Charlotte Pipe
  • Manufacturer Part #: PVC-02306-0800
  • System: PVC Schedule 40
  • Size: 3/4"
  • Type: 90° Elbow
  • Connections: Socket x MPT
  • Material: PVC Type I (cell class 12454), Schedule 40
  • Standards: ASTM D2466, NSF 61
  • Temperature: 140°F max
  • Joining: Primer and PVC solvent cement
  • UPC: 611942038817
  • Shipping Weight: 0.085 lb
  • Category: PVC SCH 40 Fittings

See also: all PVC Schedule 40 fittings, primer and cement, Schedule 80 fittings, all Charlotte Pipe.

Questions about fit or compatibility? Ask our team. We usually reply within one business day.

$2.11
In stock
