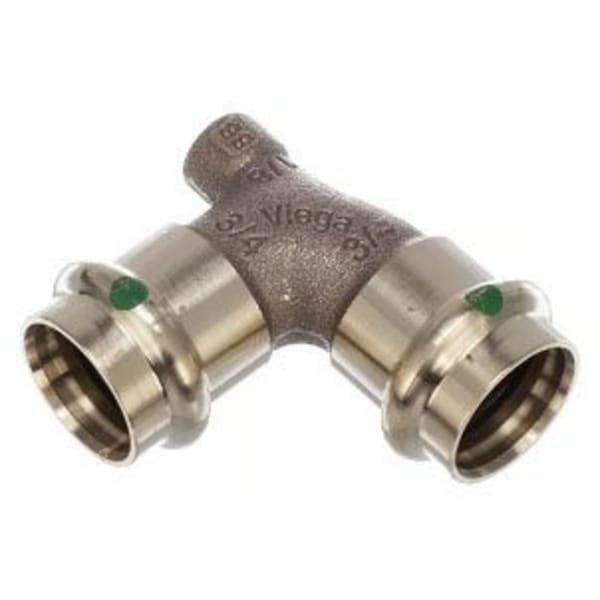

Viega 3/4" x 3/4" x 1/8" - (P-P FPT) - 90 Deg Elbow (Vent), ProPress®
Viega

Viega 79640 3/4" x 3/4" x 1/8" - (P-P FPT) - 90 Deg Elbow (Vent), ProPress®

Item #
VEGA-79640
Mfr. part #
79640
UPC
691514796406

Key specifications
  • TypeElbow - 90° (Adapter)
  • Size3/4" x 3/4" x ⅛"
  • ConnectionPress x FIP
  • MaterialBrass
View all specifications
$50.01
Each
Currently unavailable
  • Free shipping on orders $99+
  • 30-day returns on unused items. Details
  • Secure checkout

Shipping details

  • Shipping weight: 0.43 lb
  • Box size: 1.25 × 2.54 × 2.35 in
Need help with this part?
(404) 678-9908 Chat with a product specialist Request a quote
BrandViega
Manufacturer part #79640
Connection TypePress x FIP
MaterialBrass
Size3/4" x 3/4" x ⅛"
TypeElbow - 90° (Adapter)
UPC691514796406

Viega 79640 is a 3/4" x 3/4" x 1/8" ProPress 90 deg elbow (vent), P x P x FPT (P = press end for copper tube; FPT = female pipe thread).

A 90° elbow turns the line a quarter turn.

Viega ProPress joins copper tube with a press tool and ProPress jaw: no flame, no solder and no hot-work permit. The EPDM sealing element is factory installed, and Viega's Smart Connect design lets an unpressed fitting show itself during the pressure test. ProPress is approved for hot and cold potable water, hydronic heating with glycol, chilled water, compressed air and non-medical gases.

Specifications

  • Brand: Viega
  • Manufacturer Part #: 79640
  • System: ProPress
  • Size: 3/4" x 3/4" x 1/8"
  • Type: 90 Deg Elbow (Vent)
  • Connections: P x P x FPT
  • Material: Copper (UNS C12200) or Zero Lead silicon bronze, depending on the fitting
  • Sealing element: EPDM
  • Operating pressure: 300 psi max
  • Temperature: 0°F to 250°F
  • Listings: ASME B16.51, NSF/ANSI 61 and 372, IAPMO Z1117, ASTM F3226
  • Tube: ASTM B88 Type K, L or M copper
  • UPC: 691514796406
  • Category: Press Fittings - Copper (CTS)

See also: all ProPress fittings, press tools, press jaws, all Viega.

Questions about fit or compatibility? Ask our team. We usually reply within one business day.
