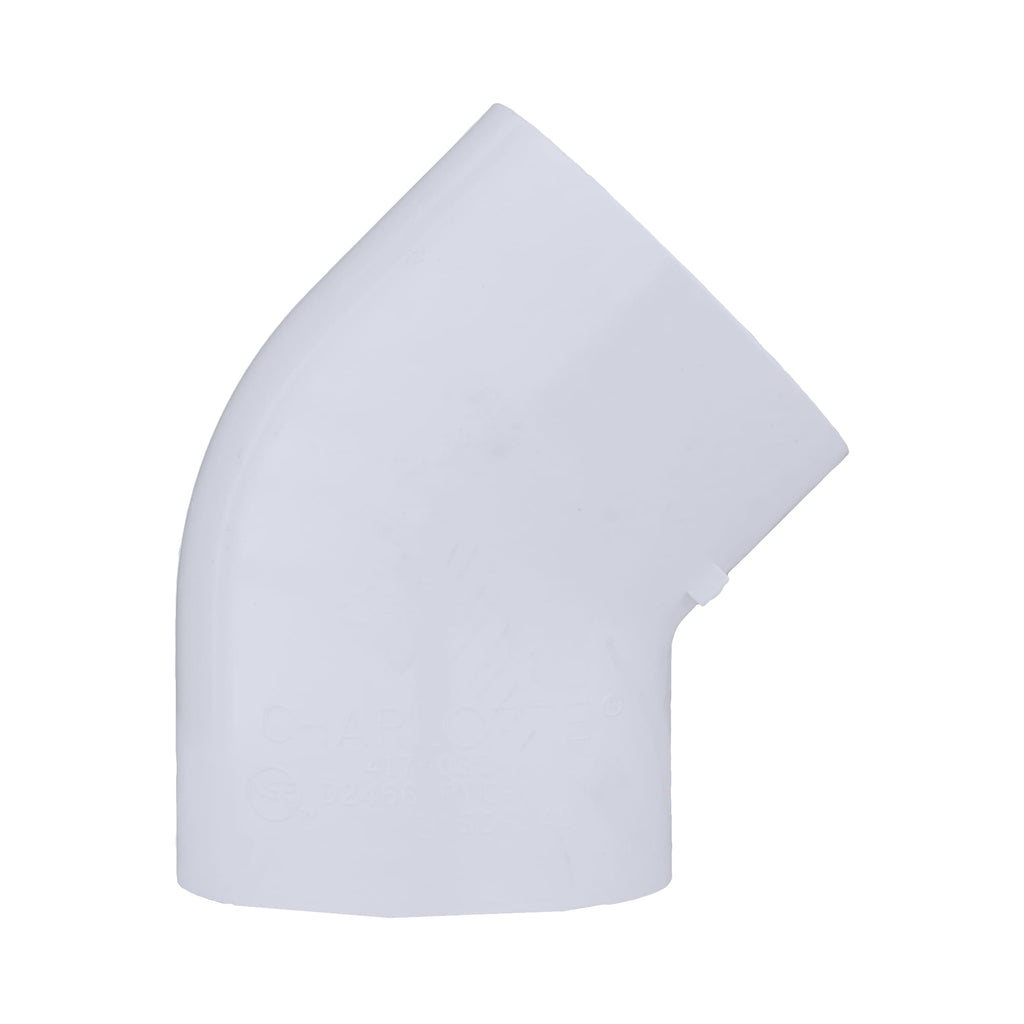

Charlotte Pipe PVC-02309-1800 3" PVC SCH40 45° Elbow - Socket x Socket

Charlotte Pipe PVC-02309-1800 is a 3" PVC Schedule 40 45° elbow, Socket x Socket (Socket = socket (takes the pipe)).

A 45° elbow makes a gentle change of direction; two of them offset a line around an obstacle.

Charlotte Schedule 40 pressure fittings are made to ASTM D2466 and certified to NSF 61, for pressure piping where the fluid stays at or below 140°F: water service, irrigation, pools and process water. They join Schedule 40 or Schedule 80 PVC pipe (same outside diameter) with primer and PVC solvent cement. PVC loses pressure capacity as temperature rises, so size the system to the working temperature.

Specifications

• Brand: Charlotte Pipe
• Manufacturer Part #: PVC-02309-1800
• System: PVC Schedule 40
• Size: 3"
• Type: 45° Elbow
• Connections: Socket x Socket
• Material: PVC Type I (cell class 12454), Schedule 40
• Standards: ASTM D2466, NSF 61
• Temperature: 140°F max
• Joining: Primer and PVC solvent cement
• UPC: 611942038886
• Shipping Weight: 0.842 lb
• Category: PVC SCH 40 Fittings

See also: all PVC Schedule 40 fittings, primer and cement, Schedule 80 fittings, all Charlotte Pipe.
