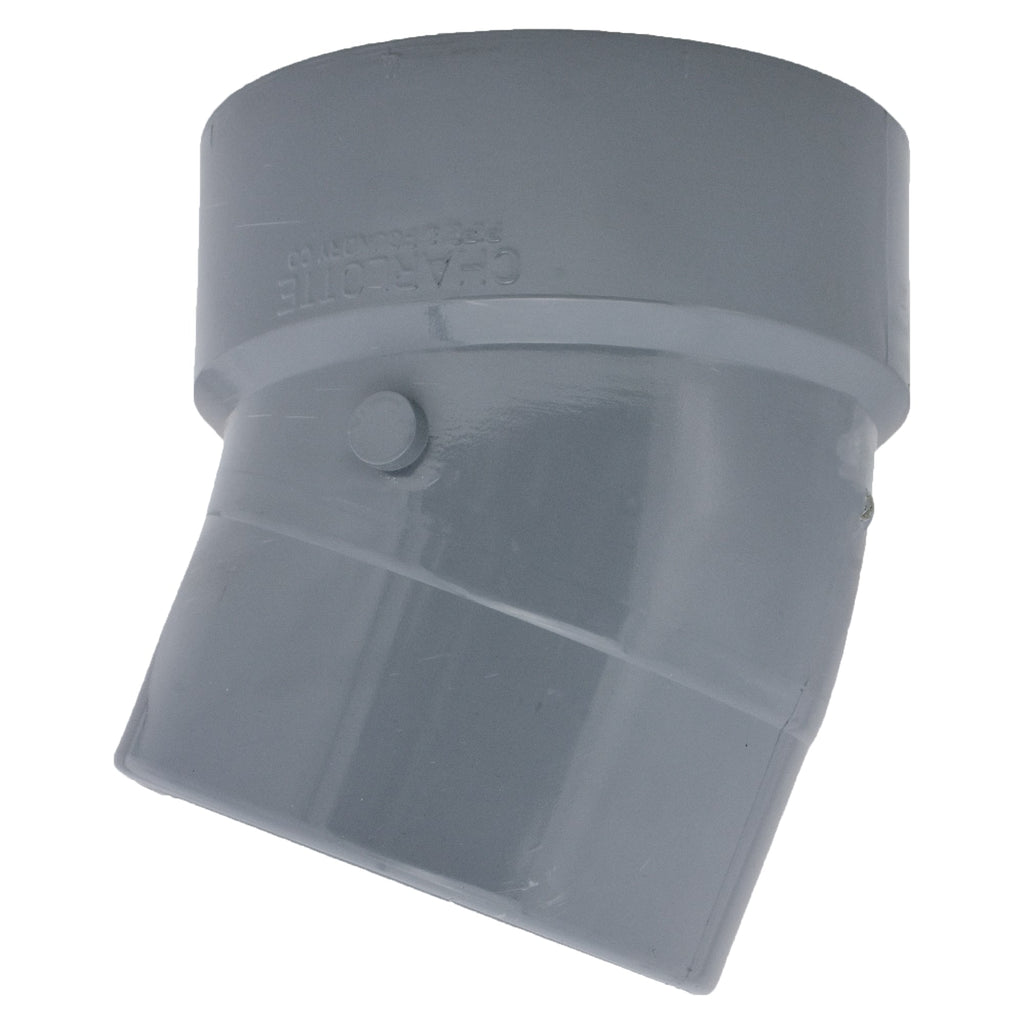

Charlotte Pipe AW-00326-0040C 4" 22-1/2 Deg Street Elbow Spigot x Hub CPVC Chemical Drainage Fitting

Charlotte Pipe AW-00326-0040C is a 4" ChemDrain CPVC 22-1/2 deg street elbow, Spigot x Hub (Spigot = spigot (pipe-size end that fits into a hub or socket); Hub = hub (socket that takes the pipe)).

A street elbow has one fitting-size end, so it goes straight into another fitting without a separate piece of tube, which makes the turn tighter and saves a joint.

ChemDrain is Charlotte's CPVC chemical waste drainage system, made to ASTM F2618 and listed by NSF for chemical waste (NSF-cw). It is used for laboratory, school and hospital drainage and similar acid and caustic waste at up to 220°F, joined with the one-step ChemDrain solvent cement.

Specifications

• Brand: Charlotte Pipe
• Manufacturer Part #: AW-00326-0040C
• System: ChemDrain CPVC
• Size: 4"
• Type: 22-1/2 Deg Street Elbow
• Connections: Spigot x Hub
• Material: CPVC (Corzan), Schedule 40 dimensions
• Standards: ASTM F2618, NSF-cw
• Temperature: 220°F max, drainage
• Joining: One-step ChemDrain solvent cement
• Category: ChemDrain Fittings
