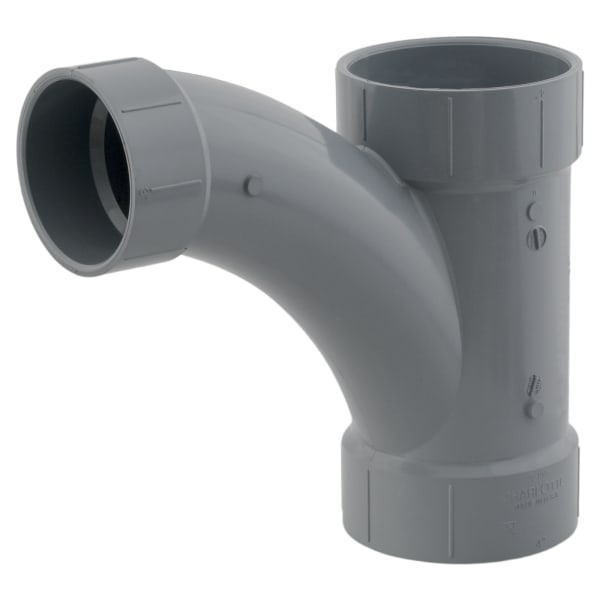

4" x 4" x 3" Combination Wye All Hub CPVC Chemical Drainage Fitting

Charlotte Pipe 4" x 4" x 3" Combination Wye All Hub CPVC Chemical Drainage Fitting

Roll over image to zoom in Click on image to zoom

Charlotte Pipe AW-00502-0422C 4" x 4" x 3" Combination Wye All Hub CPVC Chemical Drainage Fitting

Name: Charlotte Pipe AW-00502-0422C 4" x 4" x 3" Combination Wye All Hub CPVC Chemical Drainage Fitting
Brand: Charlotte Pipe
SKU: CHEM-400.300-LTTY
Price: 123.38 USD
Availability: InStock

Charlotte PipeSKU: CHEM-400.300-LTTY

Price:

$123.38

Stock:

Only 2 units left

Quantity:

Usually ships in 1–2 business days.

Questions? Call (404) 678-9908 or chat with us.

Need 10+ or a project quote? Request a quote · Pros: open a trade account

Free shipping on orders $99+ · 30-day returns · Manufacturer warranty

Shipping details

Shipping weight: 3.9 lb

⚠ WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Application	CHEMICAL WASTE
ASTM Specifications	ASTM D 1784, ASTM F 2618
Connection Type	All Hub
Material	CPVC
Maximum Working Temperature (°F)	220
Schedule	40
Size	4" x 4" x 3"
Minimum Working Temperature (°F)	32
Type	Combination Wye

Charlotte Pipe AW-00502-0422C is a 4" x 4" x 3" ChemDrain CPVC combination wye, All Hub (Hub = hub (socket that takes the pipe)).

A combination wye and 1/8 bend brings a branch in at 45° and turns it in one fitting, the usual way to join a horizontal branch into a horizontal drain.

ChemDrain is Charlotte's CPVC chemical waste drainage system, made to ASTM F2618 and listed by NSF for chemical waste (NSF-cw). It is used for laboratory, school and hospital drainage and similar acid and caustic waste at up to 220°F, joined with the one-step ChemDrain solvent cement.
