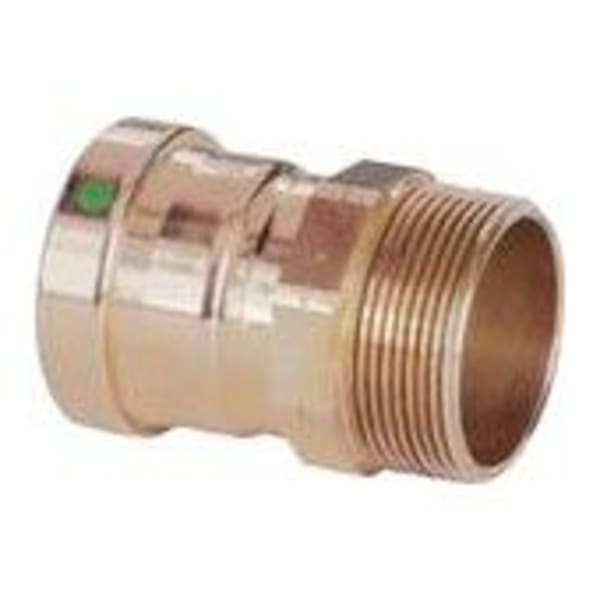

Viega 20838 4"x4" - (P-MPT) - Male Adapter, ProPress®

Viega 20838 is a 4" ProPress male adapter, P x MPT (P = press end for copper tube; MPT = male pipe thread).

An adapter makes the change from press to a male pipe thread, for a valve, fixture connection or threaded equipment.

Viega ProPress joins copper tube with a press tool and ProPress jaw: no flame, no solder and no hot-work permit. The EPDM sealing element is factory installed, and Viega's Smart Connect design lets an unpressed fitting show itself during the pressure test. ProPress is approved for hot and cold potable water, hydronic heating with glycol, chilled water, compressed air and non-medical gases.

Specifications

• Brand: Viega
• Manufacturer Part #: 20838
• System: ProPress
• Size: 4"
• Type: Male Adapter
• Connections: P x MPT
• Material: Copper (UNS C12200) or Zero Lead silicon bronze, depending on the fitting
• Sealing element: EPDM
• Operating pressure: 300 psi max
• Temperature: 0°F to 250°F
• Listings: ASME B16.51, NSF/ANSI 61 and 372, IAPMO Z1117, ASTM F3226
• Tube: ASTM B88 Type K, L or M copper
• UPC: 691514208381
• Category: Press Fittings - Copper (CTS)

See also: all ProPress fittings, press tools, press jaws, all Viega.
