5 Branches - 1 1/2 Chrome Plated Brass Manifold Assembly w/Flowmeter and ball valve

Roll over image to zoom in Click on image to zoom

MrPEX Systems 3320500 5 Branches - 1 1/2 Chrome Plated Brass Manifold Assembly w/Flowmeter and Ball Valve

Name: MrPEX Systems 3320500 5 Branches - 1 1/2 Chrome Plated Brass Manifold Assembly w/Flowmeter and Ball Valve
Brand: MrPEX Systems
SKU: MPEX-3320500
Price: 851.14 USD
Availability: InStock

MrPEX SystemsSKU: MPEX-3320500

Price:

$851.14

Stock:

Only 1 unit left

Quantity:

Usually ships in 1–2 business days.

Questions? Call (404) 678-9908 or chat with us.

Need 10+ or a project quote? Request a quote · Pros: open a trade account

Free shipping on orders $99+ · 30-day returns · Manufacturer warranty

Replaces: 3310500

Shipping details

Shipping weight: 18.0 lb
Box size: 15 × 15 × 4 in

⚠ WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Material	Stainless Steel
Type	Manifolds
Number of Branches	5
Trunk Connection	1-1/4"
Trunk Size	1-1/4"

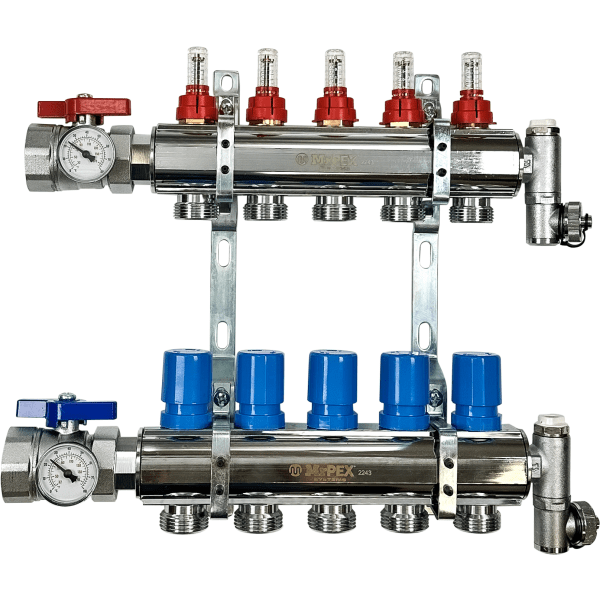

MrPEX Systems 3320500 is a 5-branch 1-1/2" chrome plated brass radiant manifold assembly with flowmeters and ball valves.

Radiant manifolds distribute heated water from the boiler or heat source to individual PEX tubing loops and collect the return. Flowmeters let the installer see and balance flow in each circuit, which helps keep floor temperatures even across rooms and loop lengths. The 1-1/2" body size should be matched to your supply and return piping and the total flow of all 5 circuits.

When sizing a manifold, count the loops in the design (5 here), confirm the loop tubing size, and choose connection assemblies that match the manifold outlets and the PEX tubing you use. Pressure test the system before pouring concrete or closing floors.
