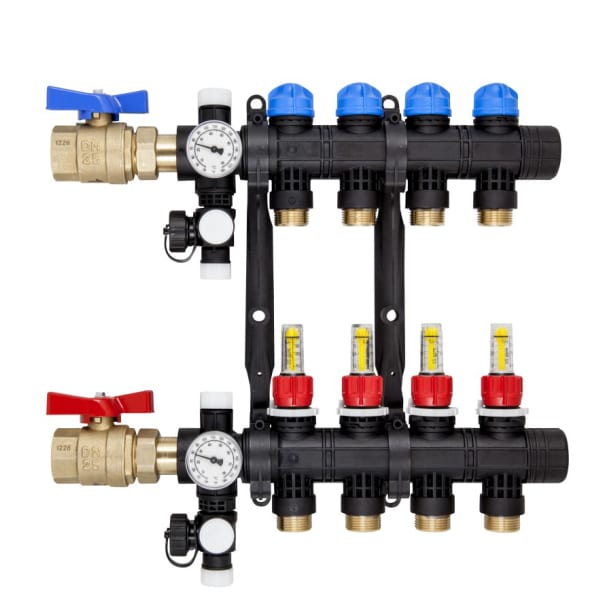

MrPEX Systems 3810500 5 Loop - Composite Manifold Valve & Flowmeter Complete Kit

MrPEX Systems 3810500 is a 5-loop composite radiant manifold complete kit with valves and flowmeters.

Radiant manifolds distribute heated water from the boiler or heat source to individual PEX tubing loops and collect the return. Flowmeters let the installer see and balance flow in each circuit, which helps keep floor temperatures even across rooms and loop lengths. The kit format provides a complete supply and return manifold for the loop count shown.

When sizing a manifold, count the loops in the design (5 here), confirm the loop tubing size, and choose connection assemblies that match the manifold outlets and the PEX tubing you use. Pressure test the system before pouring concrete or closing floors.

Specifications

• Brand: MrPEX Systems
• Manufacturer Part #: 3810500
• Type: Radiant heating manifold
• Circuits: 5 loops
• Material: Composite
• Includes: Valves and flowmeters
• UPC: 799475964343
