| Connection Type | FPT |
| Gasket Type | EPDM (Green) |
| Material | Painted |
| Size | 6" x 1-1/2" |
| Type | Coupling (Outlet) |
Description

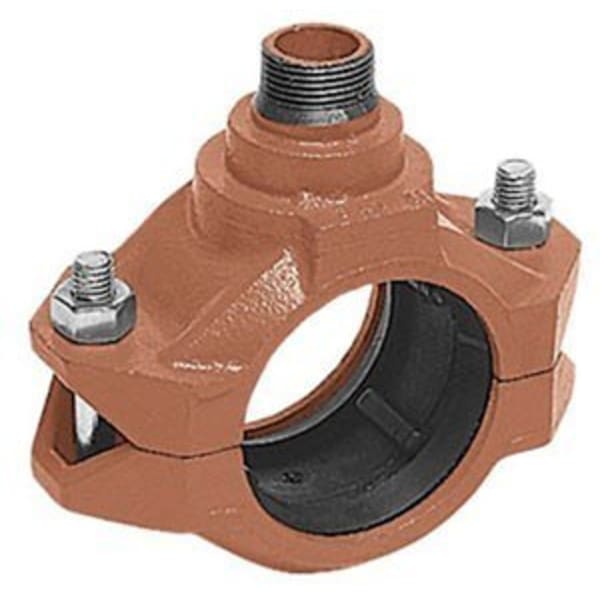

Gruvlok 7042F-600.150-E-PNTD is a 6" x 1-1/2" Figure 7042F outlet coupling with a female threaded (FPT) outlet with a painted finish, with a female threaded (FPT) end.
The outlet coupling joins two sections of grooved end pipe and forms a reducing outlet connection at the same joint, a quick way to add a gauge, drain or small branch without a separate tee. It comes with an EPDM (Green) gasket; confirm the gasket grade is compatible with your system fluid and temperature.
The painted finish suits grooved steel pipe in mechanical rooms, HVAC and fire protection systems. Use it with other Gruvlok grooved components and a gasket grade suited to your system fluid and temperature. Always follow Gruvlok installation instructions for pipe preparation, groove dimensions and bolt torque.
Specifications
- Brand: Gruvlok
- Manufacturer Part #: 7042F-600.150-E-PNTD
- SKU: GVLF-7042F-600.150-E-PNTD
- Size: 6" x 1-1/2"
- Product Type: Coupling (Outlet)
- Material / Finish: Painted
- Connection: FPT
- Outlet Connection: Female threaded (FPT)
- Gasket: EPDM (Green)
- Category: Gruvlok Fittings
See also: Gruvlok, Gruvlok Fittings.
