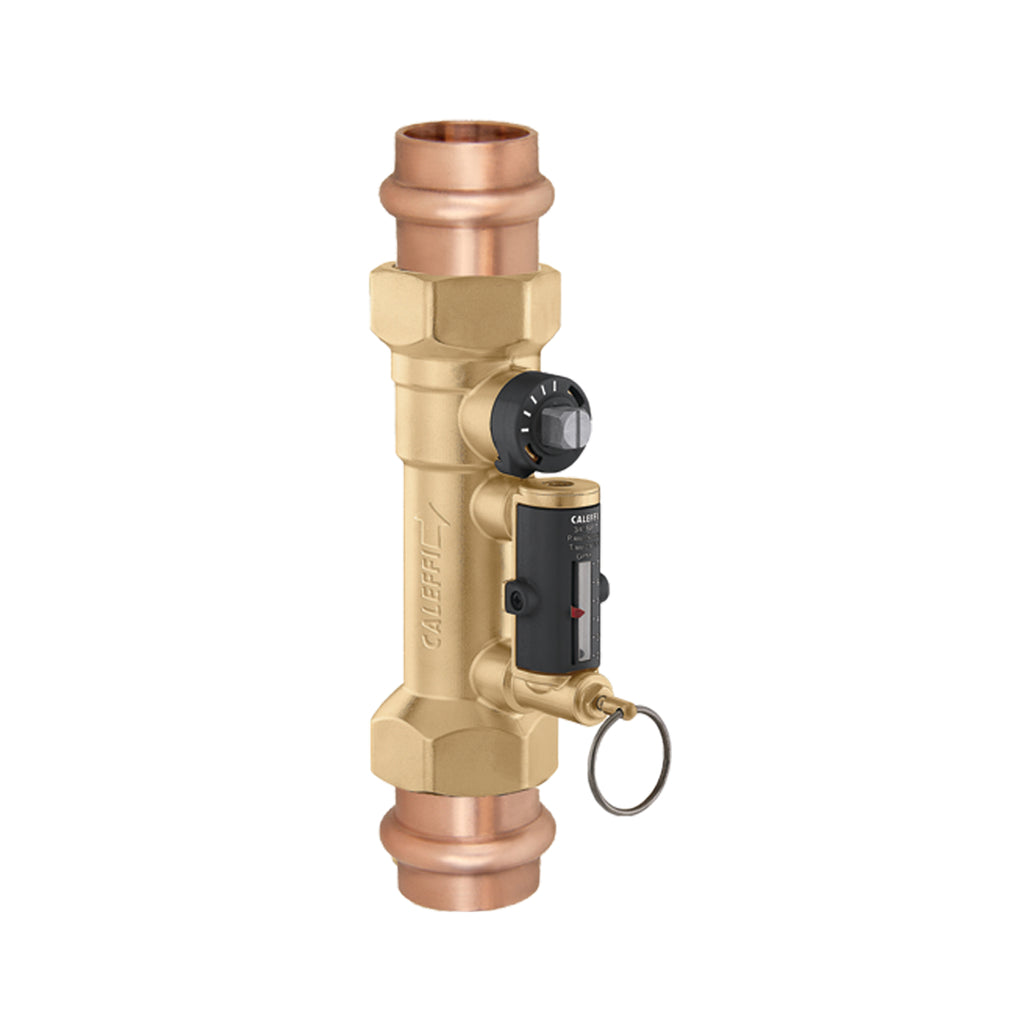

Caleffi 132552A QuickSetter Balancing Valve with Flow Meter, 3/4" NPT, 2-7 GPM

The Caleffi 132552A is a QuickSetter balancing valve with an integral flow meter, 3/4" NPT threaded connections and a flow range of 2 to 7 GPM. It lets you read and set the flow rate through a hydronic circuit directly at the valve.

QuickSetter valves combine a manual balancing valve and a flow meter in one body, so a branch, zone or terminal unit can be balanced to its design flow without separate differential pressure instruments. They are used on hydronic heating and chilled water systems.

Before ordering: choose the valve by design flow rate as well as pipe size. This model reads 2 to 7 GPM; if your circuit flow falls outside that range, select another size or flow range in the series.

Specifications

• Brand: Caleffi
• Manufacturer Part #: 132552A
• Series: QuickSetter
• Type: Balancing valve with flow meter
• Size: 3/4"
• Connection: NPT threaded
• Flow Range: 2 - 7 GPM
• UPC: 8016615299793
• Category: Balancing Valves

Documents

• Technical Data Sheet (PDF)
• Installation & Operation Manual (PDF)
• Submittal Sheet (PDF)
• Technical Bulletin (PDF)
