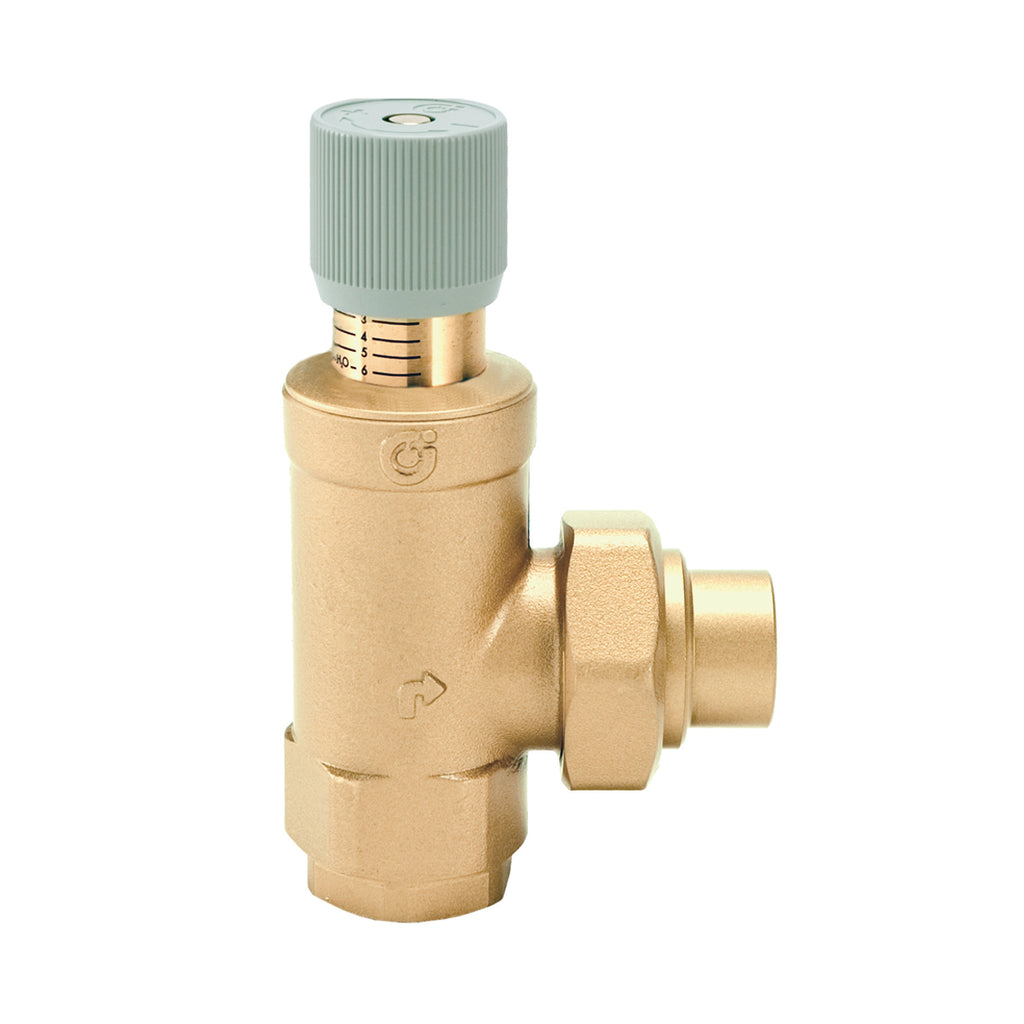

Caleffi 519600A Differential Pressure Bypass Valve 1 in. Male NPT, Adjustable 2-10 PSI

Roll over image to zoom in Click on image to zoom

Caleffi 519600A Differential Pressure Bypass Valve 1" Male NPT, Adjustable 2-10 PSI

Name: Caleffi 519600A Differential Pressure Bypass Valve 1" Male NPT, Adjustable 2-10 PSI
Brand: Caleffi
SKU: CALE-519600A
Price: 236.99 USD
Availability: InStock

CaleffiSKU: CALE-519600A

Price:

$236.99

Stock:

Re-stocking soon

Quantity:

Special order — typically ships in 1–3 weeks.
Contact us for an exact lead time.

Questions? Call (404) 678-9908 or chat with us.

Need 10+ or a project quote? Request a quote · Pros: open a trade account

Free shipping on orders $99+ · 30-day returns · Manufacturer warranty

Shipping details

Shipping weight: 2.7 lb
Box size: 6.55 × 4.9 × 2.55 in

Connection Type	MIP
Size	1"

The Caleffi 519600A is a 1" differential pressure bypass valve with 1" male NPT x male NPT connections, used to maintain minimum flow and limit differential pressure in hydronic systems with zone valves.

Installed between supply and return, the valve opens as zone valves close and system differential pressure rises, bypassing flow to protect the circulator and boiler and to reduce flow noise in the zones that remain open. The opening setpoint is adjustable from 2 to 10 psi, and the valve has an angle body pattern.

Before ordering: Confirm the 1" male NPT x male NPT connections suit your piping layout. Set the valve based on the circulator curve and system design; the setting procedure is in the installation manual below.
