Caleffi 551766A DISCAL Rotating Collar Air Separator 1" Press Union Connections, 150 PSI, 250°F

Roll over image to zoom in Click on image to zoom

Caleffi 551766A DISCAL Rotating Collar Air Separator 1" Press Union Connections, 150 PSI, 250°F

Name: Caleffi 551766A DISCAL Rotating Collar Air Separator 1" Press Union Connections, 150 PSI, 250°F
Brand: Caleffi
SKU: CALE-551766A
Price: 327.99 USD
Availability: InStock

CaleffiSKU: CALE-551766A

Price:

$327.99

Stock:

Re-stocking soon

Quantity:

Special order — typically ships in 1–3 weeks.
Contact us for an exact lead time.

Questions? Call (404) 678-9908 or chat with us.

Need 10+ or a project quote? Request a quote · Pros: open a trade account

Free shipping on orders $99+ · 30-day returns · Manufacturer warranty

Shipping details

Shipping weight: 6.2 lb
Box size: 9.5 × 6.35 × 3.2 in

Connection Type	Press
Size	1"
Type	Air Separators

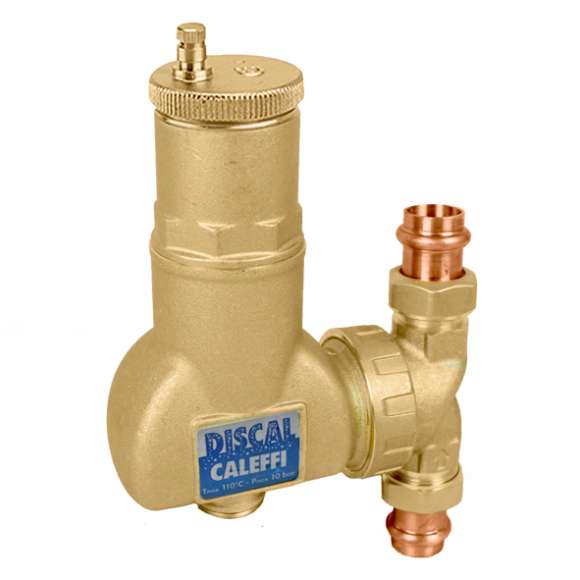

The Caleffi 551766A is a 1" DISCAL air separator with a rotating collar and press union connections, built to remove entrained air and microbubbles from closed-loop hydronic systems.

DISCAL separators use an internal mesh element that makes microbubbles coalesce and rise into the upper chamber, where an automatic float vent discharges the air. The rotating collar lets the body turn so the vent stays upright, allowing installation on horizontal or vertical piping. Union connections simplify installation and future service.

Before ordering: Check that the 1" press union connection matches your piping and that you have the correct press tool and jaws. Install the separator where water is hottest and pressure is lowest, typically on the boiler supply ahead of the circulator.
