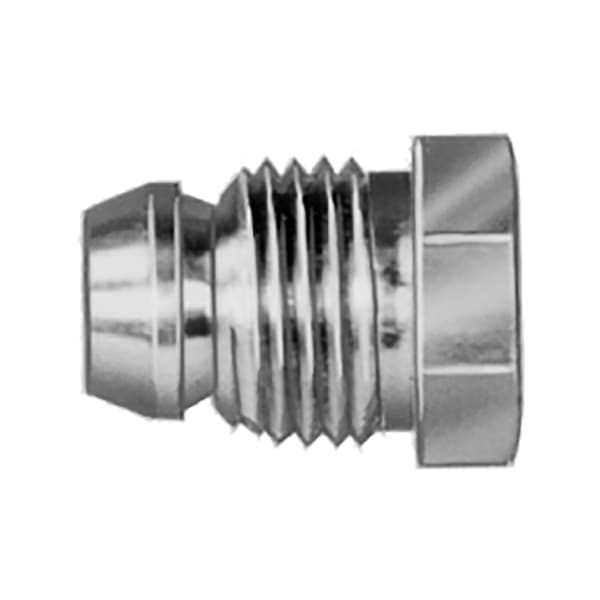

Resideo 386449-1/U Compression Fitting for 1/4 in OD Pilot Tubing, 0.78 in Total Overall Length

Item #: HONE-386449-1/U
Mfr. part #: 386449-1/U
UPC: 085267796989

$4.43

Ships from Seattle, WA
30-day returns on unused items. Details
Secure checkout

Installation by a licensed gas technician is required. Confirm the part against your appliance's parts list.

Need help with this part?

(404) 678-9908 Chat with a product specialist Request a quote

Brand	Resideo
Manufacturer part #	386449-1/U
Application	Compression Fittings
Used With	V800, VS820, VR8100, VR8200, VR8300, VR8104, VR8204, VR8304; V400, VR4200, VR4300, VR4204, VR4304; Honeywell Pilot Buners for Standing Pilot and Intermittent Pilot Applications
UPC	085267796989

Compression fitting from Resideo (Honeywell Home) for 1/4 in OD pilot tubing, 0.78 in overall, part number 386449-1/U.

Pilot tubing carries gas at a few inches of water column, and the joint at each end is a compression fitting on soft aluminum or copper line. The fitting is cheap, it is the part most often mangled during a pilot replacement, and a weeping one is a gas leak at head height inside the appliance cabinet.

Fittings differ in overall length even at the same tube size, which is why the number matters — the length is what lets the nut reach the thread on a particular valve body.

Tighten these by feel and not by force. The ferrule sets on soft tube in well under a full turn past snug, and a fitting cranked down crushes the tube, restricting the pilot gas rate rather than sealing it.

Never reuse a ferrule that has already been set on another tube. It has taken the shape of that tube and it will not seal on a new one, which is the usual reason a pilot line weeps after a repair.
