| Voltage | 120 Vac |
| Frequency | 60 Hz |
| Electrical Connections | Single pole 3 wire (line, load, neutral); Multiswitch (3-way), 4 wire (line, load, neutral, three-way) |
| Electrical Ratings | Maximum Load – 15 A @ 120 Vac 1800 W resistive; 12 A @ 120 Vac 1440 W (Tungsten lights); No minimum load |
| Ambient Temperature | Operating: 5 F to 122 F |
| Application | Incandescent lights; Halogen lights; Fluorescent lights; Electronic ballasts, compatible with CFL’s and LED’s; Motors (up to 1 HP) |
| Dimensions | 1-13/16 in. wide x 2-23/32 in. high x 1-13/16 in. deep |
| UL | Approved |
| Shipping and Storage Temperature Range (F) | -40 F to 140 F |
| Approvals, Canadian Underwriters Laboratories Inc. | Approved |
| Programmability | Weekly/Daily Programming (21 on, 21 off); Solar timetable; Random |
| Operating Mode | Manual (conventional on/off switch); Automatic; Random |
| Electrical Ratings, Motor | 1 HP @ 120 Vac |
Description

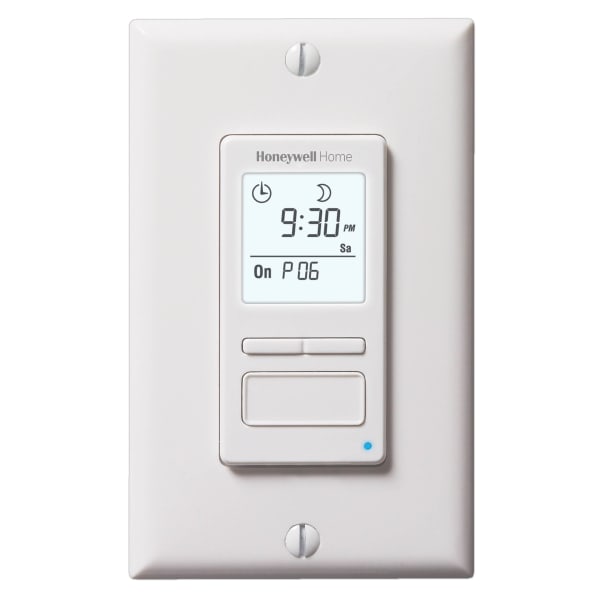

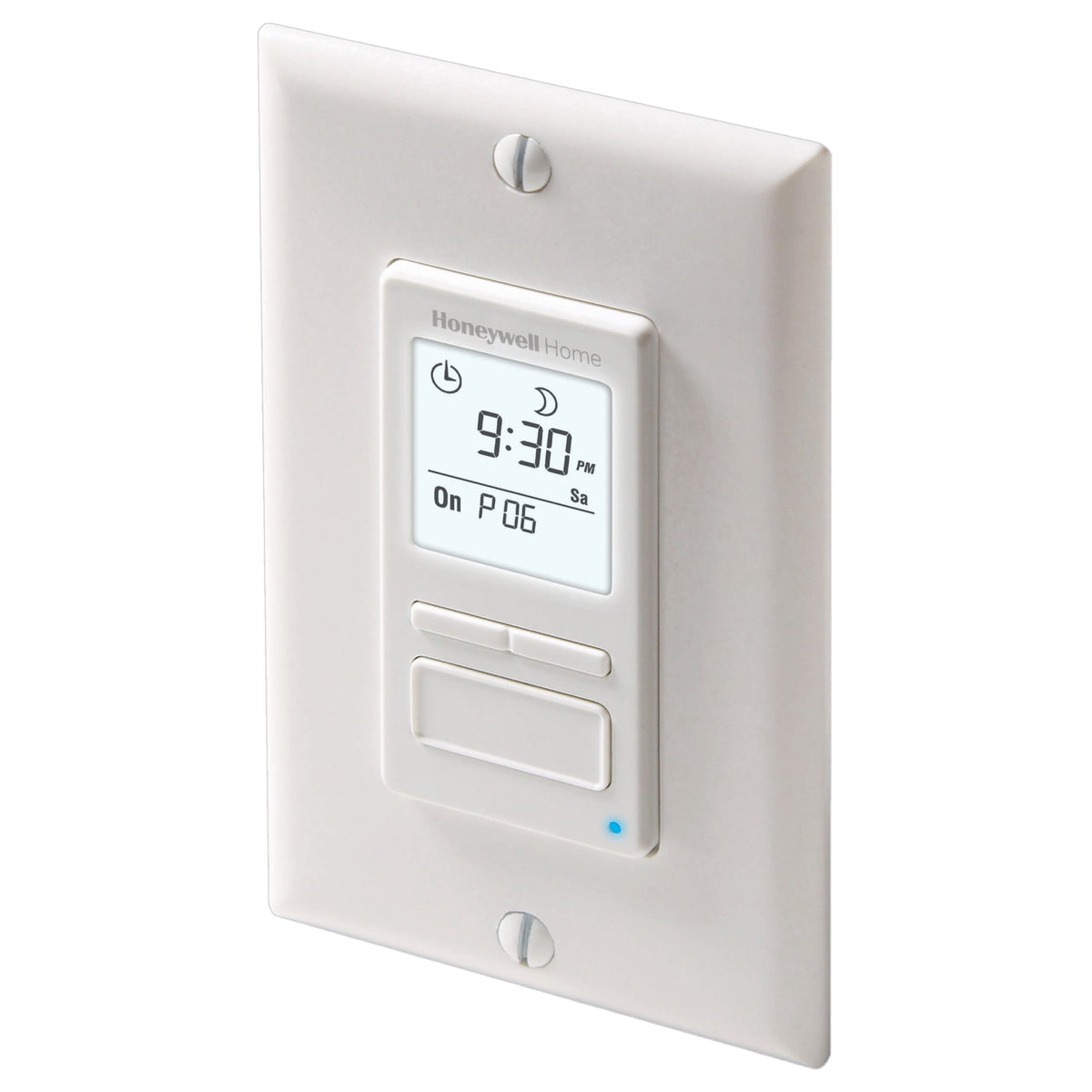

The PLS750C1000 is the EconoSwitch from Resideo (Honeywell Home), a programmable switch for lights and motors with a solar timetable, white.
A timer that runs on clock time is wrong most of the year. Sunset moves by hours between June and December, so a light set to come on at six is either late in winter or pointless in summer.
The solar timetable fixes that. Give it the location and it tracks sunrise and sunset by date, so "on at dusk" stays on at dusk all year with nobody adjusting anything.
Rated for motors as well as lights, so it covers exhaust fans and pumps rather than only lighting.
- Brand: Resideo (Honeywell Home)
- Manufacturer Part #: PLS750C1000/U
- Type: Programmable switch with solar timetable
- Load: Lights and motors
- Color: White
- UPC: 085267838764
- Category: Programmable Switches
