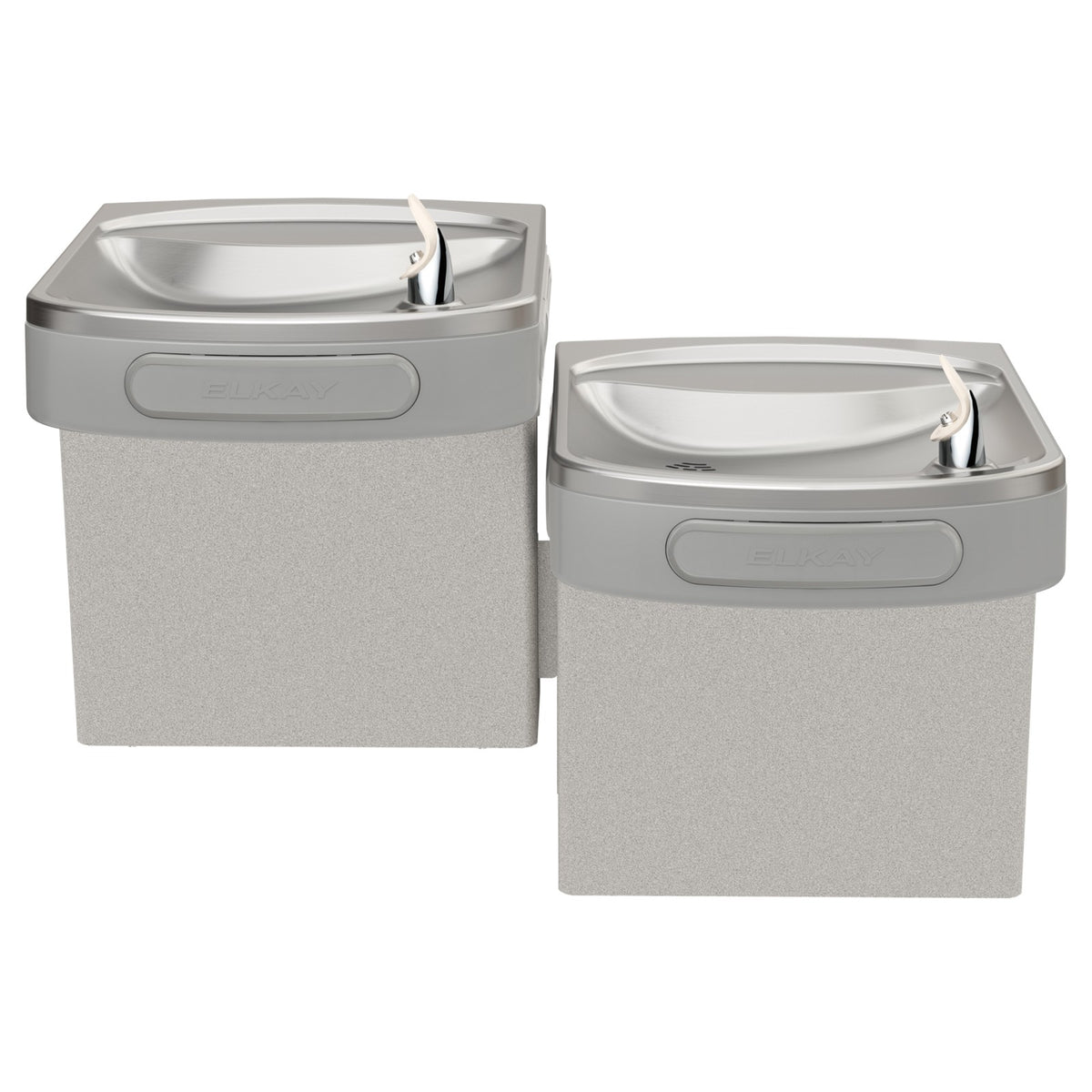

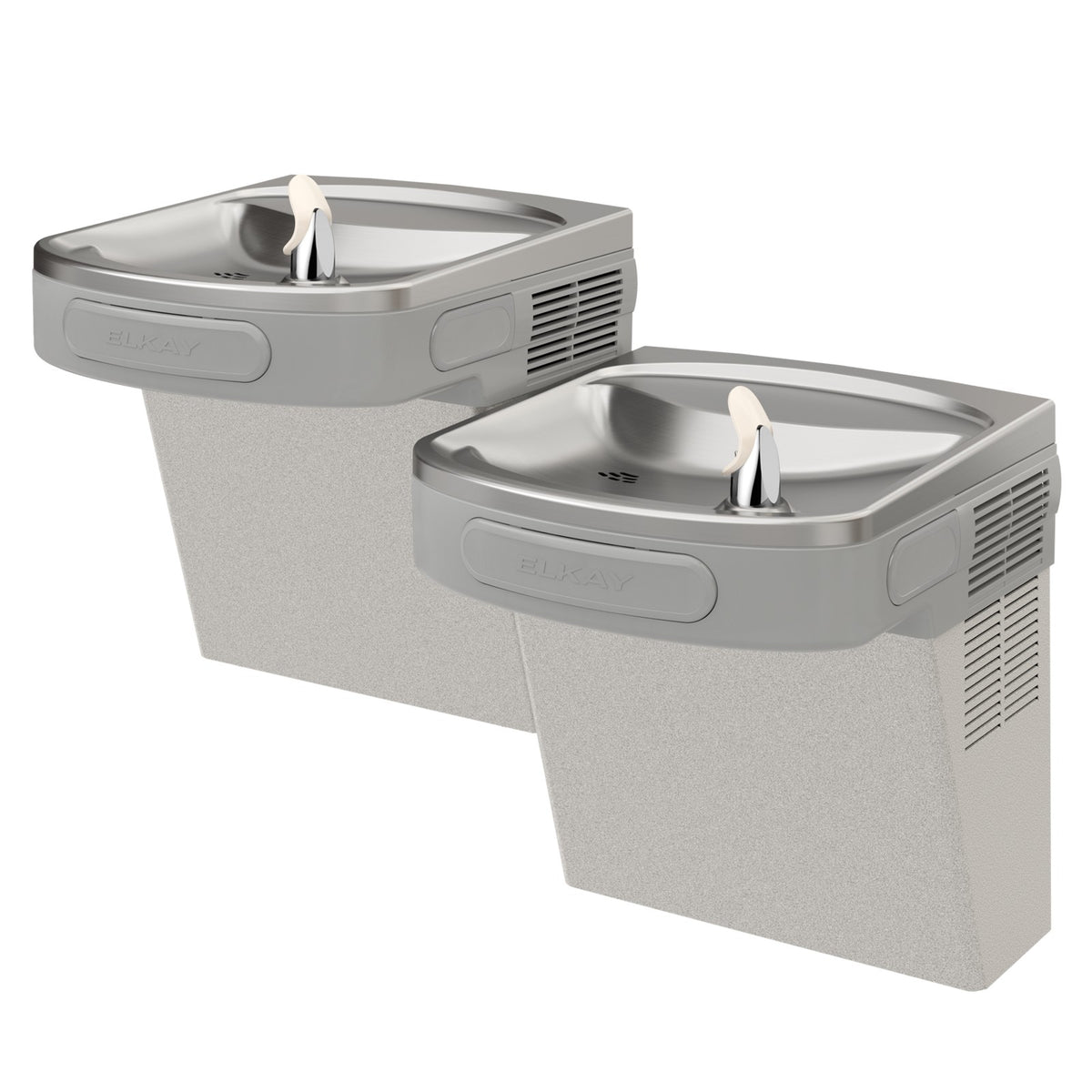

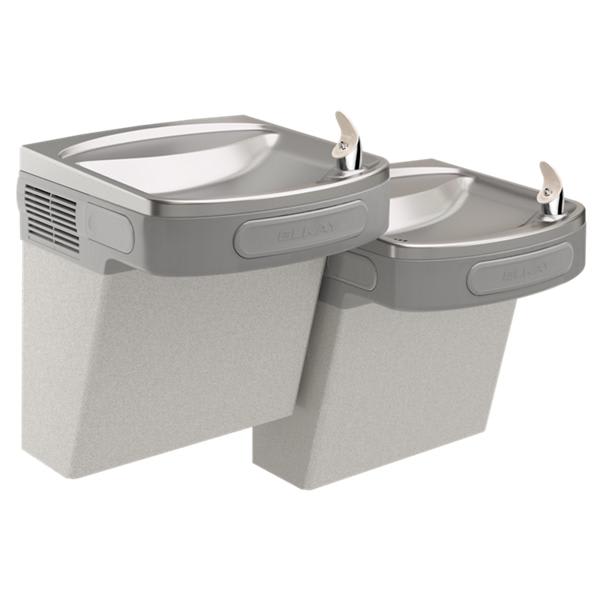

Elkay EZSTLDDLC Wall Mount Versatile Bi-Level ADA Cooler Non-Filtered Non-Refrigerated Light Gray Granite

Elkay EZSTLDDLC is a wall-mount, bi-level EZ series drinking fountain, non-filtered and non-refrigerated, with a light gray granite vinyl-clad finish.

The versatile bi-level design installs standard high-left/low-right or alternate low-left/high-right, and the unit meets ADA adult or child standards when properly installed. It has electronic bubbler push bars, a fastenerless integrated drain, and Flexi-Guard bubblers with a flexible antimicrobial mouth guard. It is rated for indoor use.

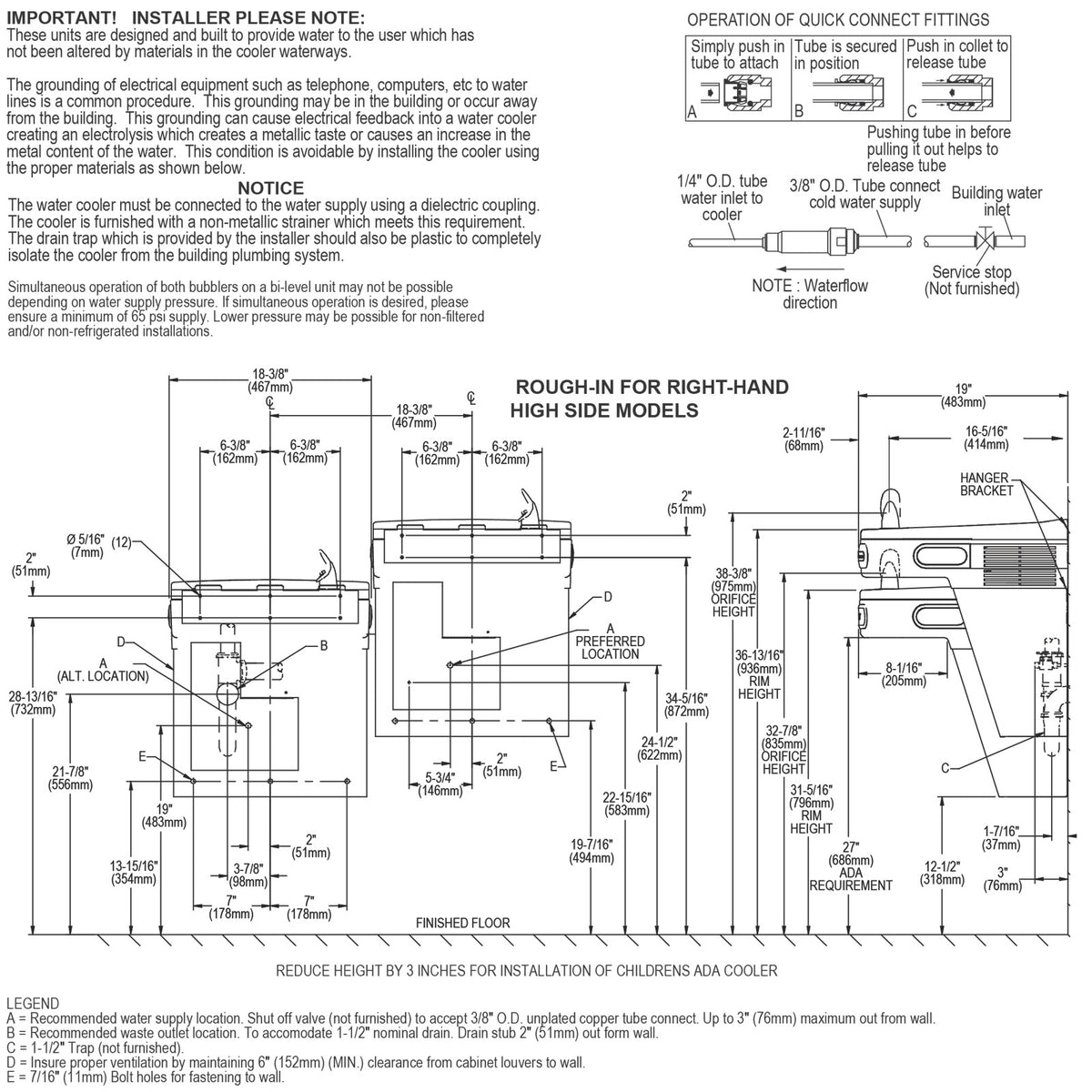

Before ordering, check the specification sheet for the mounting height and rough-in, and confirm the water is not required to be chilled or filtered, since this model does neither.

Specifications

• Brand: Elkay
• Manufacturer Part #: EZSTLDDLC
• Series: EZ
• Mounting: Wall Mount
• Configuration: Bi-Level
• Filtered: No
• Refrigerated: No
• Finish: Light Gray Granite (Vinyl Clad)
• Height: 25.3125"
• Length: 36.75"
• Width: 19"
• ADA Compliant: Yes
• Buy America Act Compliant: No
• Application: Primarily Commercial
• UPC: 094902247151
• Category: Bottle Fillers & Fountains

Documents

• Installation Instructions (PDF)
• Specification Sheet (PDF)
• Warranty (PDF)
