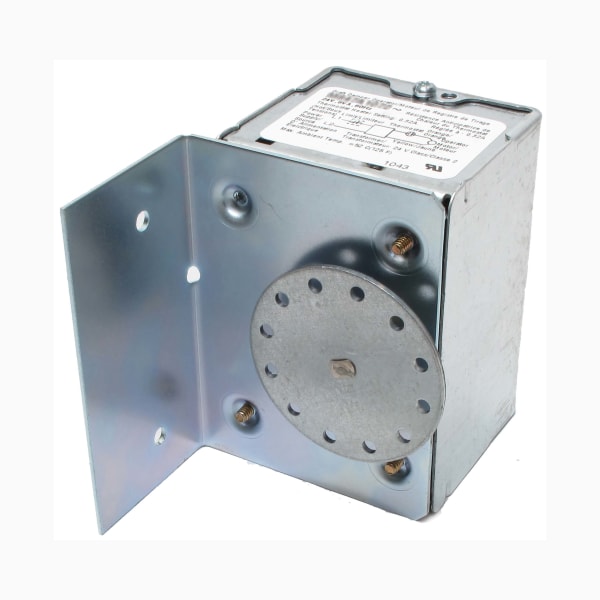

Honeywell Home M847A1072/U Foot Mounted Actuator

Item #: HONE-M847A1072/U
Mfr. part #: M847A1072/U
UPC: 085267059138

Key specifications

MountingFoot mounted. Direct Coupled
Supply Voltage24 Vac
Frequency60 Hz
TimingRun Time Maximum-- 20 sec
Operating Temperat40 F to 125 F

View all specifications

$167.33

Ships from Seattle, WA
30-day returns on unused items. Details
Secure checkout

Shipping details

Shipping weight: 1.8 lb
Box size: 5.05 × 4.85 × 4.55 in

Need help with this part?

(404) 678-9908 Chat with a product specialist Request a quote

Brand	Honeywell Home
Manufacturer part #	M847A1072/U
Supply Voltage	24 Vac
Frequency	60 Hz
Timing	Run Time Maximum-- 20 sec
Operating Temperature	40 F to 125 F
Operating Humidity	5 to 95% RH
Mounting	Foot mounted. Direct Coupled
Includes	3.8 in. linkage arm
Dimensions	3 1/2 in. high x 2 5/8 in. wide x 3 5/16 in. deep
Weight (lb)	1.75 lbs
Stroke	Angle of Rotation-- 45 degrees maximum
Control Signal	Two position, SPST
Fail Safe Mode	Spring Return
Torque Rating (lb-in.)	1.9 lb-in.
Torque Rating (Nm)	0.21 Nm
External Auxiliary Switches Available	No
Motor shafts	1, Round
UPC	085267059138

The M847A1072 is a foot mounted actuator from Honeywell Home.

The actuator is what moves the valve. Valve bodies outlast the motors on them by a wide margin, so replacing the actuator and leaving the body in the pipe is the normal repair — no cutting, no re-soldering, no draining beyond the valve.

Match the actuator to the valve body and to the control signal. A body that takes a floating actuator will not do anything useful with a two-position one.
