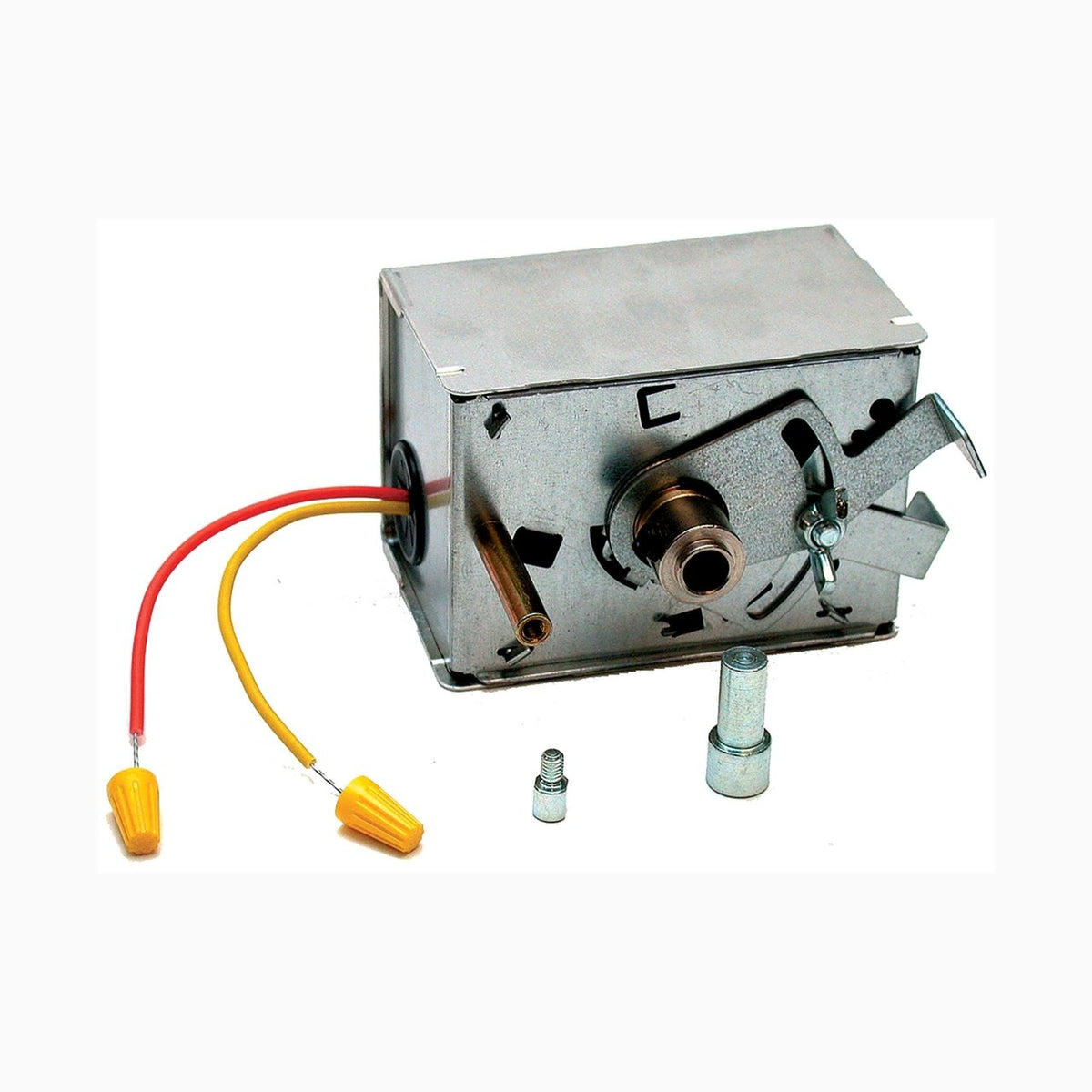

Honeywell Home M847A1049/U Damper Actuator, 24 VAC, 1.9 lb-In, 24 Sec Timing, 3.8 in Linkage Arm

24 VAC, 50/60 Hz damper actuator with 1.9 lb-in torque, 24-second timing, and a 3.8 in linkage arm.

Specifications

• Brand: Resideo (Honeywell Home)
• Manufacturer Part #: M847A1049/U
• Product Height: 3.5 in, 89 mm
• Product Weight: 1.8 lb
• Product Width: 2.63 in, 66 mm
• Includes: 38 in linkage chain
• Ambient Operating Temperature (Min): 40 °F, 5 °C
• Ambient Operating Temperature (Max): 125 °F, 50 °C
• Mounting Type: Direct Coupled, Foot Mounted
• Operating Frequency: 60 Hz
• Product Depth: 3.31 in, 84 mm
• Rotation Direction: Actuator Wheel: when energized, this wheel rotates in the clockwise direction when facing the wheel.
• Supply Voltage: 24 V AC
• UPC: 085267127844
• Country of Origin: MX
• Category: Replacement Actuators
