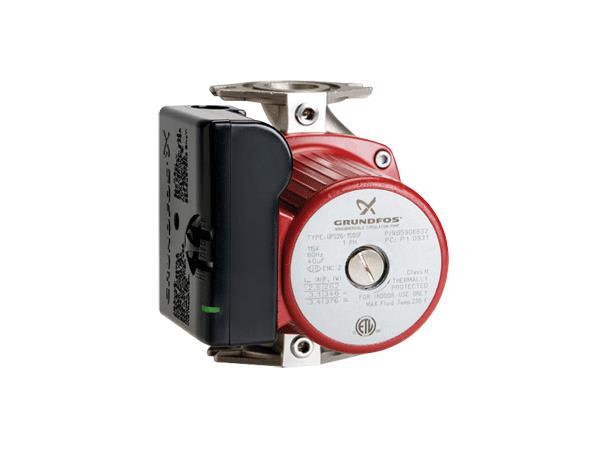

Grundfos 98961765 UPS26-99SFC 3-Speed Circulator with Check Valve, Stainless Steel, Flanged, 1/6 HP, 230V

The Grundfos 98961765 is a UPS26-99SFC three-speed wet-rotor circulator with a stainless steel pump housing and flanged connections, with an integral check valve.

UPS circulators are wet-rotor pumps with a manual three-speed selector on the terminal box, so the duty point can be matched to the system. The stainless steel housing is suited to open systems such as domestic hot water and recirculation as well as closed-loop heating. The integral check valve helps prevent reverse flow and gravity circulation. This model handles flows up to 33 GPM and a maximum head of 29 ft, with a 36°F to 230°F liquid temperature range.

Before ordering: confirm your supply voltage (230V, single phase), and that you have a matching flange set for your pipe size (listed connection sizes: 3/4", 1", 1-1/4", 1-1/2").

Specifications

• Brand: Grundfos
• Manufacturer Part #: 98961765
• Series: UPS
• Model: UPS26-99SFC
• Type: 3-speed wet-rotor circulator
• Body Material: Stainless Steel
• Connection: Flanged x flanged
• Connection Size: 3/4", 1", 1-1/4", 1-1/2"
• Max Flow: 33 GPM
• Max Head: 29 ft
• Max Pressure: 145 psi
• Temperature Range: 36°F to 230°F
• Voltage: 230V, 1 phase, 60 Hz
• Amperage: 0.9 A
• Horsepower: 1/6 HP
• Max Speed: 3380 RPM
• Features: Integral check valve
• UPC: 5712604305775
• Category: Hot Water Recirculating Pumps

Documents

• Installation & Operation Manual (PDF)

See also: hot water recirculating pumps, all Grundfos products.
