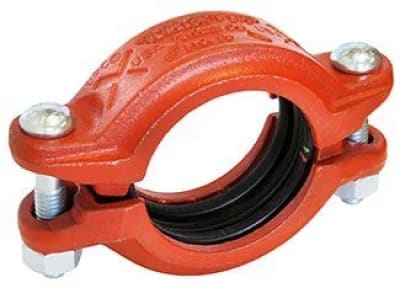

Gruvlok GVLF-74-250-EP-PNTD is a 2-1/2" SlideLOK rigid coupling with a painted finish and an EPDM gasket (green and red), for grooved-end connections.
The SlideLOK coupling comes ready for installation, and its slide action eases assembly and cuts installation time. The patented gasket provides four separate sealing surfaces. It provides a rigid connection that allows pipe hanging practices per ASME B31 pipe codes, with a maximum working pressure of 750 psi on roll or cut grooved carbon steel standard wall pipe.
SlideLOK is designed for roll grooved or cut grooved steel pipe, grooved light wall pipe, and Gruvlok grooved-end fittings and valves. Before ordering, confirm the pipe size and that EPDM suits the fluid and temperature in your system.
Specifications
-
Brand: Gruvlok
-
Manufacturer Part #: GVLF-74-250-EP-PNTD
-
Type: SlideLok Coupling
-
Size: 2-1/2"
-
Material: Painted
-
Gasket: EPDM (Green & Red)
-
Connection Type: GR x GR
-
Max Working Pressure: 750 psi (roll or cut grooved carbon steel standard wall pipe)
-
Category: Gruvlok Fittings
