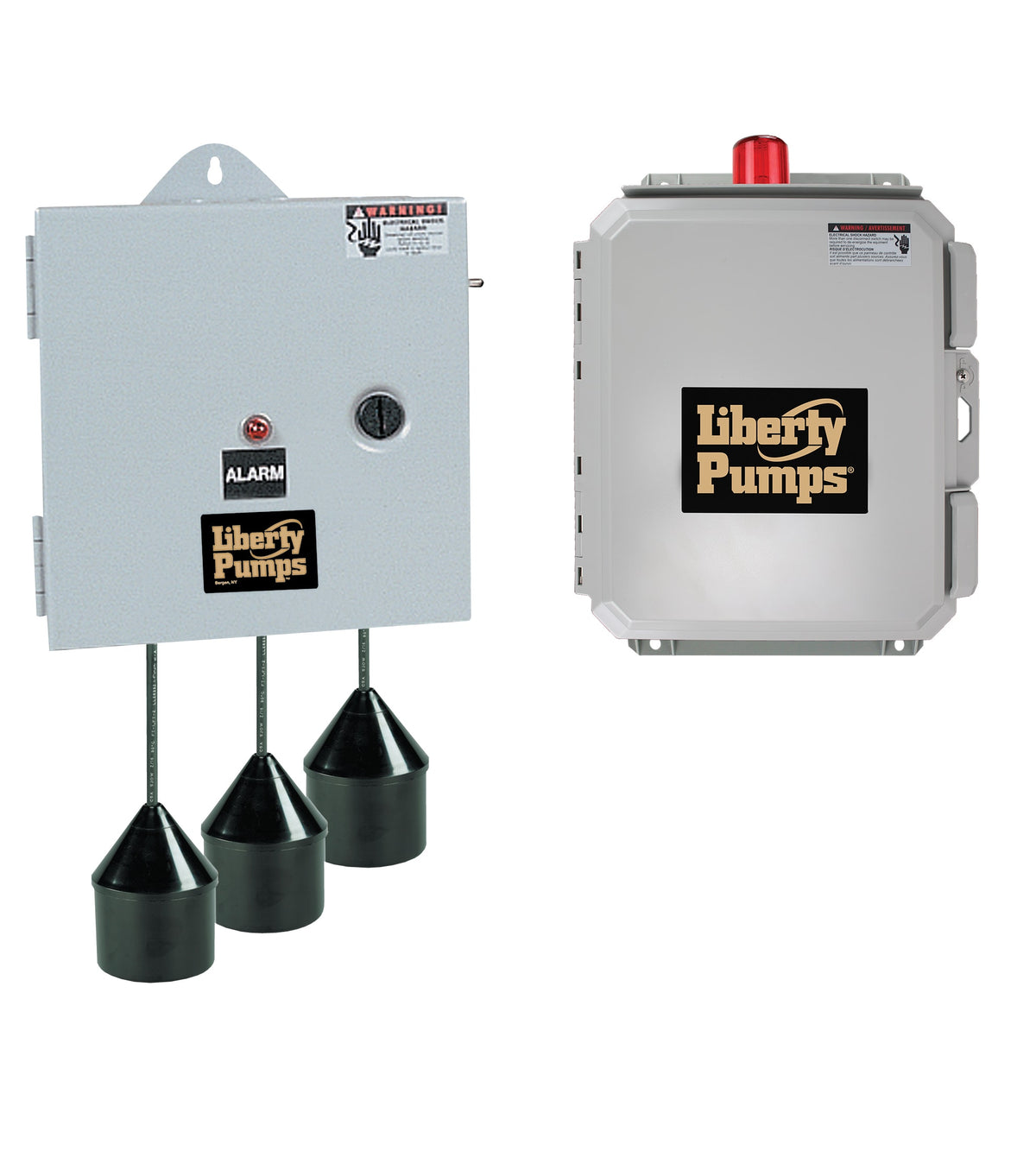

Liberty Pumps AE21L=3 Duplex Control Panel, 120/208/240V, 1 PH, NEMA 1, 0-14.9 FLA, 3 Float

Liberty Pumps AE21L=3 is a single-phase duplex pump control panel in a NEMA 1 enclosure, for pumps drawing 0 to 14.9 full load amps, with a 3-float setup.

The panel uses mercury-free pilot-duty floats to control two pumps.

The title lists 120/208/240V, while the item data lists 115/230 volts, so confirm the supply voltage and the pump amperage against the brochure and the installation and operation manual before ordering. NEMA 1 is an indoor enclosure rating.

Specifications

• Brand: Liberty Pumps
• Manufacturer Part #: AE21L=3
• Type: Duplex Control Panel
• Phase: 1 PH
• Voltage: 120/208/240V (item data: 115/230V)
• Full Load Amps: 0-14.9
• Enclosure: NEMA 1
• Floats: 3, mercury-free pilot-duty
• UPC: 671812106923
• Category: Switches, Alarms & Check Valves

Documents

• Brochure (PDF)
• Installation/Operation (PDF)
