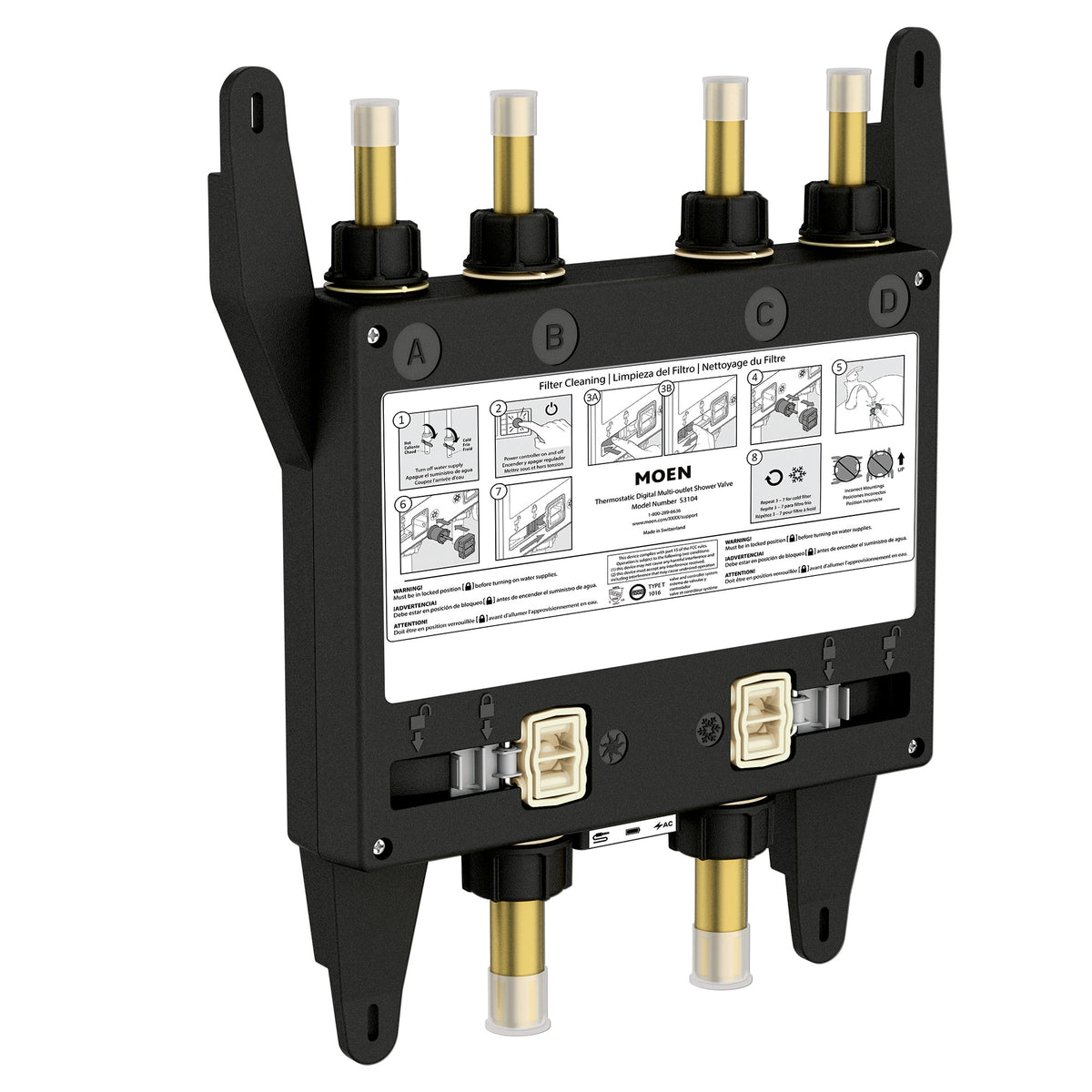

Moen S3104 U by Moen 4-Outlet Digital Thermostatic Shower Valve

Moen S3104 is a U by Moen four-outlet digital thermostatic shower valve for the Smart Shower system.

The ExactTemp® thermostatic valve holds the temperature you set, and the four outlets can supply up to four fixtures, such as a showerhead, hand shower, rain shower or body sprays. It has 3/4-inch CC inlets and 1/2-inch CC outlets, and its compact 13-3/4 in. x 15-3/4 in. size fits between standard studs or in a cabinet or vanity. The AC adapter and a 30-foot controller data cable are included, and the filter screens are easy to reach for cleaning.

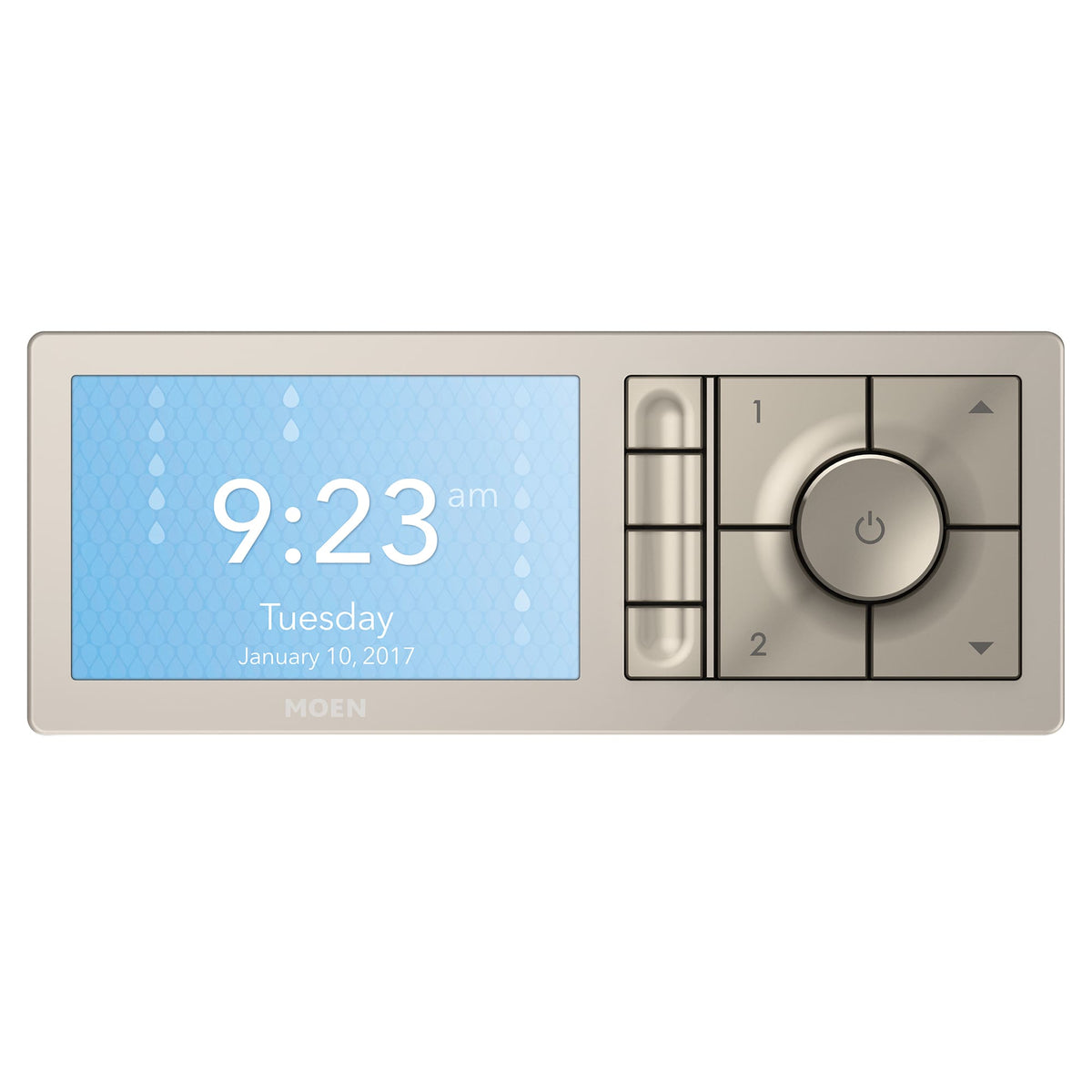

The four-outlet digital controller is required and sold separately. The valve needs an access panel and a GFCI outlet with continuous 120V/60Hz power. Voice control and app features need wireless internet, a smartphone and a compatible smart device. An optional Moen battery backup kit (179573) is available. Moen lists a 5-year warranty on digital components.

Specifications

• Brand: Moen
• Manufacturer Part #: S3104
• Outlets: 4
• Valve Type: Digital Thermostatic (ExactTemp®)
• Inlet Connections: 3/4" CC
• Outlet Connections: 1/2" CC
• Dimensions: 13-3/4 in. x 15-3/4 in.
• Power: GFCI outlet, 120V/60Hz continuous
• Included: AC adapter, 30 ft. controller data cable
• Controller: Required, sold separately
• Application: Primarily Residential
• Warranty: 5 Year on Digital Components
• UPC: 026508269923
• Category: Thermostatic Rough-in Valves

Documents

• Instruction Sheet (PDF)
• Parts List (PDF)
• Specification Sheet (PDF)
