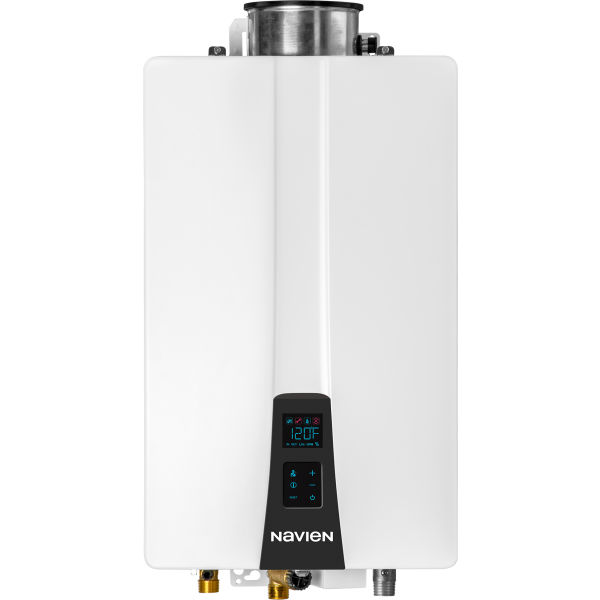

Navien NHW-SU 199,000 BTU Compact tankless water heaters work great inside and outside - Natural Gas

Roll over image to zoom in Click on image to zoom

Navien NHW700-199SU-NG NHW-SU Compact Tankless Water Heater, 199,900 BTU, Indoor/Outdoor, Natural Gas

Name: Navien NHW700-199SU-NG NHW-SU Compact Tankless Water Heater, 199,900 BTU, Indoor/Outdoor, Natural Gas
Brand: Navien
SKU: NAVI-NHW700-199SU-NG
Price: 1374.83 USD
Availability: InStock

NavienSKU: NAVI-NHW700-199SU-NG

Price:

$1,374.83

Stock:

Only 10 units left

Quantity:

Ships UPS Ground for a flat $149 (continental US).
Flat rate by order weight: $119 under 70 lb · $149 for 70–100 lb · $189 for 100–150 lb.

Usually ships in 1–2 business days.

Pricing a job? Get a written quote →Open a trade account

Questions? Call (404) 678-9908 or chat with us.

Ships from Seattle, WA · 30-day returns · Manufacturer warranty

Shipping details

Shipping weight: 71.5 lb
Box size: 16 × 25 × 11.3 in

Efficiency ratings (UEF (NG & LP))	0.81
Flow rate (DHW) (35°F temp rise)	9.5 GPM
Flow rate (DHW) (45°F temp rise)	7.4 GPM
Flow rate (DHW) (67°F temp rise)	5.4 GPM
Minimum flow rate	0.3 GPM
Connection sizes (Cold water inlet)	3/4
Connection sizes (Hot water outlet size)	3/4
Connection sizes (Gas inlet)	3/4
Natural gas supply pressure (from source)	3.5 " WC to 10.5 " WC
Propane gas supply pressure (from source)	8 " WC to 13 " WC
Natural gas manifold pressure (min-max)	2.8 " WC to 0.7 " WC
Propane gas manifold pressure (min-max)	5.4 " WC to 1.3 " WC
Power supply (Main supply)	120V AC, 60 Hz
Power supply (Normal)	115 W
Power supply (Standby)	4 W
Power supply (Anti-frost)	114 W
Power supply (External pump)	< 150 W, 1.5 A W
Power supply (Fuse)	5.0 A
Dimensions	14.0" W x 23.0" H x 9.3" D
Boiler weight	65 lbs
Materials (Casing)	Cold rolled carbon steel
Materials (Heat exchangers)	Stainless steel
Safety Devices	Flame Rod, APS, Vent Installation Detector, Ignition Operation Detector, Water Temperature High Limit Switch, Power Surge Fuse
AHRI number	204524349 (Natural gas) 204524350 (Propane)
CSA	Yes
NSF (Standard 5)	Yes
Low Lead (<0.25%)	Yes
Gas input (Domestic hot water)	10,700 - 199,900 BTU/h
DHW water pressure	15-150 PSI
Ultra low NOx	Yes

The Navien NHW700-199SU-NG is a compact tankless water heater from Navien's NHW series. Mounts indoors or outdoors in a 14-inch-wide cabinet.

Rated input is 10,700 - 199,900 BTU/h on natural gas. It modulates from 199,900 BTU/h all the way down to 10,700, so it is not running at full fire to fill a sink.

How much hot water you actually get

Navien rates every tankless unit by temperature rise, because the colder the incoming water, the less of it one burner can heat. Here is what the NHW700-199SU-NG delivers:

Temperature rise	Flow rate	Typical use
35°F	9.5 GPM	Warm-climate groundwater, or a preheated feed
45°F	7.4 GPM	The usual design point across most of the U.S.
67°F	5.4 GPM	Northern winter, incoming water near 40°F

Sized against a 2.5 GPM showerhead, the 67°F column is worth roughly 2 showers at once on the coldest day of the year, and more than that the rest of the year. Size to the 67°F row if your winter groundwater runs cold.

Minimum activation flow is 0.3 GPM, so it fires for a hand wash, not just a full shower.

Installing it

Cabinet: 14.0" W x 23.0" H x 9.3" D
Weight: 65 lbs
Water connections: 3/4" cold in, 3/4" hot out
Gas connection: 3/4"
Water pressure range: 15-150 PSI
Power: 120V AC, 60 Hz
Venting: per the Navien installation manual for this model — this is a non-condensing unit and does not vent in PVC
Heat exchanger: Stainless steel

Ratings and certifications

UEF: 0.81
CSA certified
NSF Standard 5
lead free (<0.25%)
ultra low NOx
AHRI: 204524349 (Natural gas) 204524350 (Propane)

Model details

Brand: Navien
Manufacturer part number: NHW700-199SU-NG

Ships in the manufacturer's carton. Shipping is calculated at checkout by weight, dimensions and destination. Gas connection and venting must be done by a licensed installer, to the Navien manual and to your local code.
