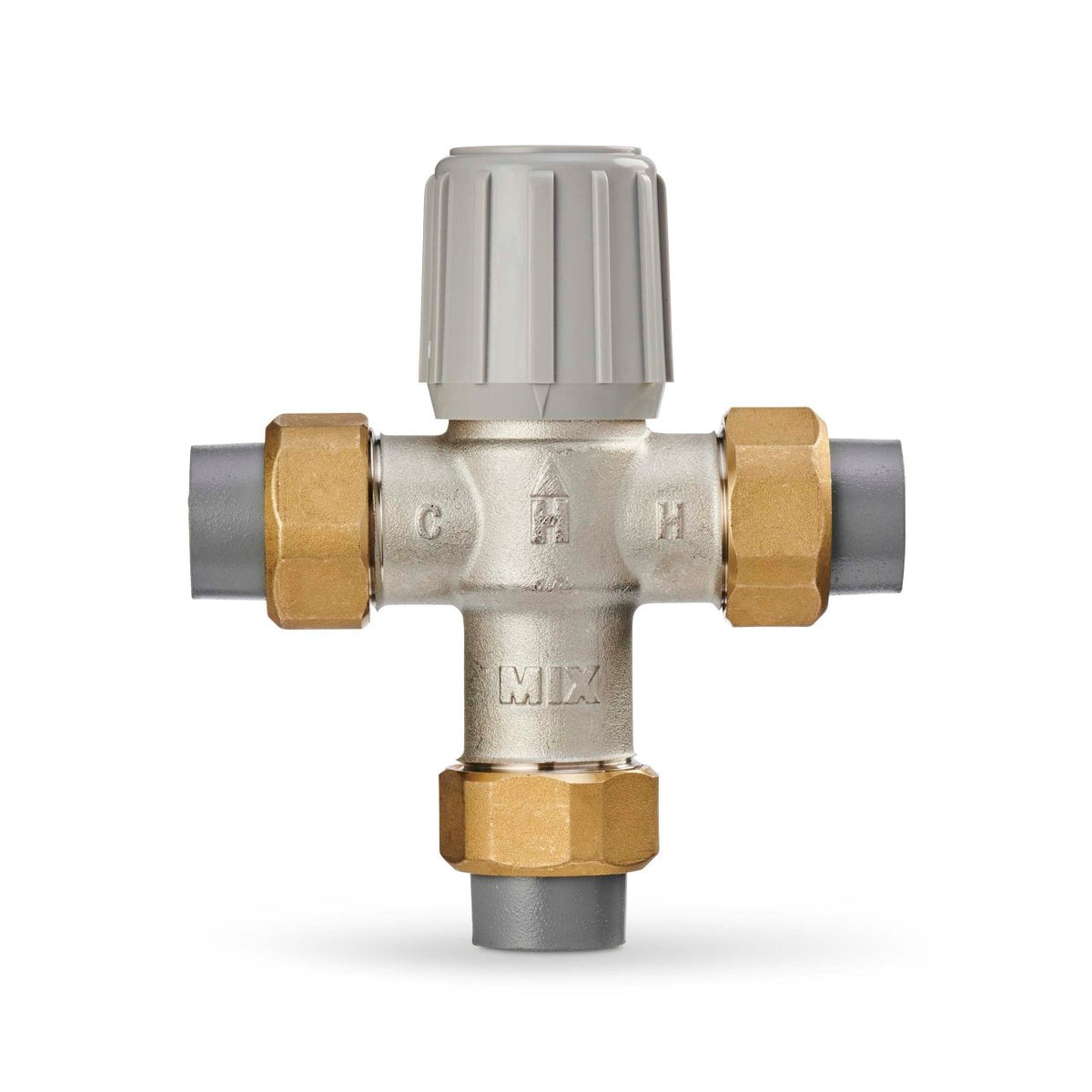

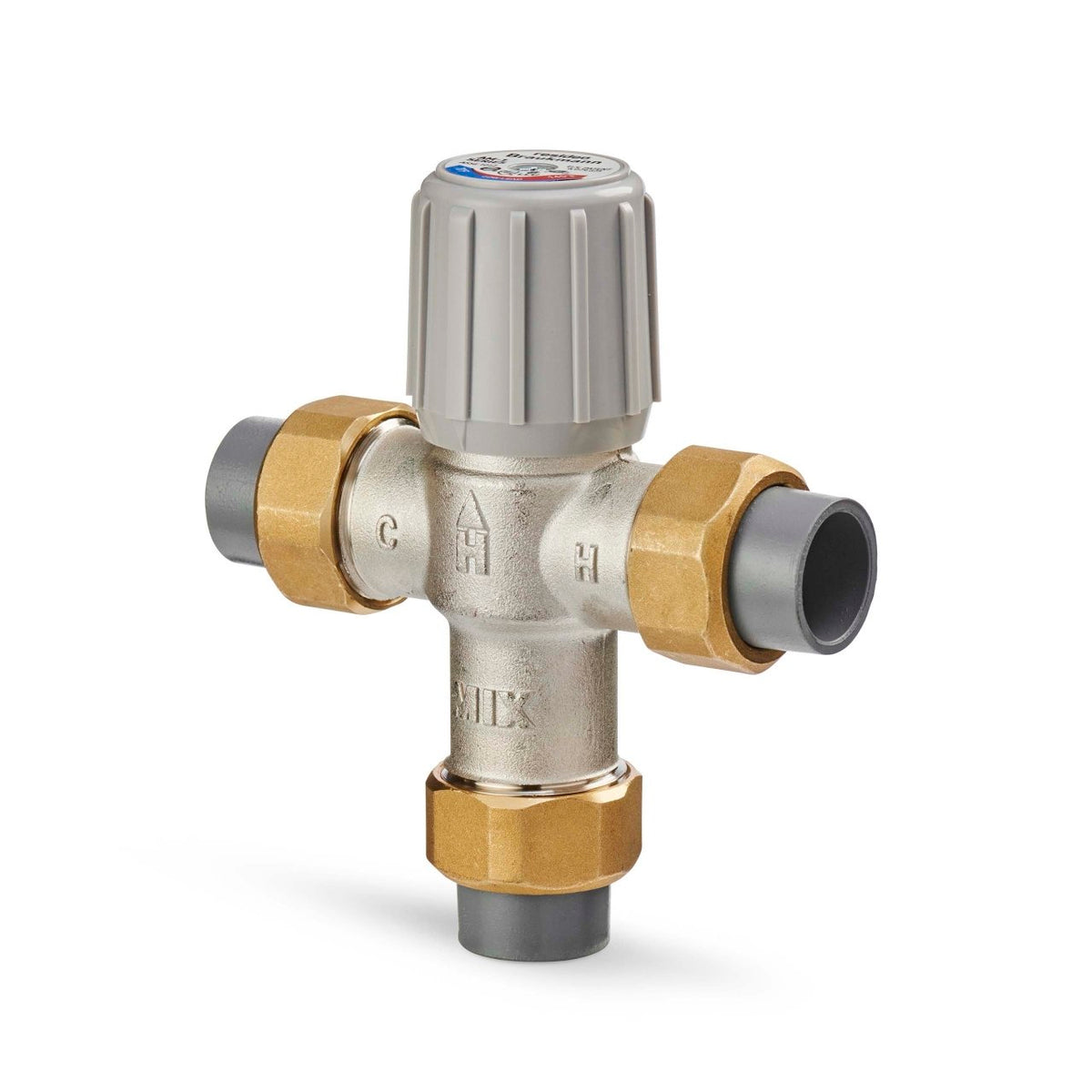

Resideo AM100-UCPVC-1LF/U AM-1 Lead Free Mixing Valve, 1/2 in CPVC Union, 100–145°F

AM-1 series lead free mixing valve, 1/2 in, with CPVC union connections and a 100–145°F range.

Specifications

• Brand: Resideo (Honeywell Home)
• Manufacturer Part #: AM100-UCPVC-1LF/U
• Controlled Media: Potable Water, Non Potable Water
• Re-Circulation: No
• Approvals and Standards: ASSE 1017 Certified, IAPMO Listed
• Color: Metallic
• Includes: Check Valves on Hot and Cold Inlets
• Product Height: 5.8 in, 147.32 mm
• Product Length: 4.7 in, 119.4 mm
• Warranty: 1 Year
• Adjustment Means: Handwheel
• Cold Inlet Temperature (Min): 39 °F, 27 °C
• Cold Inlet Temperature (Max): 80 °F, 27 °C
• Flex Connector Included: No
• Flow Coefficient: 3.9 Cv
• Flow Rate (Min): 0.50 gpm, 1.9 lpm
• Hot Inlet Temperature (Min): 120 °F, 49 °C
• Hot Inlet Temperature (Max): 180 °F, 82 °C
• Lead Free: Yes
• Media Temperature (Max): 180 °F, 82 °C
• Number of Check Valves: 2
• Operating Mixing Temperature (Min): 70 °F, 21 °C
• Operating Mixing Temperature (Max): 145 °F, 63 °C
• Operating Pressure (Max): 100 psi, 689.5 kPa
• Seal Material: EPDM Rubber
• Valve Body Material: Teflon-coated, Nickel-plated Brass
• Accessories: AM100-SB/U, AM1-TAIL100UP-LF, AM1-TAIL1003UP-LF, AM-1-025RP/U, AM1-TG100-US-LF/U
• Connection Size: 1/2 in
• Connection Type: Union CPVC
• Nominal Diameter: DN15
• Number of Connections: 3
• Valve Body Pattern: Straight Through
• UPC: 085267337663
• Country of Origin: MX
• Category: Mixing Valve - Lead Free - 1/2"
