Resideo 1/2 in Union NPT Mixing Valve LF 1070

Roll over image to zoom in Click on image to zoom

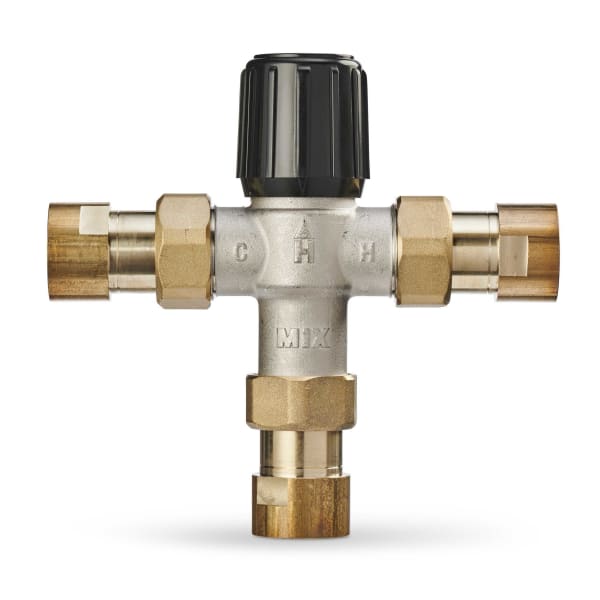

Resideo AM100C1070-UT-1LF 1/2 in Union NPT Mixing Valve LF 1070

Name: Resideo AM100C1070-UT-1LF 1/2 in Union NPT Mixing Valve LF 1070
Brand: Resideo
SKU: HONE-AM100C1070-UT-1LF
Price: 174.61 USD
Availability: InStock

ResideoSKU: HONE-AM100C1070-UT-1LF

Price:

$174.61

Stock:

In stock (19 units), ready to be shipped

Quantity:

Usually ships in 1–2 business days.

Questions? Call (404) 678-9908 or chat with us.

Need 10+ or a project quote? Request a quote · Pros: open a trade account

Free shipping on orders $99+ · 30-day returns · Manufacturer warranty

Replaces: AM100C-UT-1, AM100C1070-UT-1, AM100C-UT-1LF

Shipping details

Shipping weight: 2.3 lb
Box size: 6.05 × 3.8 × 3.6 in

⚠ WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Pipe Size	1/2 in.
Connection Type	Union NPT
Valve Type	Mixing Valves
Capacity (Cv)	1.8 Cv
Fluid Temperature	Cold Inlet: 39 F to 80 F; Hot Inlet: 120 F to 180 F; Mixed Outlet: 70 F to 120 F
Materials (Body)	Teflon-Coated, Nickle-Plated Low Lead Brass
Materials (Packing)	EPDM O-rings
Application	Scald prevention in Domestic water; Nursing homes; Public facilities; Automatic faucets; Industrial applications; Photo processing
CSA	CSA Certified
Maximum Safe Operating Pressure (psi)	150 psi
Approvals, Others	NSF/ANSI; IAPMO
Minimum flow rate (gpm)	0.5 gpm
Minimum flow rate (lpm)	1.9 lpm
Approvals, ASSE	1017 and 1070

The AM100C1070-UT-1LF is a lead-free thermostatic mixing valve from Resideo (Honeywell Home), 1/2 inch, NPT connection.

A mixing valve solves a problem that has no other answer: a water heater has to be kept hot enough to suppress bacterial growth in the tank, and that temperature is too hot to deliver to a tap. The valve blends stored hot water with cold on its way out, so the tank stays hot and the fixture does not.

Beyond safety, tempering buys capacity. A tank held hot and blended down delivers considerably more usable hot water than the same tank set to delivery temperature, because each gallon drawn is stretched with cold.

The 1070 designation marks the point-of-use range, intended for tempering at or near the fixture rather than at the heater. Confirm the listed standard against what your jurisdiction requires for the application — point-of-use and whole-house tempering are held to different listings.

Lead free construction, as required for potable water in the United States.

Set the outlet temperature with a thermometer at the fixture, not by the dial alone, and re-check it after the system has settled. Inlet conditions move the mix, and a valve set on a cold line reads differently once the loop is up to temperature.

Brand: Resideo (Honeywell Home)
Manufacturer Part #: AM100C1070-UT-1LF
Type: Thermostatic mixing valve
Size: 1/2 in
Connection: NPT
Series: 1070 point-of-use
Lead free: Yes
UPC: 085267337595
Shipping weight: 1.5 lb
Category: Mixing Valves

Full Specifications

Controlled Media	Potable Water, Non Potable Water
Re-Circulation	No
Approvals and Standards	ASSE 1017 Certified, ASSE 1070 Certified, CSA Listed, IAPMO Listed
Color	Metallic
Includes	Check Valves on Hot and Cold Inlets
Product Height	5.9 in, 149.9 mm
Product Length	4.9 in, 124 mm
Warranty	1 Year
Adjustment Means	Handwheel
Cold Inlet Temperature (Min)	39 °F, 27 °C
Cold Inlet Temperature (Max)	80 °F, 27 °C
Flex Connector Included	No
Flow Coefficient	1.8 Cv
Flow Rate (Min)	0.50 gpm, 1.9 lpm
Hot Inlet Temperature (Min)	120 °F, 49 °C
Hot Inlet Temperature (Max)	180 °F, 82 °C
Lead Free	Yes
Media Temperature (Max)	212 °F, 100 °C
Number of Check Valves	2
Operating Mixing Temperature (Min)	70 °F, 21 °C
Operating Mixing Temperature (Max)	120 °F, 49 °C
Operating Pressure (Max)	150 psi, 1034 kPa
Seal Material	EPDM Rubber
Valve Body Material	Teflon-coated, Nickel-plated Brass
Accessories	AM-1-020RP/U, AM1-TAIL100UP-LF, AM1-TAIL1003UP-LF, AM1-TG100-US-LF/U
Connection Size	1/2 in
Connection Type	Union NPT
Nominal Diameter	DN15
Number of Connections	3
Valve Body Pattern	Straight Through
