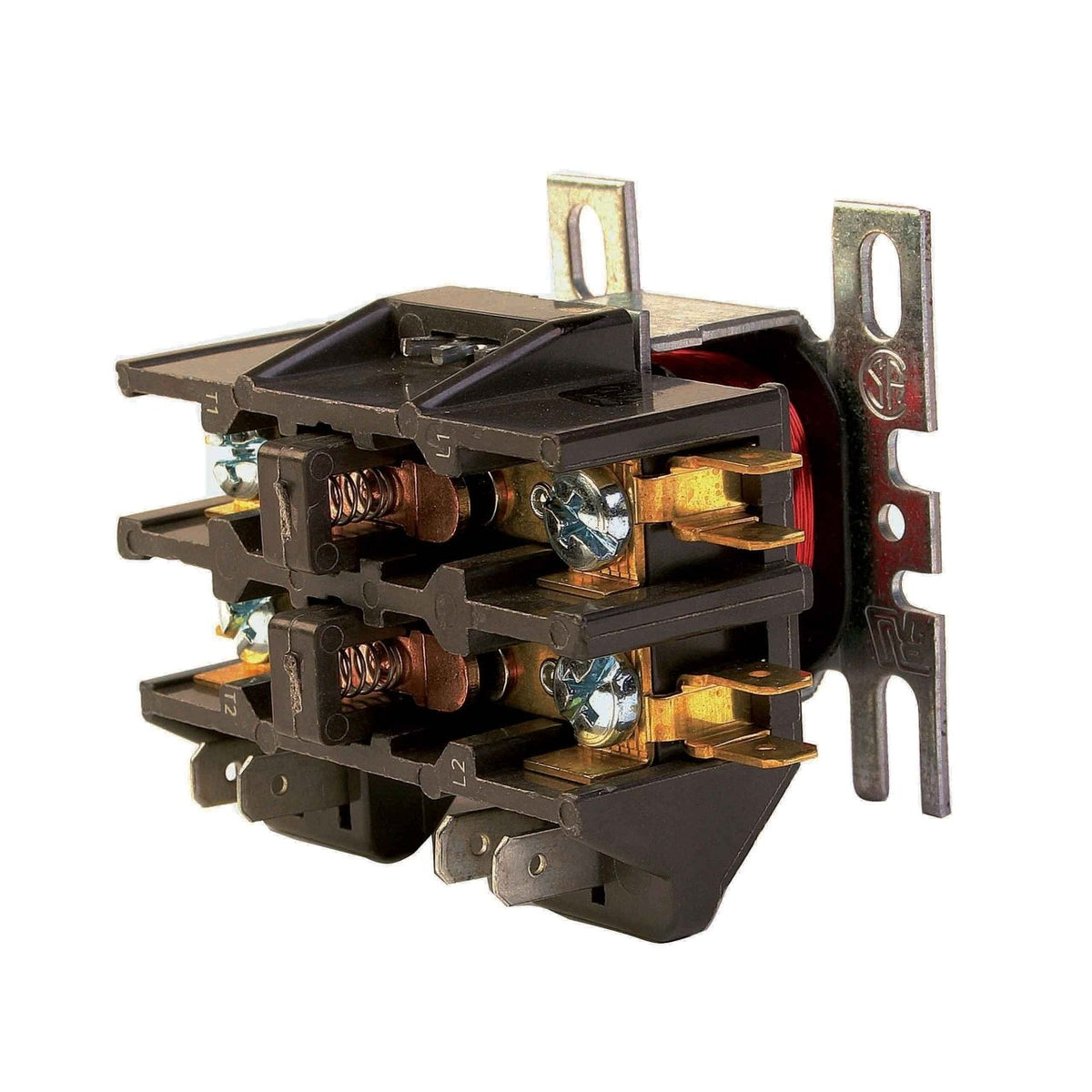

Resideo DPL2040B1002/U Definite Purpose Contactor, A2L Compliant

Definite purpose contactor that is A2L compliant.

Features

• Compliant with A2L refrigerants. Silver cadmium oxide contacts provide long life under demanding duty cycles
• Low profile design allows for more wiring room
• Multiple mounting holes and slots for convenient, interchangeable mounting with most competitive devices

Specifications

• Brand: Resideo (Honeywell Home)
• Manufacturer Part #: DPL2040B1002/U
• Application: Economy Definite Purpose Contactor
• Approvals and Standards: UL Recognized Component: File No. E220475/ E59779, Guide No. LZGH2, LZGH8
• Coil Rating Voltage: 110-120 V ac
• Coil Connection Size: 1/4 in
• Coil Connection Type: Quick Connect
• Number of Poles: 2 Poles
• Operating Frequency: 50 Hz, 60 Hz
• Electrical Connection Type: Slotted & hex head screw w/ quad .250'' quick connect terminals
• Switch Action: DPST
• Ambient Operating Temperature (Min): -13 °F, -25 °C
• Ambient Operating Temperature (Max): 158 °F, 70 °C
• Product Height: 2.3 in, 58 mm
• Product Width: 3.2 in, 81 mm
• UPC: 194159018204
• Country of Origin: CN
• Category: Contactors
