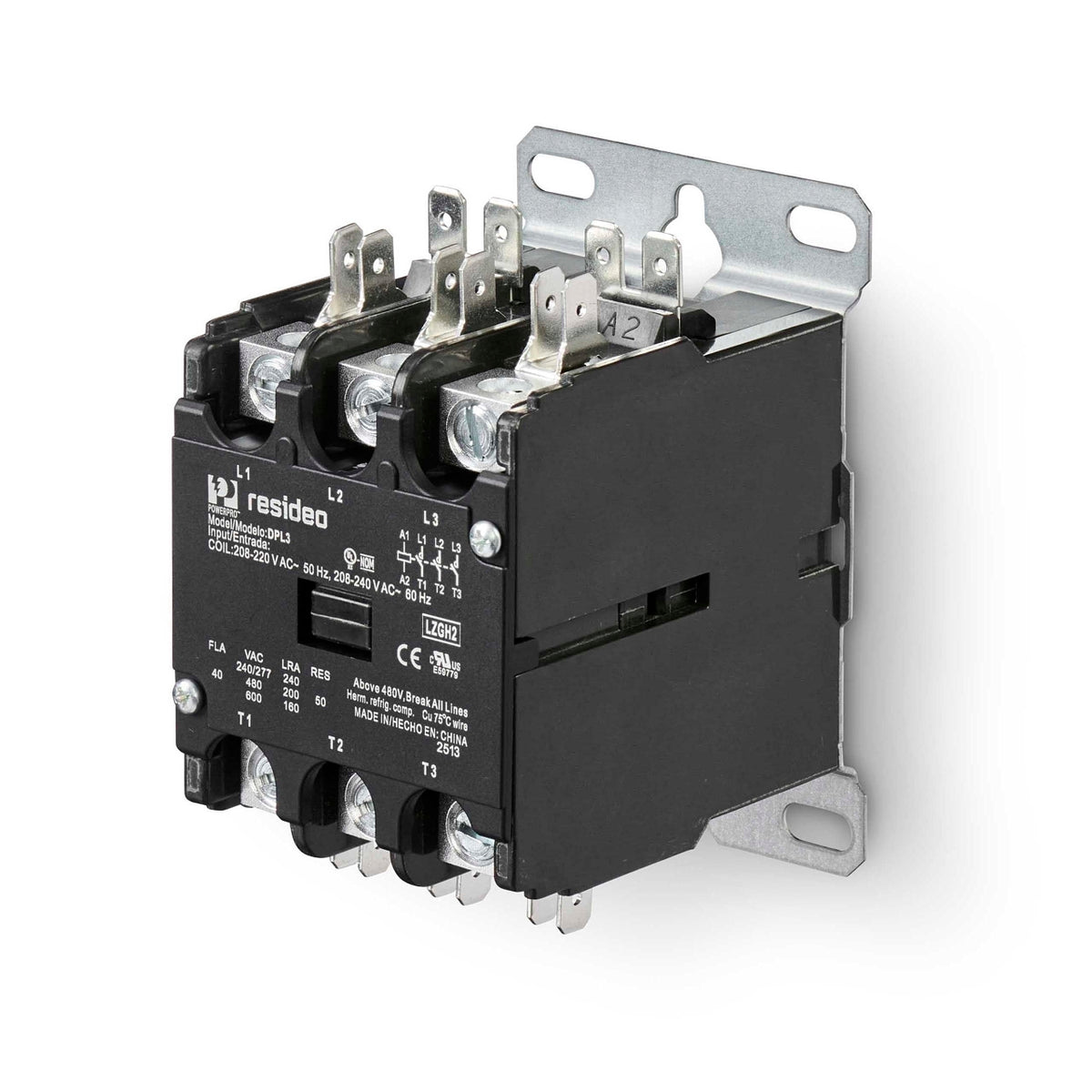

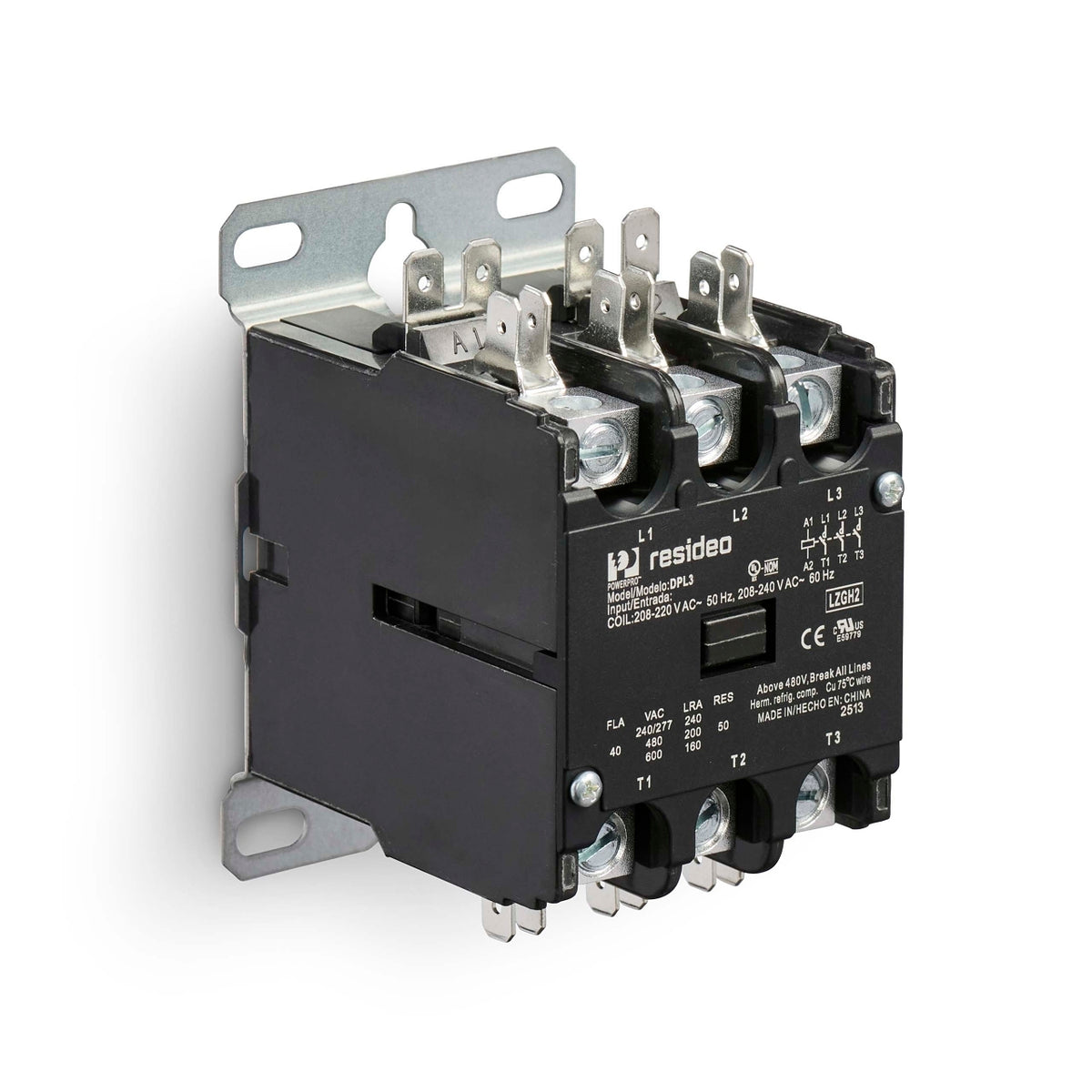

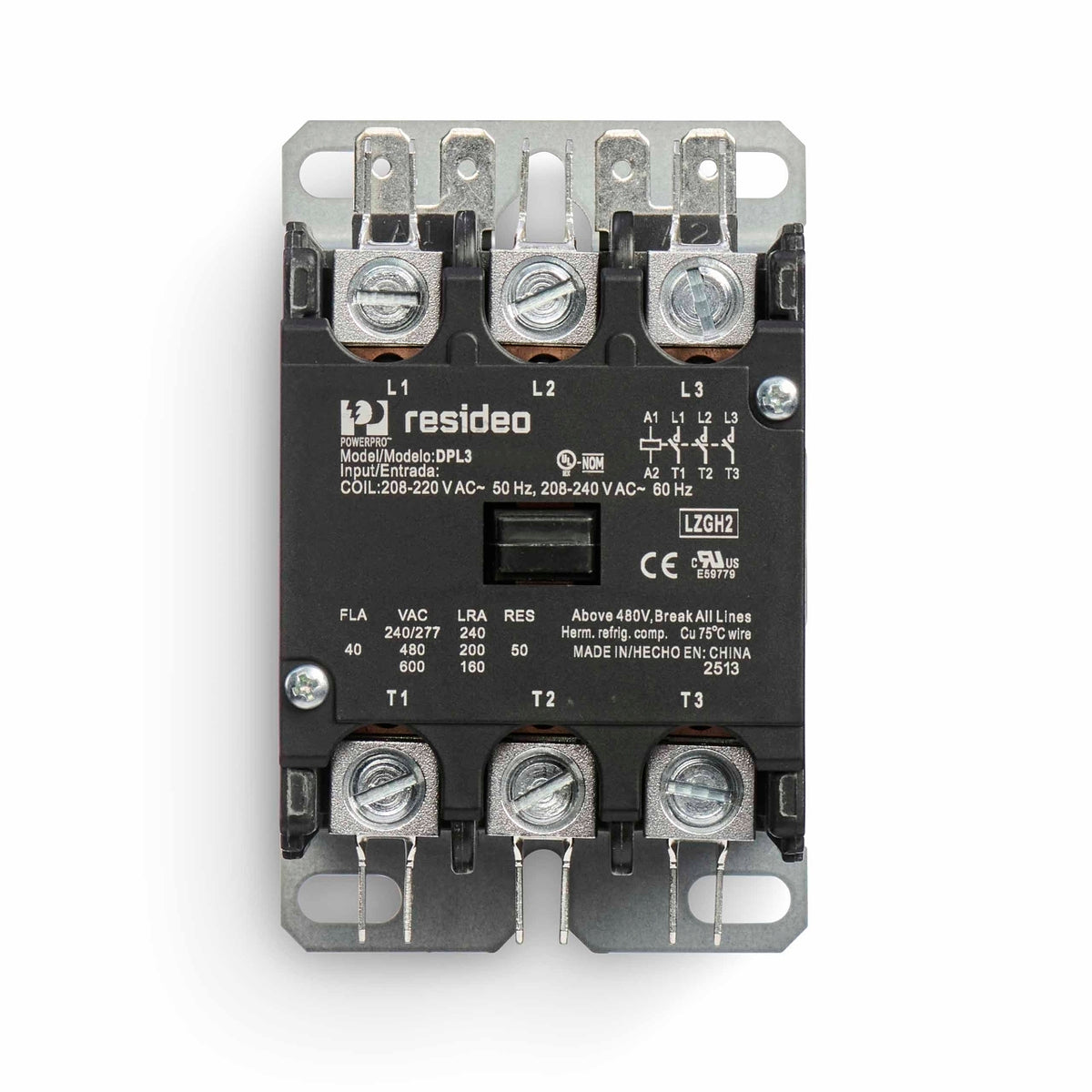

Resideo DPL3050A5002/U Definite Purpose Contactor, A2L Compliant

Item #: HONE-DPL3050A5002/U
Mfr. part #: DPL3050A5002/U
UPC: 194159018006

Key specifications

Coil Rating Voltag24 V ac
Coil Connection Si1/4 in
Coil Connection TyQuick Connect
Number of Poles3 Poles
Operating Frequenc50 Hz, 60 Hz

View all specifications

$186.06

Free shipping on orders $99+
30-day returns on unused items. Details
Secure checkout

Need help with this part?

(404) 678-9908 Chat with a product specialist Request a quote

Brand	Resideo
Manufacturer part #	DPL3050A5002/U
Application	PowerPro Definite Purpose Contactor
Approvals and Standards	UL Recognized Component: File No. E220475/ E59779, Guide No. LZGH2, LZGH8
Coil Rating Voltage	24 V ac
Coil Connection Size	1/4 in
Coil Connection Type	Quick Connect
Number of Poles	3 Poles
Operating Frequency	50 Hz, 60 Hz
Electrical Connection Type	Box lug w/ dual .250'' quick connect terminals
Switch Action	3PST
Ambient Operating Temperature (Min)	-13 °F, -25 °C
Ambient Operating Temperature (Max)	158 °F, 70 °C
Product Height	3.3 in, 84 mm
Product Width	4 in, 102 mm
UPC	194159018006

Definite purpose contactor that is A2L compliant.

Features

Compliant with A2L refrigerants. Shrouded coils on 3 pole (25A to 60A) models protect the coil from harsh environment factors
Moisture proof epoxy is used to encapsulate the 3 pole 75A through 120A coils
Multiple mounting holes and slots for convenient, interchangeable mounting with most competitive devices
Traditional design meets many needs
Full array of replacement coils, contact sets and accessories available

Specifications

Brand: Resideo (Honeywell Home)
Manufacturer Part #: DPL3050A5002/U
Application: PowerPro Definite Purpose Contactor
Approvals and Standards: UL Recognized Component: File No. E220475/ E59779, Guide No. LZGH2, LZGH8
Coil Rating Voltage: 24 V ac
Coil Connection Size: 1/4 in
Coil Connection Type: Quick Connect
Number of Poles: 3 Poles
Operating Frequency: 50 Hz, 60 Hz
Electrical Connection Type: Box lug w/ dual .250'' quick connect terminals
Switch Action: 3PST
Ambient Operating Temperature (Min): -13 °F, -25 °C
Ambient Operating Temperature (Max): 158 °F, 70 °C
Product Height: 3.3 in, 84 mm
Product Width: 4 in, 102 mm
UPC: 194159018006
Country of Origin: CN
Category: Contactors
