Description

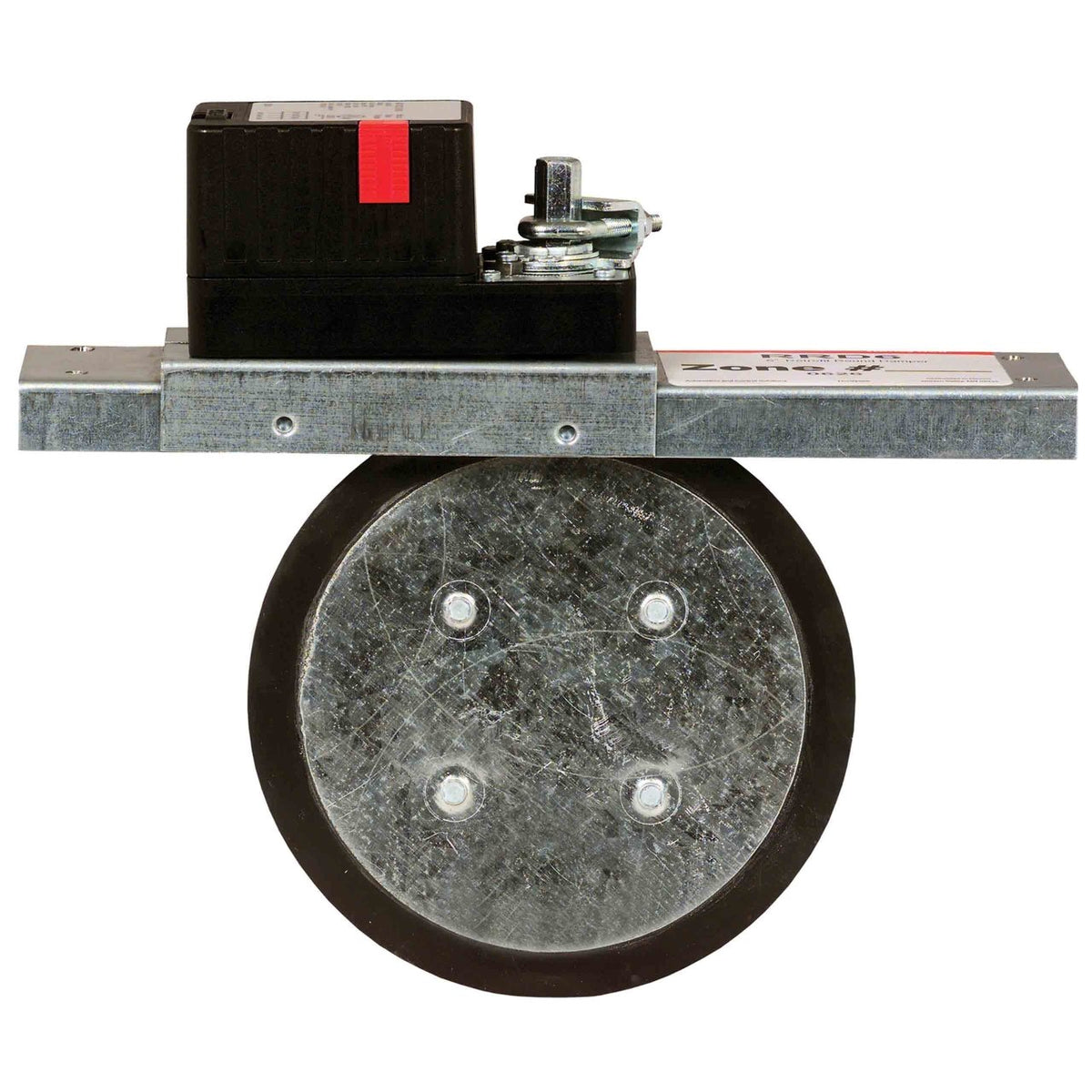

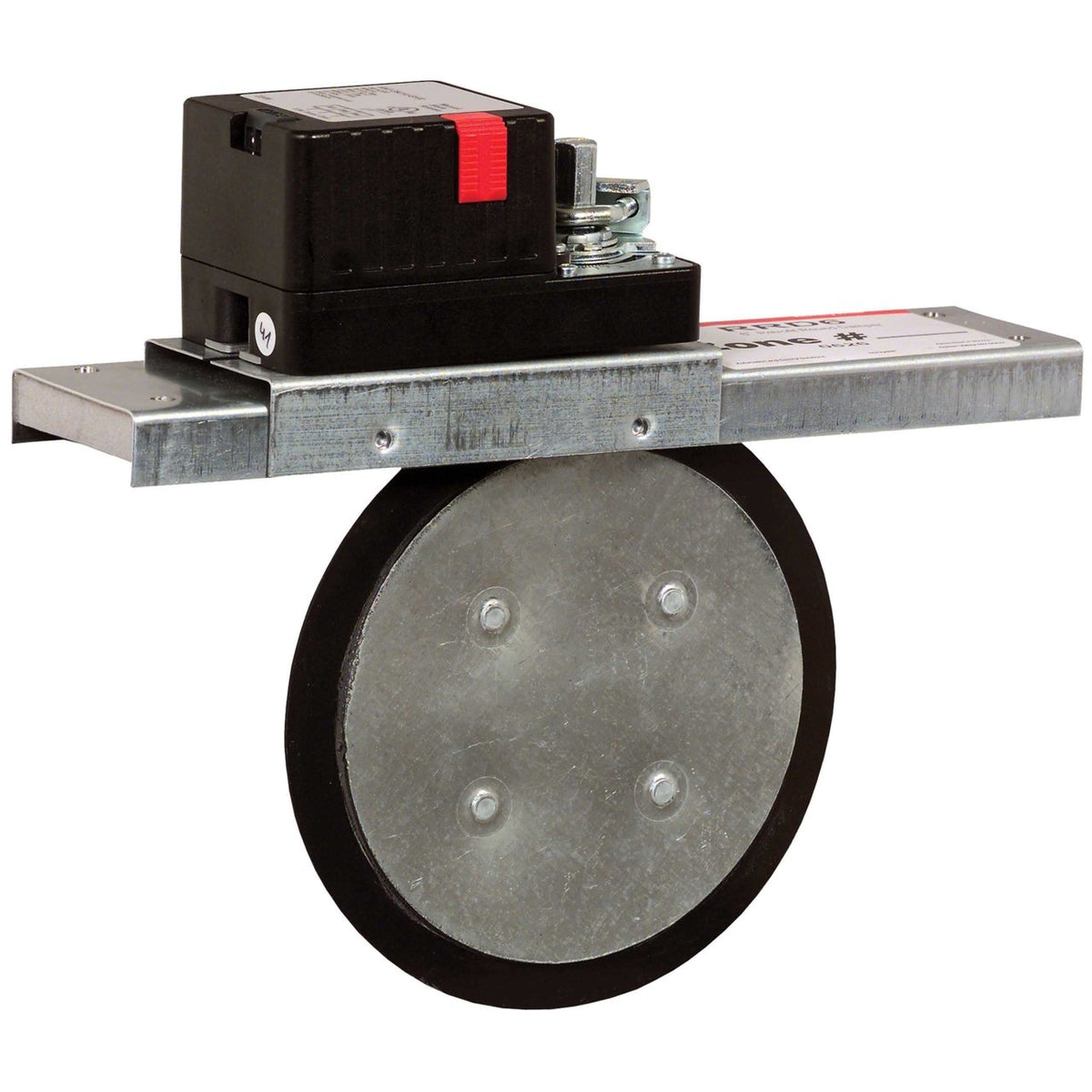

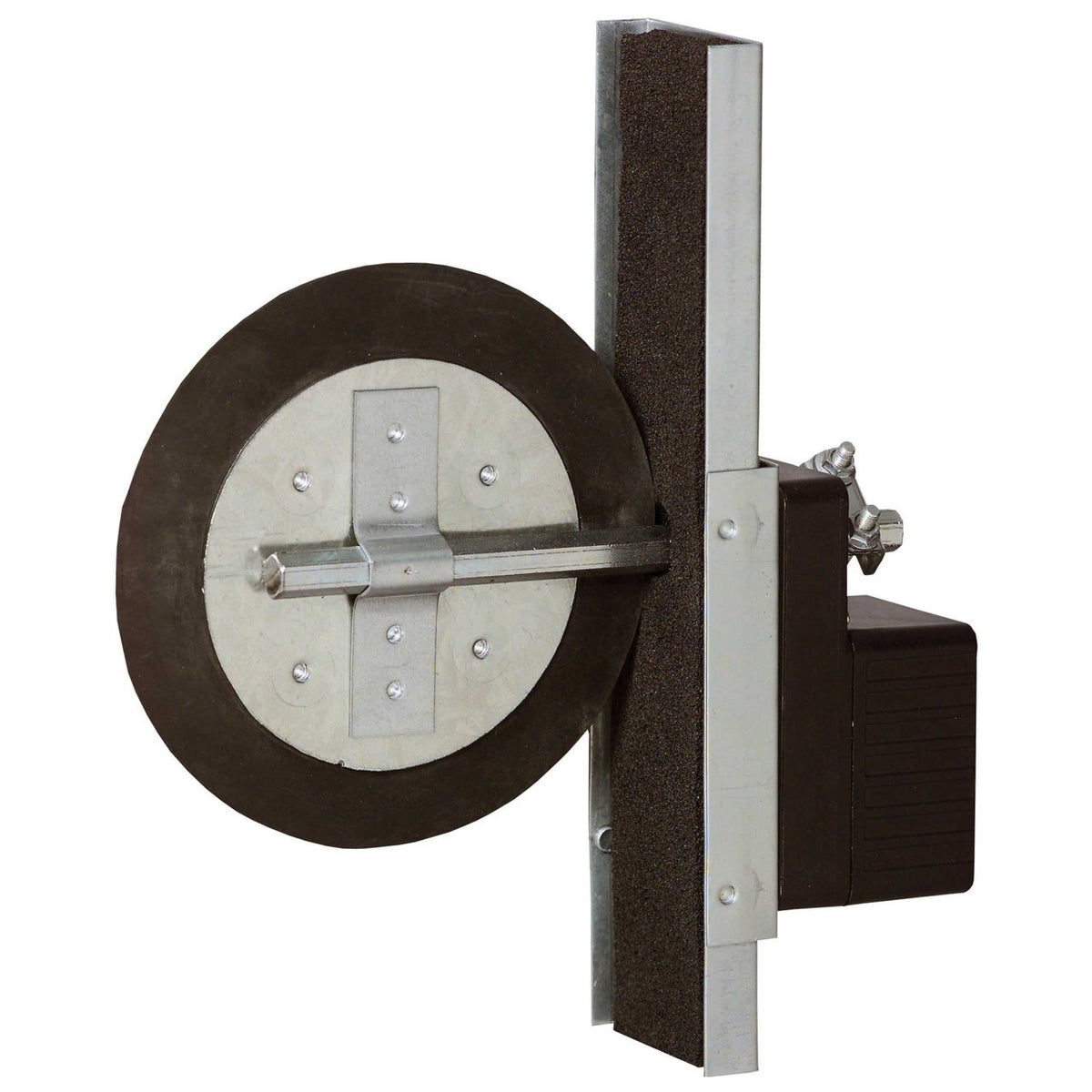

Retrofit round damper, 6 in.
Specifications
- Brand: Resideo (Honeywell Home)
- Manufacturer Part #: RRD6/U
- Damper Duct Shape Type: Round
- Damper Type: Retrofit
- Application: Retrofit Zone Damper
- Damper Material: Galvanized Steel
- Warranty: 5 Years
- Approvals and Standards: NEMA 1, UL listed
- Includes: Installation Instructions, Adhesive backed cutout template, 4 1-1/2 in self-drilling hex washer head screws, 12 Mounting screws
- Product Height: 3.18 in
- Product Length: 10.75 in, 273 mm
- Product Width: 2.63 in, 67 mm
- Product Weight: 3.8 lb
- Color: Stainless Steel, Black
- Actuator Power Consumption: 1.5 watts running
- Actuator Torque: 45 in. lb, 5 Nm
- Blade Material: Galvanized Steel
- Leakage: 3.4% at 0.5 in WC
- Actuator Closing Time: 90 sec
- Actuator Frequency: 50 Hz, 60 Hz
- Actuator Mounting Location: Direct Couple
- Actuator Open Action: Counter Clockwise
- Actuator Opening Time: 90 sec
- Actuator Voltage: 24 Vac
- Ambient Operating Temperature (Max): 122 °F, 50 °C
- Ambient Operating Temperature (Min): -40 °F, -40 °C
- Blade Gauge: 20 gauge
- Damper Gauge: 18 gauge
- Electrical Connection Type: Screw terminals for 14 to 26 gauge wire
- Number of Wiring Terminals: 3
- Pressure Drop (Max): < .05 in W.C.
- Product Diameter: 6 in
- Shipping and Storage Temperature (Max): 120 °F
- Shipping and Storage Temperature (Min): -20 °F
- UPC: 085267274173
- Country of Origin: MX
- Category: Zone Dampers
