Description

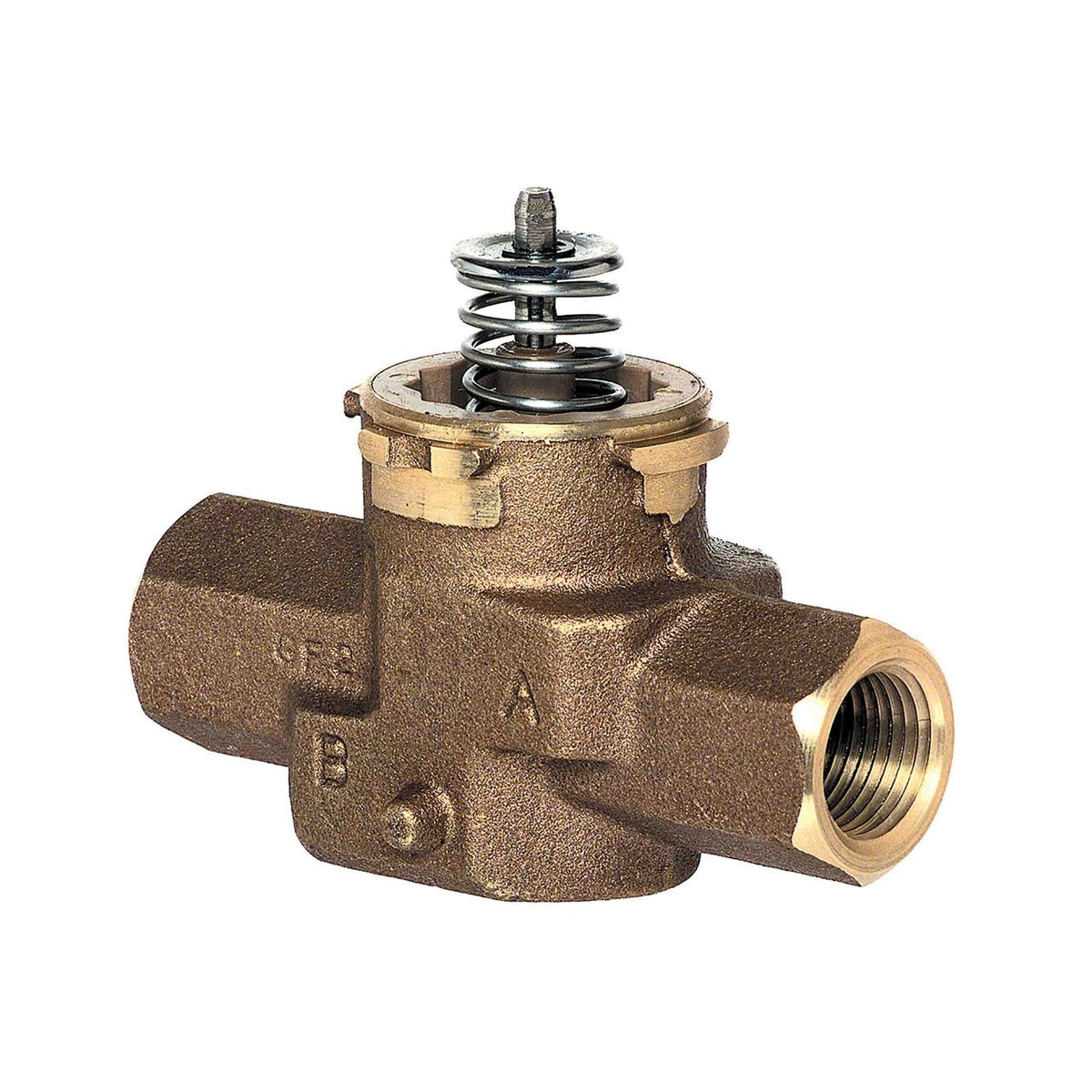

2-way VC valve, 0.5 in NPT, 1.1 Cv, 3 TDR, 60 psid close-off, equal percent flow.
Specifications
- Brand: Resideo (Honeywell Home)
- Manufacturer Part #: VCZBB3600/U
- Cartridge Material: Ryton and Noryl Plastic
- Controlled Media: 60% Glycol Mixture
- Approvals and Standards: CSA Certified
- Color: Bronze
- Includes: Valve, Cartridge Installation Wrench
- Product Weight: 0.59 lb
- Warranty: 5 years
- Ambient Operating Temperature (Min): 32 °F, 0 °C
- Ambient Operating Temperature (Max): 150 °F, 65 °C
- Connection Type: NPT
- Differential pressure for close-off (Max): 60 psi, 414 kPa (4 bar)
- Flow Coefficient: 1.3 Cv; 1.1 Kvs
- Media Temperature (Min): 34 °F, 1 °C
- Media Temperature (Max): 203 °F, 95 °C
- Operating Pressure (Max): 300 psi, 2068 kPa (20 Bar)
- Seal Material: EPDM Rubber
- Shipping and Storage Temperature (Min): -40 °F, -40 °C
- Static Pressure Rating: 300 psi, 2068 kPa (20 Bar)
- Valve Body Material: Bronze
- Valve Body Pattern: Two-way, Straight Through
- Valve Cartridge: Yes
- Valve Flow Characteristic: Modified equal percentage
- Valve Seat Material: EPDM O-ring seals on Noryl piston
- Valve Stem Material: Stainless Steel
- Valve Stem Travel: 0.4 in, 10 mm
- UPC: 085267313780
- Country of Origin: HU
- Category: 2-Way Zone Valve
