Caleffi Z46 Z-One 2-Way Zone Valve, Normally Closed with End Switch, 1" Sweat, 7.5 Cv, 24V

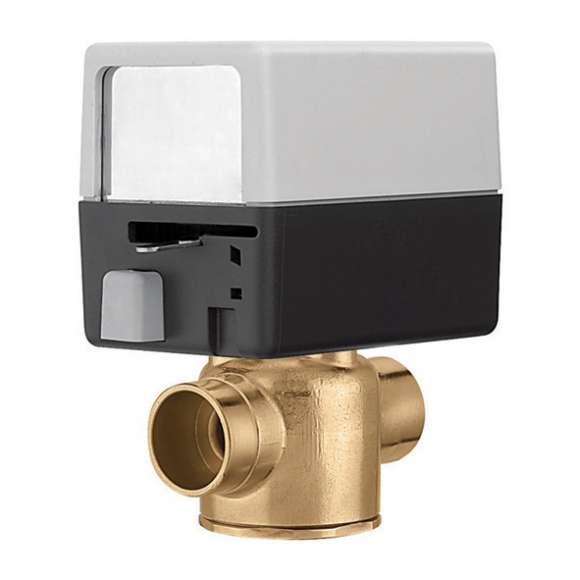

The Caleffi Z46 is a Z-One 2-way motorized zone valve with a normally closed 24V actuator with auxiliary end switch, assembled on a 1" sweat valve body.

Z-One zone valves open and close individual zones in hydronic heating systems on a call from a 24V thermostat or zone control. The end switch closes when the valve opens, so it can be used to enable the boiler or zone circulator. This model is rated for a 7.5 Cv flow capacity, a 20 psi maximum close-off pressure and a maximum fluid temperature of 240°F.

Before ordering: confirm that the 1" sweat connection matches your piping, that the control circuit is 24V, and that the zone valve is meant to stay closed without power (normally closed). The pump differential across the closed valve should not exceed 20 psi.

Specifications

• Brand: Caleffi
• Manufacturer Part #: Z46
• Series: Z-One
• Type: 2-Way Zone Valve, Normally Closed
• Size: 1"
• Connection: Sweat
• Flow Capacity (Cv): 7.5
• Max Close-Off Pressure: 20 psi
• Max Temperature: 240°F
• Voltage: 24V
• End Switch: Yes
• UPC: 8016615964868
• Category: 2-Way Zone Valve

Documents

• Technical Data Sheet (PDF)
• Installation & Operation Manual (PDF)
• Submittal Sheet (PDF)
• Product Brochure (PDF)
