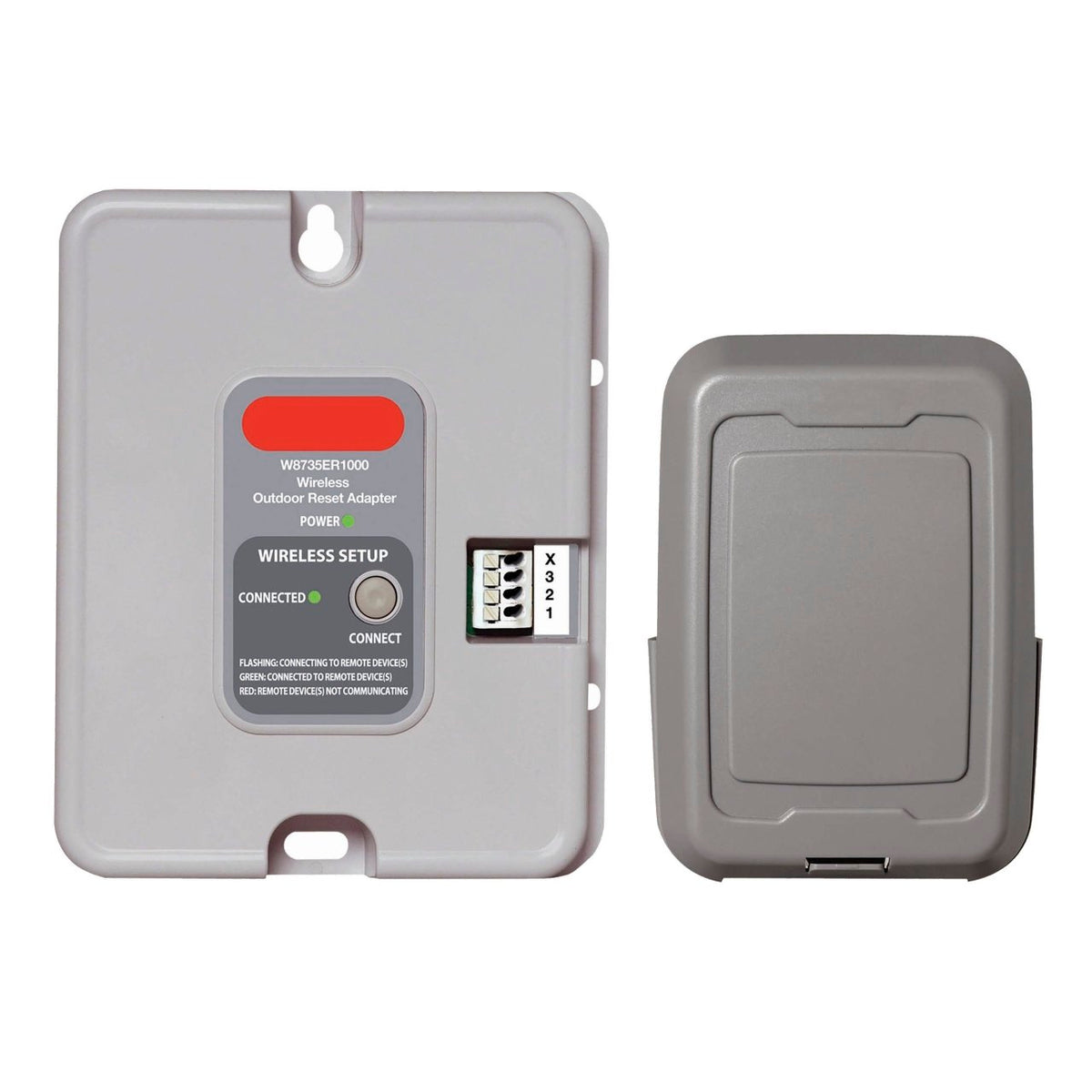

Resideo W8735Y1000/U Wireless Outdoor Temperature Sensor

Wireless sensor for outdoor temperature.

Features

• RedLink® wireless communication protocol
• Fast wireless connection to outdoor sensor
• Enables Boiler Outdoor Temperature Reset
• Enables Warm Weather Shutdown, nables Boost Override
• Simple low-voltage, 3-wire installation to combustion control (3 EnviraCOM)
• EnviraCOM™/RedLink Enabled

Specifications

• Brand: Resideo (Honeywell Home)
• Manufacturer Part #: W8735Y1000/U
• Application: Wireless Outdoor Reset Module
• For Use With: L7224/L7248 Series 2 Aquastats, S93 Integrated Boiler Controls, R7910 SOLA Controls, C7089U1006
• Includes: C7089R1013 Wireless Outdoor Sensor, W8735ER1000 Wireless Outdoor Reset Module
• Supply Voltage: 24 Vac
• Power Supply Frequency: 60 Hz
• Number of LEDs: 3
• EnviraCOM: Yes
• RedLINK: Yes
• Ambient Operating Temperature (Max): 150 °F, 66 °C
• Ambient Operating Temperature (Min): -30 °F, -34 °C
• Operating Relative Humidity (Max): 95% Non-condensing
• Operating Relative Humidity (Min): 0% Non-condensing
• Warranty: 1 Year
• Color: Gray
• Product Height: 5.56 in, 141 mm
• Product Length: 4.56 in, 116 mm
• Product Weight: 1 lb
• Product Width: 1.25 in, 32 mm
• Hazmat Information: LITHIUM METAL BATTERIES in compliance with Section II of PI969
• UPC: 085267484719
• Country of Origin: MX
• Category: Sensors
