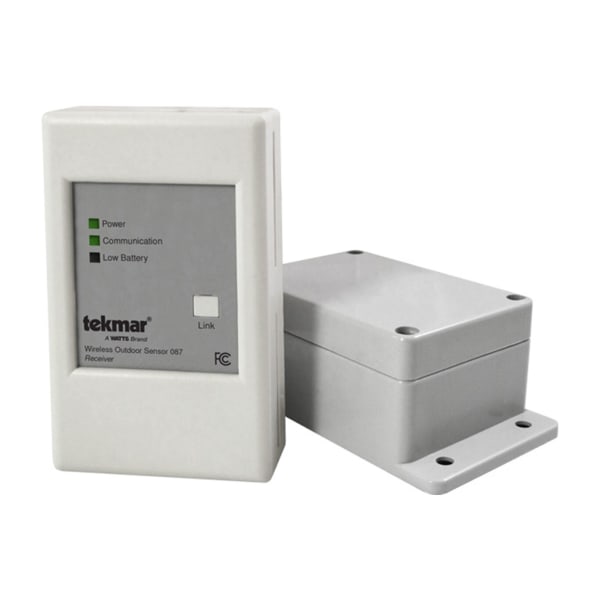

tekmar Control Systems Outdoor Sensor - 087

The tekmar 087 is a wireless outdoor sensor that provides outdoor temperature measurement without running wires outside. It comes as a pre-linked transmitter and receiver pair.

Key features

• Works with tekmar controls and thermostats and with other manufacturers' products
• Selectable 10K (Type 2 and Type 3), 5K, 12K and 20K resistance output
• Receiver shows low transmitter battery status, plus power and communication lights
• Open-air range of 5,000 ft (1,500 m); indoor range of 8 walls or 250 ft (75 m)
• Battery life of 10 years or more; 1.5 V lithium AA batteries included

Specifications

• Brand: tekmar
• Manufacturer part number: 087
• Transmitter operating range: -40 to 140°F (-40 to 60°C)
• Receiver operating range: Indoor use only, 32 to 122°F (0 to 50°C), 90% RH non-condensing
• Receiver power: 24 V (ac) ±10%, 1 VA
• Sensor type: NTC thermistor: 5K, 10K Type 2, 10K Type 3, 12K, 20K
• Enclosure: Transmitter white ABS, NEMA 4X; receiver white PVC, NEMA 1
• Approvals: FCC and IC
• UPC: 779655008708

What's included

• Transmitter and receiver (pre-linked)
• 1.5 V lithium AA batteries

Electrical connections must be made by a qualified installer following tekmar's instructions and local code.
