Description

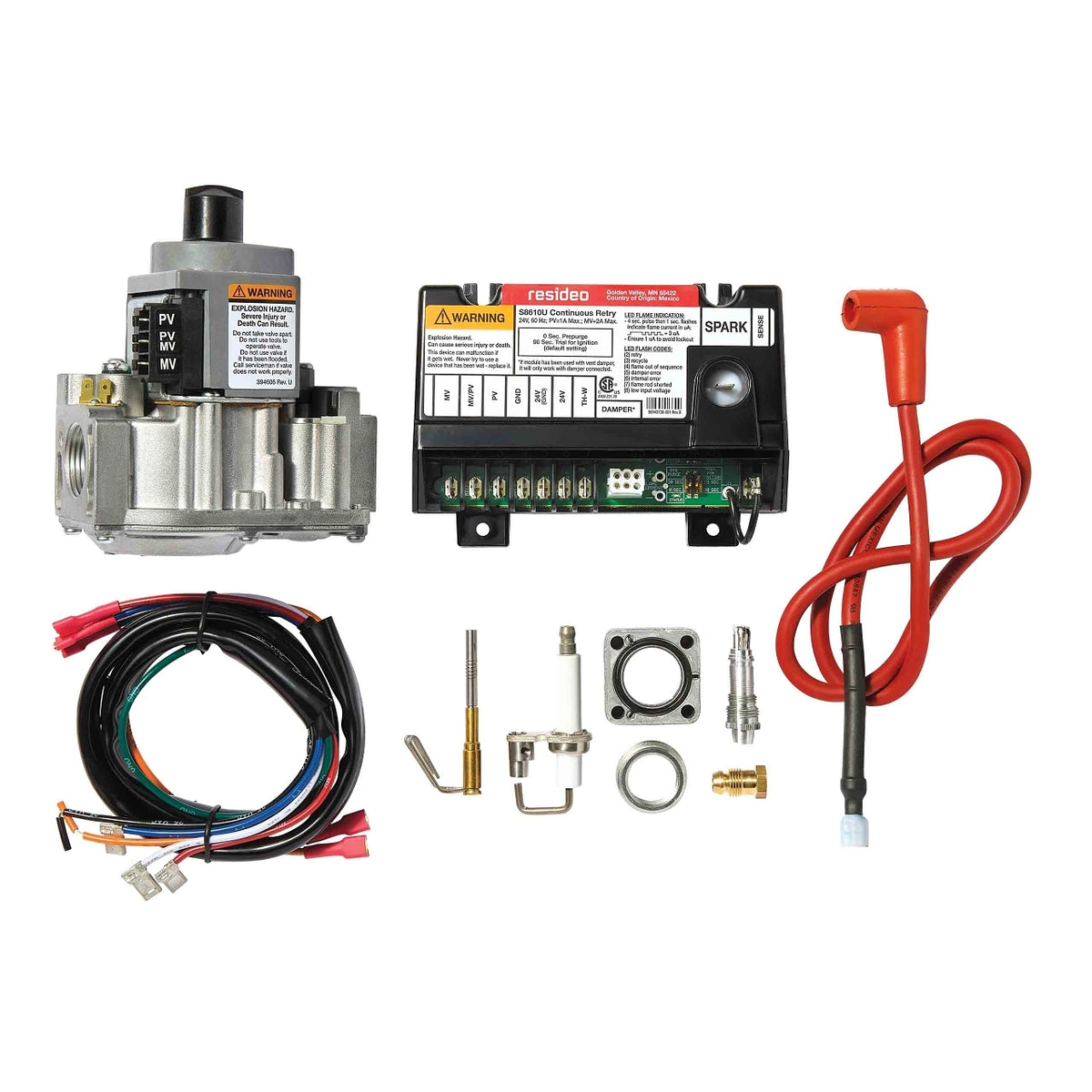

Intermittent pilot kit with a VR8304M combination gas control, S8610U intermittent pilot gas burner control, 393044 cable harness assembly and 394800-30 ignition cable.
Features
- For use with natural or LP gas
- Provides ignition sequencing, flame monitoring and safety shutoff for intermittent pilot warm air furnaces and heating appliances
Specifications
- Brand: Resideo (Honeywell Home)
- Manufacturer Part #: Y8610U6006/U
- Application: Pilot Ignition
- Type of Fuel: Natural Gas, LPG
- Ignition Type: Intermittent Pilot
- Ignition System Type: Intermittent Pilot
- Pilot Type: Intermittent
- Ignition Source: Internal high voltage spark generator
- Ignition Between Trail Time: 5 minute delay after failed trial for ignition.
- Ignition Sequence: Continuous Retry
- Ignition Trial Time: 15 or 90 seconds
- Ignitor Electrical Rating: 24 V AC
- Pre-Purge: 0 or 30 seconds
- Lockout Timing: 15 or 90 seconds
- Flame Failure Response Time: 2 seconds maximum
- Flame Sense: Two Rod, Single Rod
- Typical Gas Control: VR8204, VR8304
- Maximum Valve Load: 1A Pilot, 2A Main @ 24Vac
- Frequency: 60 Hz
- Operating Voltage: 24 Vac
- Compatible With: Intermittent pilot warm air furnaces and heating appliances
- Includes: VR8304M3558 gas valve, Ignition module, Pilot burner hardware, Ignition cable, Wiring harness
- Product Height: 3.94 in
- Product Length: 5.44 in
- Product Width: 2.63 in
- UPC: 085267311526
- Country of Origin: MX
- Category: Gas Ignition Components
