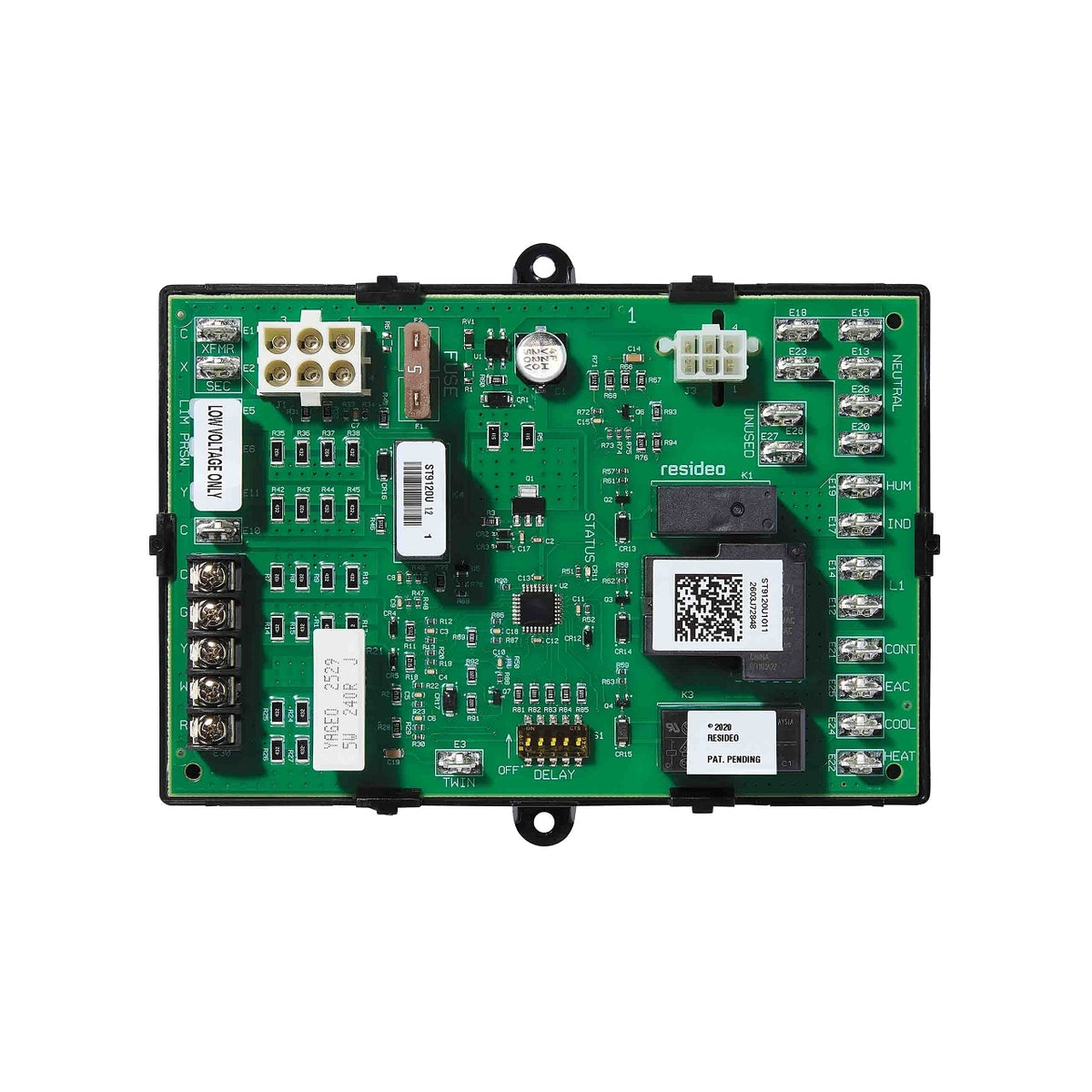

Resideo S9200U1000/U Universal Integrated Furnace Control, Single Stage Hot Surface Ignition

Universal integrated furnace control for single-stage hot surface ignition applications, from the Tradeline series.

Specifications

• Brand: Resideo (Honeywell Home)
• Manufacturer Part #: S9200U1000/U
• Application: Single stage warm air furnaces
• Ignition Type: Direct Hot Surface
• Ignition System Type: Hot Surface Ignition
• Ignition Trial Time: 4, 6, or 8 seconds
• Ignitor Electrical Rating: 5 A resistive @ 120VAC
• Ignition Trials To Lockout: 3; 2 tries if flame is not sensed
• Interpurge: 60 Seconds
• Postpurge: 15 Seconds
• Pre-Purge: 30 seconds
• Flame Failure Response Time: 2 Seconds max @ 1µA
• Heat Fan Off Delay Timing: 60, 90, 120, or 180 Seconds
• Heat Fan On Delay Timing: 30 or 60 seconds
• Cool Fan Off Delay Timing: 0 or 60 seconds
• Cool Fan On Delay Timing: 5 seconds
• Typical Gas Control: Any 24Vac redundant, direct ignition gas control rated at 1.5A or less. Honeywell VR8205 recommended.
• HSI Warmup Time: 17/27 or 30/30 seconds
• Warranty: 1 Year
• Compatible With: 24Vac redundant, direct ignition gas control rated at 1.5A or less. Honeywell VR8205 recommended, Resideo VR8205 recommended
• Product Height: 4.13 in
• Product Length: 6.13 in
• Product Width: 1.5 in
• Ambient Operating Temperature (Max): 175 °F
• Ambient Operating Temperature (Min): -40 °F
• UPC: 085267316149
• Country of Origin: MX
• Category: Gas Ignition Components
