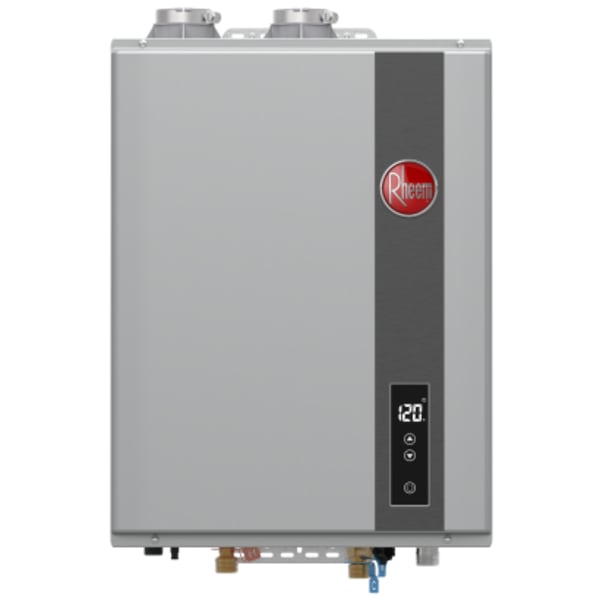

Rheem® 120,000 Btu/h RTGH Series Super High Efficiency Condensing Tankless Natural Gas Water Heater for Indoor Installation RTGH-68DVLN-3

Item #: RHEE-RTGH-68DVLN-3
Mfr. part #: RTGH-68DVLN-3

Key specifications

FinishGrey
Fuel TypeNatural Gas
Max input120,000 Btu/h
Installation TypeIndoor
UEFTBD

View all specifications

$1,487.18

Ships from Seattle, WA
30-day returns on unused items. Details
Secure checkout

Shipping details

Shipping weight: 58.2 lb

Installation by a licensed gas technician is required. Confirm the part against your appliance's parts list.

Need help with this part?

(404) 678-9908 Chat with a product specialist Request a quote

Brand	Rheem
Manufacturer part #	RTGH-68DVLN-3
BTU Category	100-200,000 BTU
BTU Input Maximum	120,000 Btu/h
BTU Input Minimum	11,000 Btu/h
Cold & Hot Connections	3/4" MIP
Depth	9-3/4"
DHW Temperature Range	85-140 deg F
Efficiency Tier	90% and above
Elevation Rating	8,400'
Finish/Color	Grey
Fuel Type	Natural Gas
Gas Inlet	3/4" MIP
Heat Exchanger Type	Copper & Stainless
Height	27-1/2"
Hot Water Flow	3.3 GPM @ 70 Degree Rise
Installation Type	Indoor
Uniform Energy Factor (UEF)	TBD
Vent Material	Polypropylene, CPVC, SCH40 PVC
Vent Size	2"/3"
Vent Type	Power Direct Vent
Warranty	12/5/1
Weight	82 Lbs
Width	18-1/2"

Rheem RTGH-68DVLN-3 is the Rheem Manufacturing 120,000 Btu/h RTGH Series Super High Efficiency Condensing Tankless Natural Gas Water Heater for Indoor Installation.

It is a Rheem tankless gas water heater that heats water on demand instead of storing it in a tank, freeing floor space and avoiding standby losses. Rheem offers residential, commercial and tankless water heating lines, and replacement parts for this unit are identified by its model number.

Check the BTU/h input, installation location (indoor or outdoor), fuel type and venting requirements. Gas line size is critical on tankless units, so confirm the supply can deliver the full rated input.
