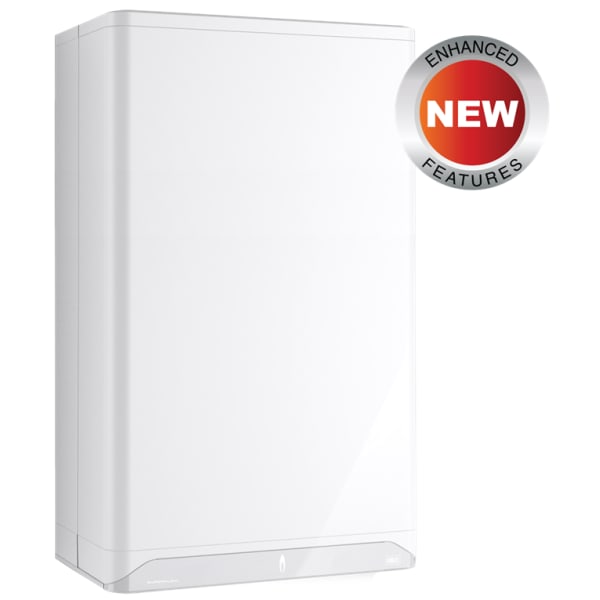

IBC 014-011 SFT-199-1 Tankless Water Heater

The IBC SFT-199-1 (IBC part 014-011) is a fully condensing gas tankless water heater from IBC's SFT Superflow line. It heats domestic water on demand as it flows through the unit, supplying continuous hot water instead of storing it in a tank.

Key features

• Fully condensing design with a two-in-one aluminum heat exchanger
• IBC states the SFT has only four moving parts
• Input modulates from 28,500 to 199,000 BTU/h
• Approved for installation up to 10,000 ft elevation

Specifications

• Brand: IBC
• Model: SFT 199 Superflow (SFT-199-1)
• Manufacturer part number: 014-011
• Input (natural gas or propane): 28,500 to 199,000 BTU/h
• Uniform Energy Factor (UEF): 0.89
• Hot water flow: 0.5 GPM minimum to activate; 7 GPM maximum
• Continuous flow by temperature rise: 7.2 GPM at 50°F, 5.2 GPM at 70°F, 4.0 GPM at 90°F, 3.0 GPM at 120°F
• Water connections: 3/4" male NPT cold and hot
• Gas inlet: 3/4" male NPT; 5 to 14 in. w.c. supply pressure
• Venting: 3" Schedule 40 PVC, CPVC or PP exhaust and intake; up to 120 ft equivalent length each side in 3" (35 ft in 2")
• Condensate outlet: 3/4" hose
• Water temperature range: 34 to 149°F
• Max. operating pressure: 150 psig
• Electrical: 120 V, 60 Hz
• Weight: 68 lb empty
• Approved altitude: Up to 10,000 ft

Gas, venting, water and electrical connections must be made by a licensed installer following the manufacturer's installation manual and local codes.
