| Commercial or Residential | Primarily Commercial |
| Finish/Color | Polished Chrome |
| Finish Name | Polished Chrome |
| Fixture Connection | Top |
| Gallons per Flush | 1.6 |
| Height | 4.375 |
| Operating Mechanism | Single |
| Operating Pressure | 15-80 |
| Power Type | Battery |
| Type | Sensor Operated |
Description

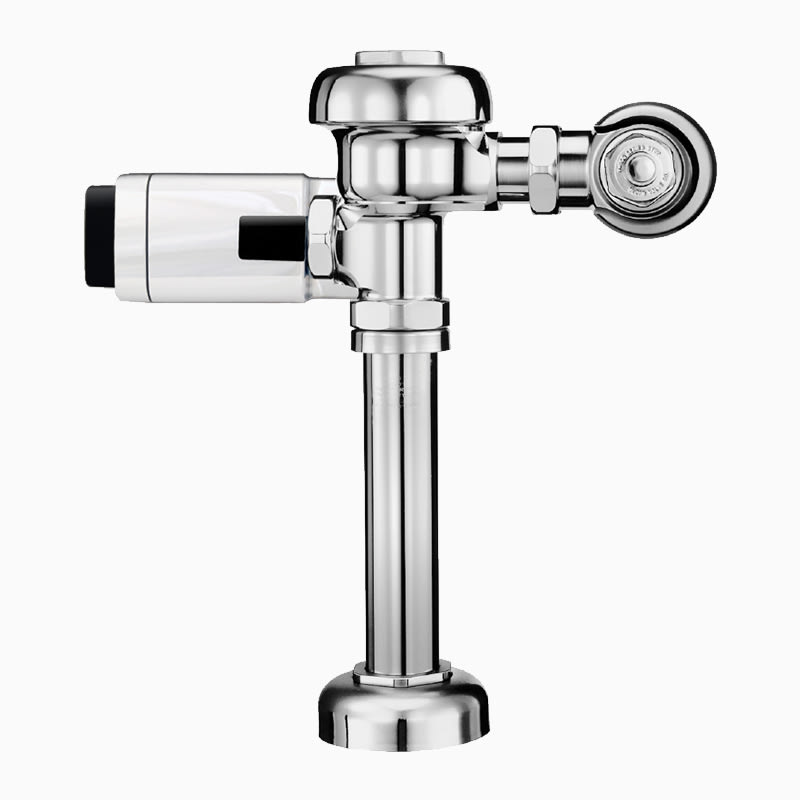

Sloan 3980095 is a Regal® 111 XL SFSM battery-powered sensor flushometer in Polished Chrome for toilets.
The manufacturer lists an ADA-compliant, non-hold-open handle, control stop plug, adjustable tailpiece and high copper, low zinc brass castings for dezincification resistance. Flush accuracy is controlled by Para-Flo technology, and the valve is listed as compliant with the applicable sections of ASSE 1037.
The valve is listed at 1.6 gallons per flush with a top fixture connection and battery power. Match the flush volume to the fixture rating and plan for battery replacement. Installation, maintenance and repair guides are linked below.
Specifications
- Brand: Sloan
- Manufacturer Part #: 3980095
- Finish: Polished Chrome
- Fixture Connection: Top
- Gallons per Flush: 1.6
- Operating Mechanism: Single
- Operating Pressure: 15-80
- Power Type: Battery
- Type: Sensor Operated
- Commercial or Residential: Primarily Commercial
- UPC: 671254412859
- Category: Toilet Flush Valves
Documents
- Installation Guide (PDF)
- Maintenance Guide (PDF)
- Repair and Maintenance Guide (PDF)
