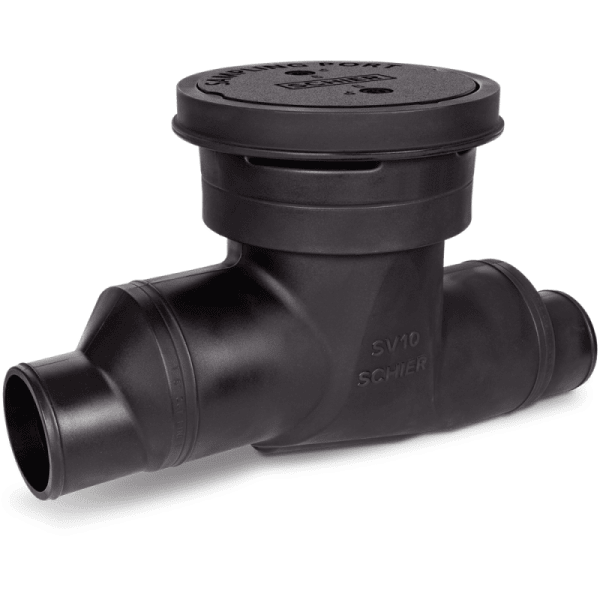

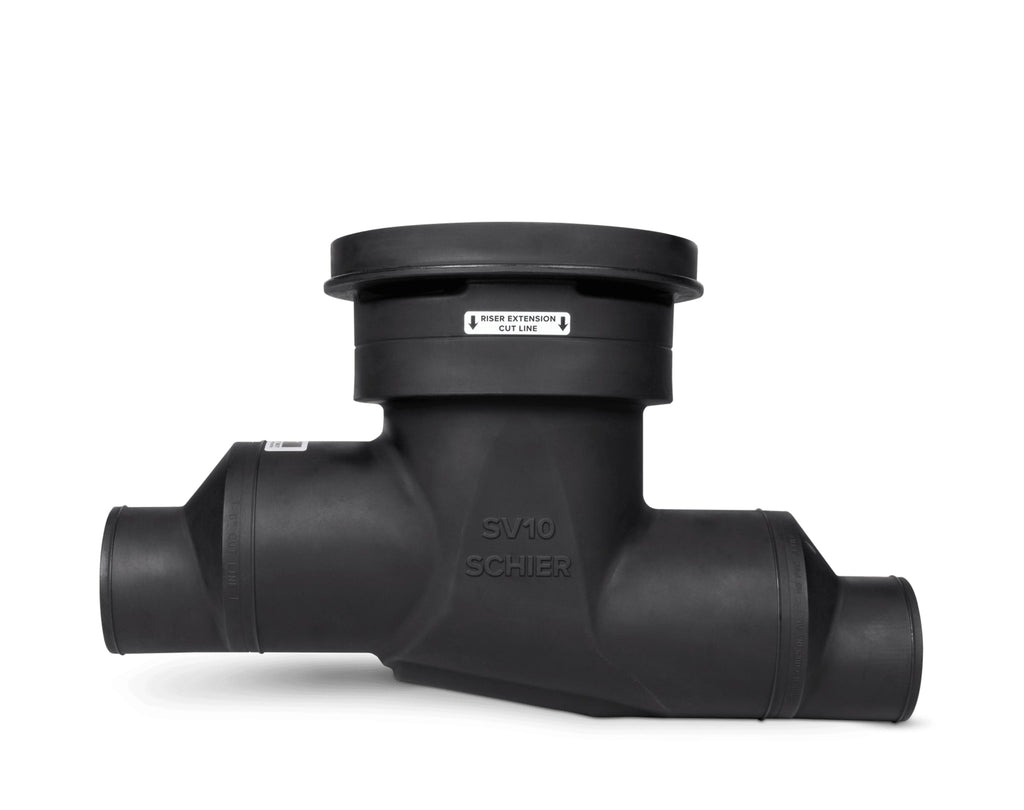

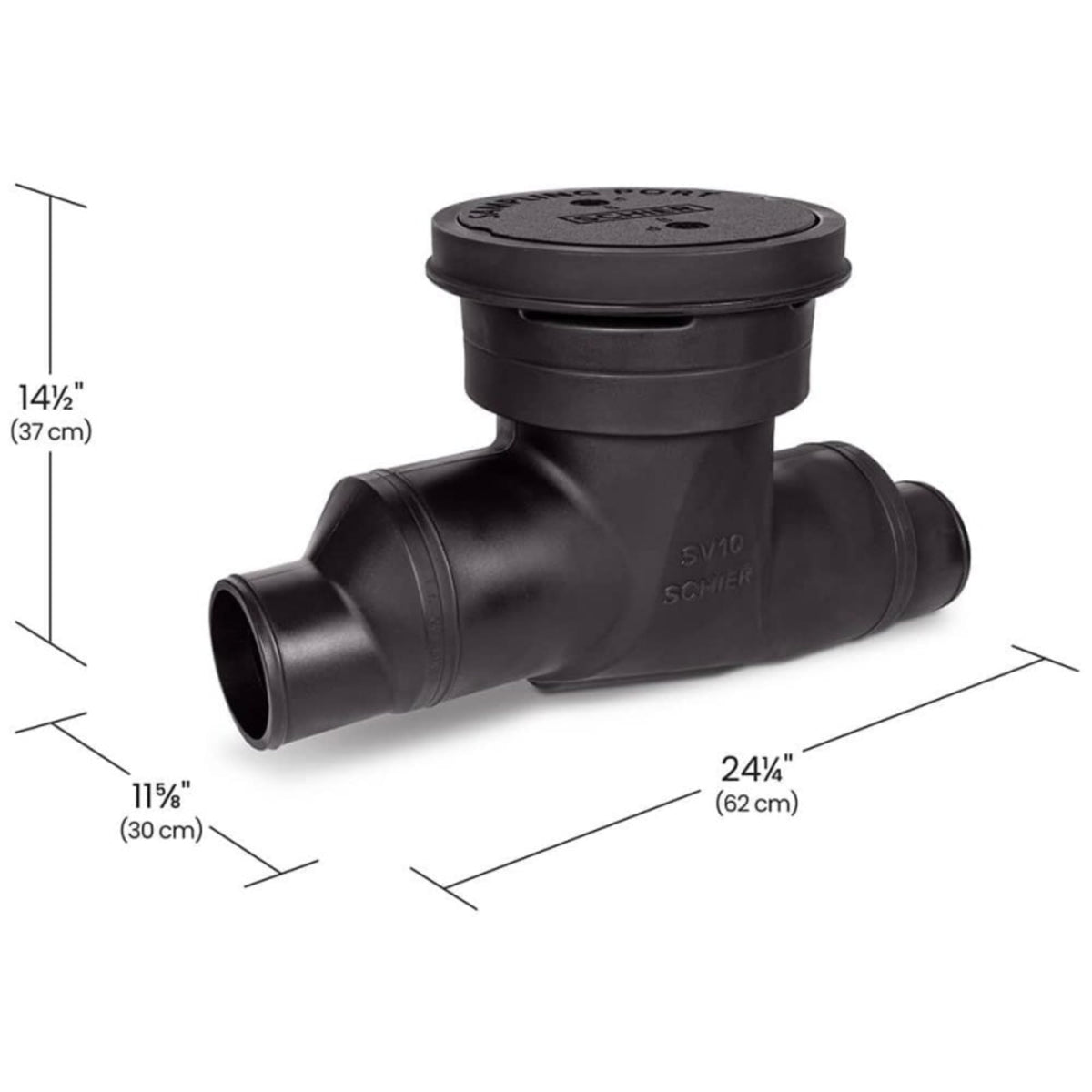

Schier 8065-001-01 SV10 - Wastewater Sampling Port

Name: Schier 8065-001-01 SV10 - Wastewater Sampling Port
Brand: Schier
SKU: SCHI-8065-001-01
Price: 669.19 USD
Availability: InStock

SchierSKU: SCHI-8065-001-01

Price:

$669.19

Stock:

Only 4 units left

Quantity:

Usually ships in 1–2 business days.

Questions? Call (404) 678-9908 or chat with us.

Need 10+ or a project quote? Request a quote · Pros: open a trade account

Ships from Seattle, WA · 30-day returns · Manufacturer warranty

Shipping details

Shipping weight: 9.9 lb

Connection Size	4" and 6"
Connection Type	Plain End
Cover	Cast iron
Cover Ratings	24" gas/water tight cover, H-20 rated, proof-load tested to 40,000 lbs. Recommended for outdoor installation.
Type	Adapters

The Schier SV10 (8065-001-01) is a Sewer Viewer wastewater sampling and inspection port. It gives 8" visual and sampling access to the waste stream in commercial drain lines, such as restaurants, schools, labs and industrial facilities, and can be installed downstream of any Schier grease interceptor.

Key features

Rotomolded polyethylene body
8" access for viewing and sampling
Offset inlet and outlet, with the outlet 2" lower to make horizontal sample grabs easier
Safety Star access restrictor to help prevent accidental entry
Indoor or outdoor use, above or below grade (below grade with the FCR10 riser)

Specifications

Brand: Schier
Manufacturer part number: 8065-001-01
Model: SV10
Material: Rotomolded polyethylene
Connections: Combination plain-end inlet/outlet for 4" and 6" standard flexible couplings
Load rating: Pedestrian and H-20 traffic areas
