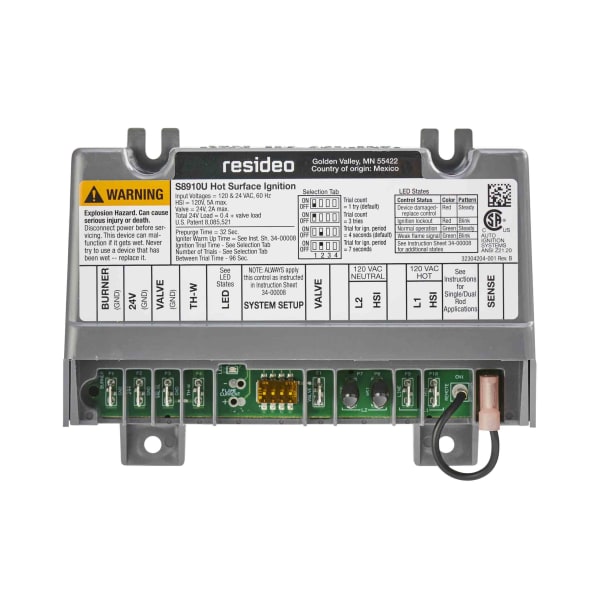

Resideo S8910U3000/U Universal Hot Surface Ignition Module

Item #: HONE-S8910U3000/U
Mfr. part #: S8910U3000/U
UPC: 085267647489

Key specifications

Frequency50 Hz; 60 Hz
Ambient Temperatur-40 F to +175 F
PrePurge32 seconds
Ignition System TyDirect Hot Surface Ignition
Typical Gas ControVR8205, VR8305

View all specifications

$220.34

Free shipping on orders $99+
30-day returns on unused items. Details
Secure checkout

Shipping details

Shipping weight: 0.75 lb
Box size: 6.4 × 4.5 × 3.05 in

Installation by a licensed gas technician is required. Confirm the part against your appliance's parts list.

Need help with this part?

(404) 678-9908 Chat with a product specialist Request a quote

Brand	Resideo
Manufacturer part #	S8910U3000/U
Frequency	50 Hz; 60 Hz
Electrical Ratings	24 Vac
Ambient Temperature	-40 F to +175 F
Dimensions	5 1/4 in. high x 4 1/16 in. wide x 1 15/16 in. deep
CSA	Design Certified
Flame Failure Response Time (sec)	1.5 sec.
PrePurge	32 seconds
Ignition System Type	Direct Hot Surface Ignition
Ignition Sequence	The number of trials for ignition and trial time is determined by the dip switch selection.
Typical Gas Control	VR8205, VR8305
Type of Gas	Natural or LP
Flame Sense	Single Rod or Two Rods
Ignition Source	Line Voltage (120 VAC) Hot Surface Element (Norton Model 201 or 270)
Ignition Trials To Lockout	1 or 3
Lockout Timing	4 sec. or 7 sec.
Ignition Trial Time (sec)	4 sec. or 7 sec.
Maximum Valve Load @ 24 Vac (Amps)	2A
Typical Ignition Hardware	Norton 201, Norton 271, Q354
Between Trial Time (sec)	(2) 96 sec (32 Seconds Prepurge and 64 seconds interpurge)
UPC	085267647489

Universal hot surface ignition module from Resideo (Honeywell Home), part number S8910U3000/U.

The ignition control runs the light-off sequence and holds the safety logic: purge, energise the igniter, open the gas, look for flame, and lock out if it does not find one. The trial-for-ignition period is how long it will let gas flow while waiting for proof of flame, and it is a safety figure, not a preference.

Universal means one module covers a range of hot surface applications, with the timings selected on the module rather than fixed in the part number. That is what makes it a truck stock item instead of an order-per-job part.

Gas appliance safety. A gas valve must match the appliance it is fitted to — ignition system, capacity, inlet pressure and gas type. Replacement is work for a licensed gas technician, and the appliance manufacturer's parts list is what decides the correct valve, not the physical fit of the threads. If the replacement does not match, the appliance can fail to light, fail to prove flame, or overfire.
