Watts 0063235 2" Lead Free Double Check Valve Backflow Preventer Assembly, Quarter Turn Shutoff, Single Top Entry

Roll over image to zoom in Click on image to zoom

Watts 0063235 2" Lead Free Double Check Valve Backflow Preventer Assembly, Quarter Turn Shutoff, Single Top Entry

Name: Watts 0063235 2" Lead Free Double Check Valve Backflow Preventer Assembly, Quarter Turn Shutoff, Single Top Entry
Brand: Watts
SKU: WATT-0063235
Price: 1178.89 USD
Availability: InStock

WattsSKU: WATT-0063235

Price:

$1,178.89

Stock:

Only 1 unit left

Quantity:

Usually ships in 1–2 business days.

Questions? Call (404) 678-9908 or chat with us.

Need 10+ or a project quote? Request a quote · Pros: open a trade account

Ships from Seattle, WA · 30-day returns · Manufacturer warranty

⚠ WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Bypass	No
Connection Size	2"
Connection Type	Female Threaded
Material	Lead Free Bronze
Test Status	Testable
Type	Double Check Valve Assembly

Watts 0063235 is a 2" lead free double check valve backflow preventer assembly. It stops polluted water from backflowing into the potable supply through backsiphonage or backpressure, in line with national plumbing codes and water authority requirements.

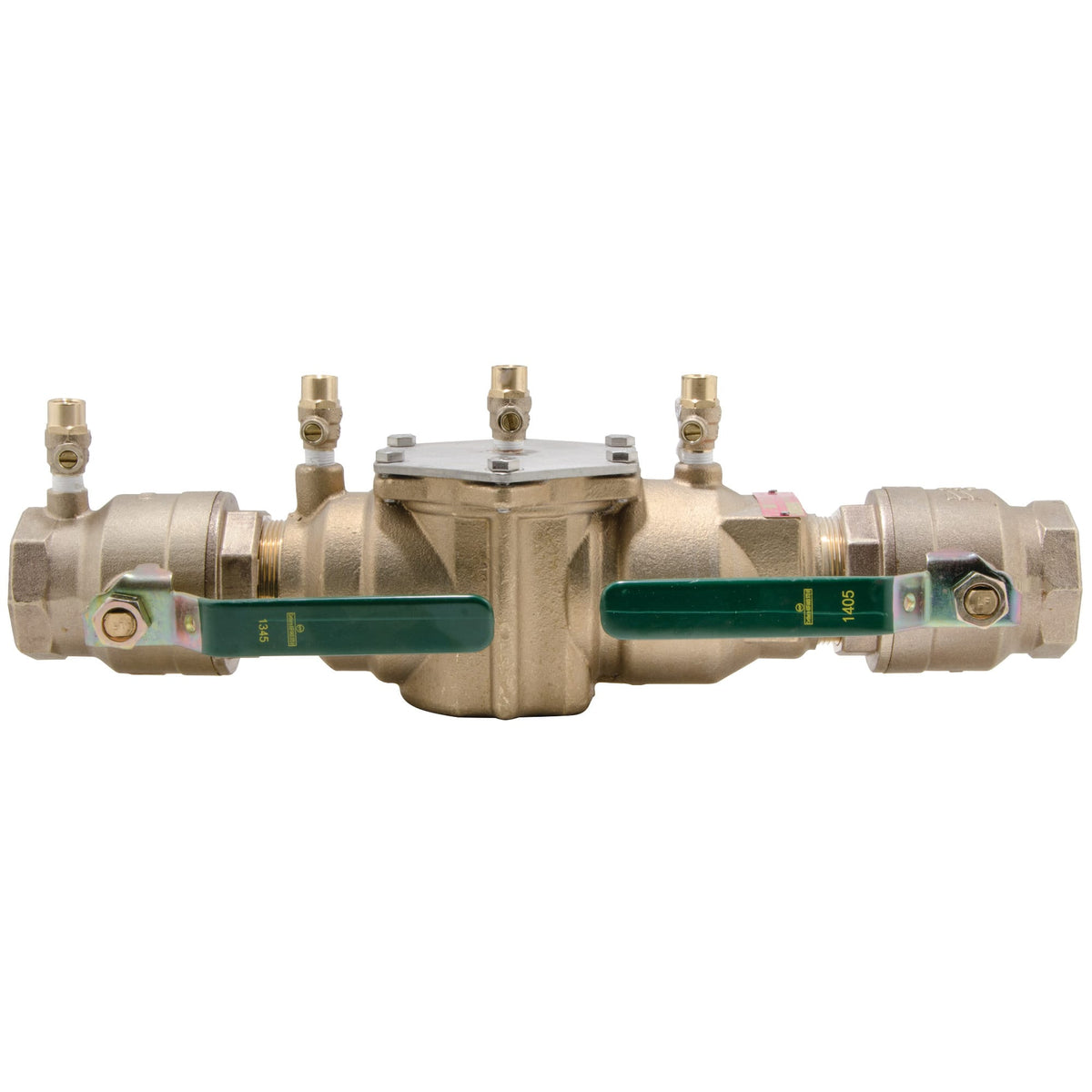

The compact modular design has a single top access cover for in-line repairs. The assembly has a lead free bronze body, NPT end connections, quarter turn ball valve shutoffs, top-mounted test cocks, two independent in-line positive seating check modules, captured springs, and replaceable check discs and seats.

It is meant for continuous pressure piping and for cross-connections identified as non-health hazards. Before ordering, confirm the hazard classification with your local water authority, since high-hazard connections need a different type of assembly, and confirm the 2" female threaded connections.
