| Connection Size | 3/8" |
| Connection Type | Compression Joint |
| Flow Rate | 0.25 to 2.25 GPM |
| Material | Lead Free Brass |
| Type | Thermostatic Mixing Valve |
Description

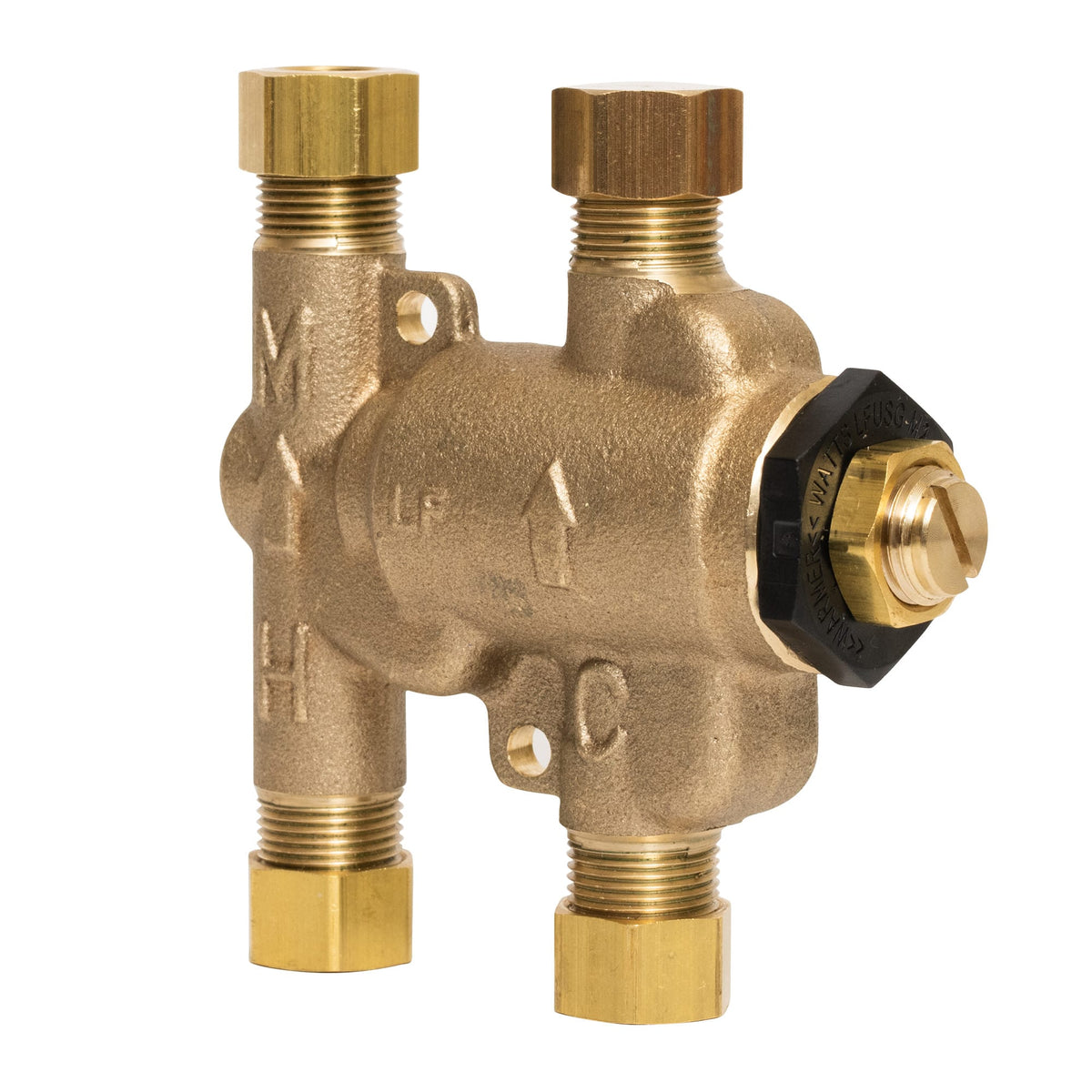

Watts 0204152 is a 3/8" Under Sink Guardian® lead free thermostatic mixing valve, model LFUSG-B-M3.
The manufacturer says it controls hot water temperature in kitchen and bath installations to minimize the potential for accidental scalding. It has a lead free brass body, 3/8" male compression fittings, check valves, an integral strainer and a tamper resistant locking cap, and the temperature is field adjustable between 80 and 120°F.
The maximum working pressure is 150 psi and the recommended maximum temperature is 110°F. Check the 3/8" compression connections and the intended use before ordering. The instruction manual and specification sheet are linked below.
Specifications
- Brand: Watts
- Manufacturer Part #: 0204152
- Connection Size: 3/8"
- Connection Type: Compression Joint
- Material: Lead Free Brass
- Type: Thermostatic Mixing Valve
- Temperature Adjustment: 80 to 120°F
- Maximum Working Pressure: 150 psi
- UPC: 098268520774
- Category: Mixing Valve - Point-of-Use
Documents
- Instruction Manual (PDF)
- Specification Sheet (PDF)
