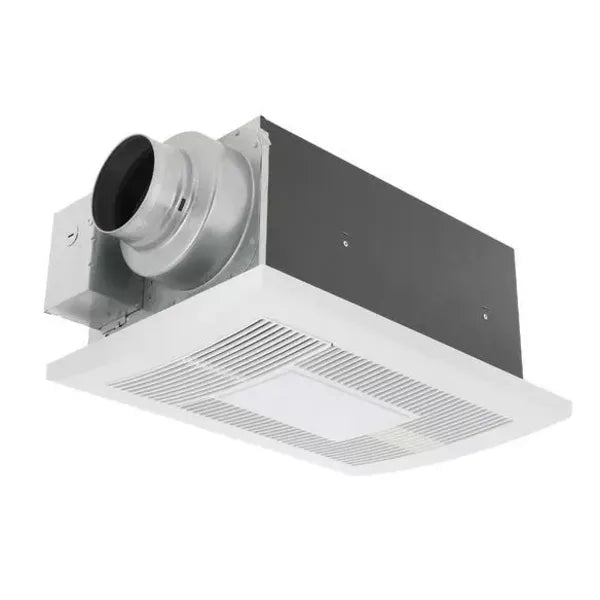

Panasonic FV-0511VHL1 WhisperWarm DC Fan/Heater/Light 50-80-110 CFM

The Panasonic FV-0511VHL1 WhisperWarm DC is a ceiling-mount bathroom ventilation fan with a 1600W heater and a dimmable LED light. The fan speed is manually selectable at 50, 80 or 110 CFM, and the ECM motor is rated for continuous run.

Key features

• Brushless ECM motor; speed increases automatically when it senses static pressure so the fan delivers its rated CFM
• 1600W self-limiting PTC heater with a circulation grille and built-in diffuser for directional heat throw
• 10W dimmable LED panel (3000K, 90 CRI, 750 lumens), ENERGY STAR 2.0 certified LED and JA-8 compliant for CA Title 24, plus a <1W LED night light
• Integrated dual 4" or 6" duct adapter with built-in backdraft damper
• 26-gauge zinc-aluminum-magnesium housing; suitable for ceilings insulated up to R60
• Articulating, expandable installation bracket up to 24"

Specifications

• Brand: Panasonic
• Manufacturer part number: FV-0511VHL1
• Airflow: 50 / 80 / 110 CFM selectable
• Noise (HVI, 0.1" w.g.): <0.3 / <0.3 / 0.7 sones
• Fan power (0.1" w.g.): 4.7 / 7.4 / 12.4 W
• Heater: 1600W PTC
• Light: 10W dimmable LED, 750 lumens, 3000K
• Duct size: 4" or 6"
• Power rating: 120V, 60 Hz; minimum 20 A dedicated circuit required
• Certifications: HVI certified; evaluated by UL to UL and cUL safety standards

Manufacturer's warranty

Panasonic lists 6 years on the ECM motor, 5 years on the LED and 3 years on all other parts.

Not intended for installation over a tub or shower enclosure. Electrical work must be done by a qualified electrician following the Panasonic installation instructions and local codes.
