| Application | Pilot Orifice |
| Used With | Q314, Q345, Q373, Q3450, Q3451, and Q3452 |
| Includes | BBR11 Orifice |
| Type of Gas | LP |
| Orifice | BBR11 (0.011 in.) |
Description

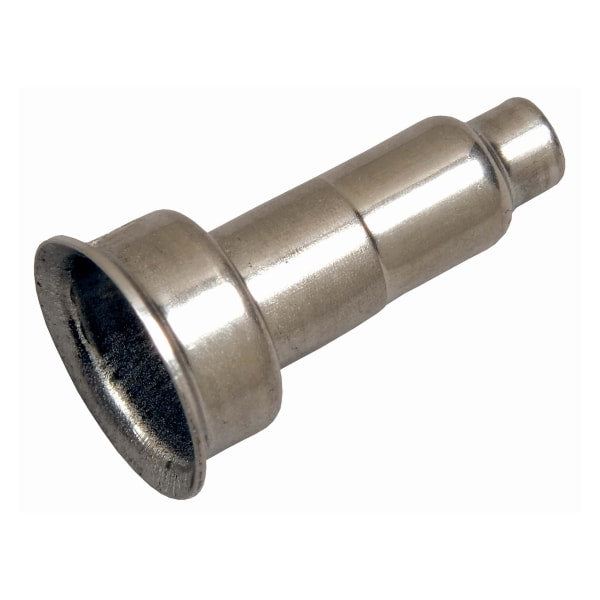

Pilot orifice from Resideo (Honeywell Home), 0.011 in, for LP, stamped BBR11, part number 390686-36/U.
The pilot orifice meters the gas to the pilot flame. It is the smallest hole in the appliance and the one most easily blocked, and it is sized for one fuel only.
Getting it wrong is not subtle. An LP orifice on natural gas starves the pilot and the thermocouple cools; a natural gas orifice on LP gives a large, lifting, sooting flame. The stamped code is what identifies it once it is out of the packet.
- Brand: Resideo (Honeywell Home)
- Manufacturer Part #: 390686-36/U
- Type: Pilot orifice
- Orifice size: 0.011 in
- Gas: Lp
- Stamped code: BBR11
- UPC: 085267028561
- Category: Ignition Components
