0034ee Series - VM3450-HD1-RC2W00 - Cast Iron, ECM High Efficiency. Variable Speed, Flanged, Rotated, Analog, 115/208/230 50/60 Hz
Taco Comfort Solutions

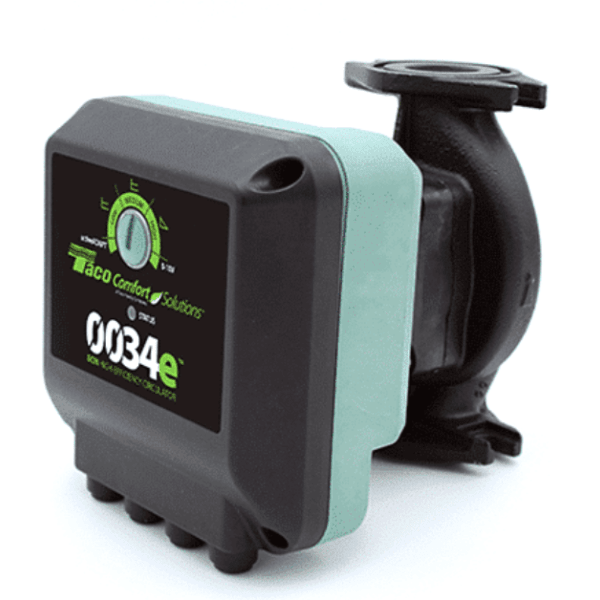

Taco Comfort Solutions 0034ee Series - VM3450-HD1-RC2W00 - Cast Iron, ECM High Efficiency. Variable Speed, Flanged, Rotated, Analog, 115/208/230

Item #
TACO-0034E-F2
Mfr. part #
0034e-F2

Key specifications
  • MaterialCast Iron
  • Volts115 V
  • Flow Rate RangeOver 40 gpm
  • Maximum Flow Rate52 gpm
  • Working Pressure125 psi
View all specifications
$1,241.61
Each
In stock – 6 available
Estimated delivery: –

Usually ships in 1–2 business days.

Pricing a job? Get a written quote →Open a trade account

  • Free shipping on orders $99+
  • 30-day returns on unused items. Details
  • Secure checkout

Shipping details

  • Shipping weight: 10.5 lb
  • Box size: 9.35 × 9.05 × 8.25 in
Need help with this part?
(404) 678-9908 Chat with a product specialist Request a quote
BrandTaco Comfort Solutions
Manufacturer part #0034e-F2
Flow Rate RangeOver 40 gpm
MaterialCast Iron
Maximum Flow Rate52 gpm
Working Pressure125 psi
Head Pressure RangeOver 30' of Head
Maximum Head Pressure34'
Volts115 V

Taco Comfort Solutions 0034E-F2 is the 0034ee Series - VM3450-HD1-RC2W00 - Cast Iron, ECM High Efficiency. Variable Speed, Flanged, Rotated, Analog, 115/208/230.

Use it to circulate water through hydronic heating systems, moving heat from the boiler to baseboard, radiant floor, panel radiator or fan coil zones. It belongs to the Taco 0034ee family. Its ECM motor adjusts output to system demand, which lowers electrical consumption compared with a fixed speed PSC circulator.

When replacing or specifying a circulator, match the flange or union connection to the existing piping, confirm the electrical supply (115/208/230), and check the pump curve against the zone's required flow and head. Cast iron bodies are intended for closed systems only.

Specifications

  • Brand: Taco Comfort Solutions
  • Manufacturer Part #: 0034E-F2
  • Material: Cast Iron
  • Connection: Flanged
  • Flange Orientation: Rotated
  • Electrical: 115/208/230
  • Motor: ECM high efficiency
  • Speed: Variable speed
  • Control: Analog
  • Model Code: VM3450-HD1-RC2W00
  • Category: Variable Speed Circulators

See also: Variable Speed Circulators, Circulator Pumps, Taco Comfort Solutions, Heating

0034e ECM High-Efficiency Circulator (PDF)0034ePlus ECM High-Efficiency Circulator (PDF)0034e ECM High-Efficiency Circulator (PDF)0034ePlus ECM High-Efficiency Circulator (PDF)

Questions about fit or compatibility? Ask our team. We usually reply within one business day.

$1,241.61
In stock
