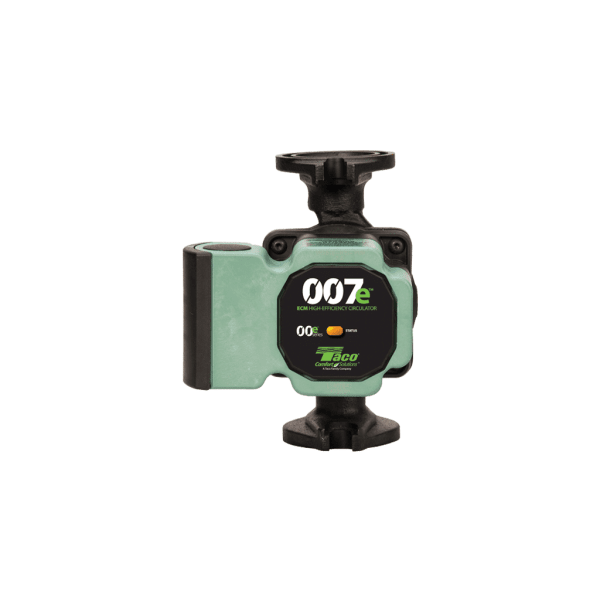

Taco Comfort Solutions 007e-2F2 007ee Series - VB1016-HY2-FC2A00 - Cast Iron, ECM High Efficiency. Variable Speed, Flanged, 2-bolt, 115V/60/1

Taco Comfort Solutions 007E-2F2 is the 007ee Series - VB1016-HY2-FC2A00 - Cast Iron, ECM High Efficiency. Variable Speed, Flanged, 2-bolt, 115V/60/1.

Use it to circulate water through hydronic heating systems, moving heat from the boiler to baseboard, radiant floor, panel radiator or fan coil zones. It belongs to the Taco 007ee family, used in residential and light commercial hydronic work. Its ECM motor adjusts output to system demand, which lowers electrical consumption compared with a fixed speed PSC circulator.

When replacing or specifying a circulator, match the flange or union connection to the existing piping, confirm the electrical supply (115V/60/1), and check the pump curve against the zone's required flow and head. Cast iron bodies are intended for closed systems only.

Specifications

• Brand: Taco Comfort Solutions
• Manufacturer Part #: 007E-2F2
• Material: Cast Iron
• Connection: Flanged
• Flange Type: 2-bolt
• Electrical: 115V/60/1
• Motor: ECM high efficiency
• Speed: Variable speed
• Model Code: VB1016-HY2-FC2A00
• Category: Variable Speed Circulators

See also: Variable Speed Circulators, Circulator Pumps, Taco Comfort Solutions, Heating

Questions about fit or compatibility? Ask our team. We usually reply within one business day.
