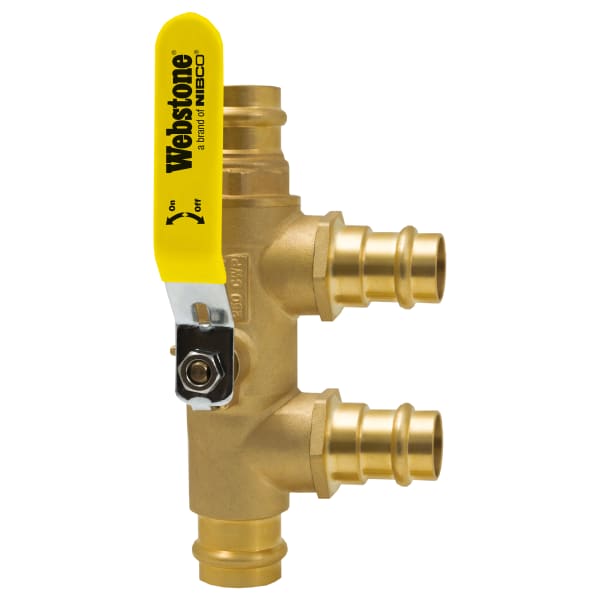

1-1/4" Press Primary Secondary Loop Purge Tee with Full Port Ball Valves
Webstone

Webstone H-88655 1-1/4" Press Primary Secondary Loop Purge Tee with Full Port Ball Valves

Item #
WEBS-H-88655
Mfr. part #
H-88655
UPC
018394013094

Key specifications
  • TypeBall Valve - Purge Tee
  • Connection size1-1/4"
  • ConnectionPress
  • MaterialForged Brass
  • Pressure Rating250 PSI CWP Max
View all specifications
$334.29
Each
In stock
Estimated delivery: –

Usually ships in 1–2 business days.

  • Free shipping on orders $99+
  • 30-day returns on unused items. Details
  • Secure checkout
Need help with this part?
(404) 678-9908 Chat with a product specialist Request a quote
BrandWebstone
Manufacturer part #H-88655
ApplicationHeating or Other Non-Potable Plumbing
Connection Size1-1/4"
Connection TypePress
MaterialForged Brass
Pressure Rating250 PSI CWP Max
Temperature Rating (Max)250 F Max
TypeBall Valve - Purge Tee
UPC018394013094

The 1-1/4" Press Primary Secondary Loop Purge Tee with Full Port Ball Valves by Webstone is part of our specialty ball valves selection.

  • Brand: Webstone
  • Manufacturer Part #: H-88655
  • UPC: 018394013094
  • Category: Specialty Ball Valves

Features

  • Primary/secondary loop purge tee: 1-1/4" press primary with 1-1/4" press side outlets (secondary)
  • Places a full-port ball valve between closely spaced tees, for hydraulic separation and power purging of loops in hydronic heating systems
  • Forged brass body, end cap, stem and seat retainer; hard chrome plated brass ball; PTFE seats and stem seal
  • Blowout-proof stem and adjustable packing gland
  • Reversible steel handle with vinyl jacket
  • Rated 250 psi CWP, 250°F max
  • Dimensions per Webstone spec sheet: C 3.11 in, D 8.62 in, E 2.95 in
